MPC8313E-RDBC
-
PowerQUICC II Pro MPC8313E Reference Development Board rev2.2.
MPC8313E-RDB参考平台
MPC8313E-RDB 接收通知

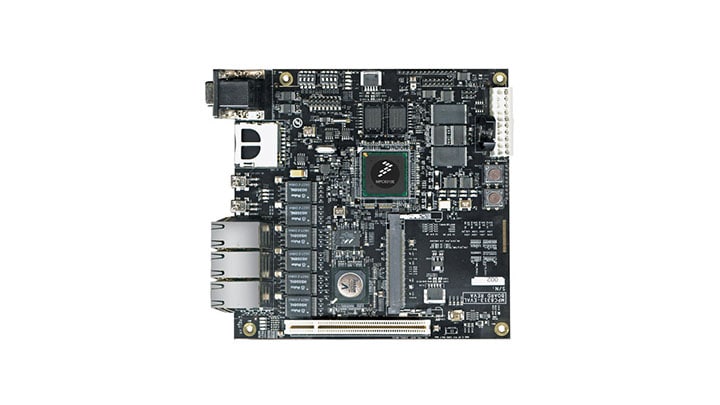

The NXP® MPC8313E-RDB reference platform is ideal for hardware and software development for cost-optimized networking applications.
- 高性价比的MPC8313E通信处理器系列满足了小型办公室/家庭办公室(SOHO)、打印、IP服务和工业控制等应用的需求。

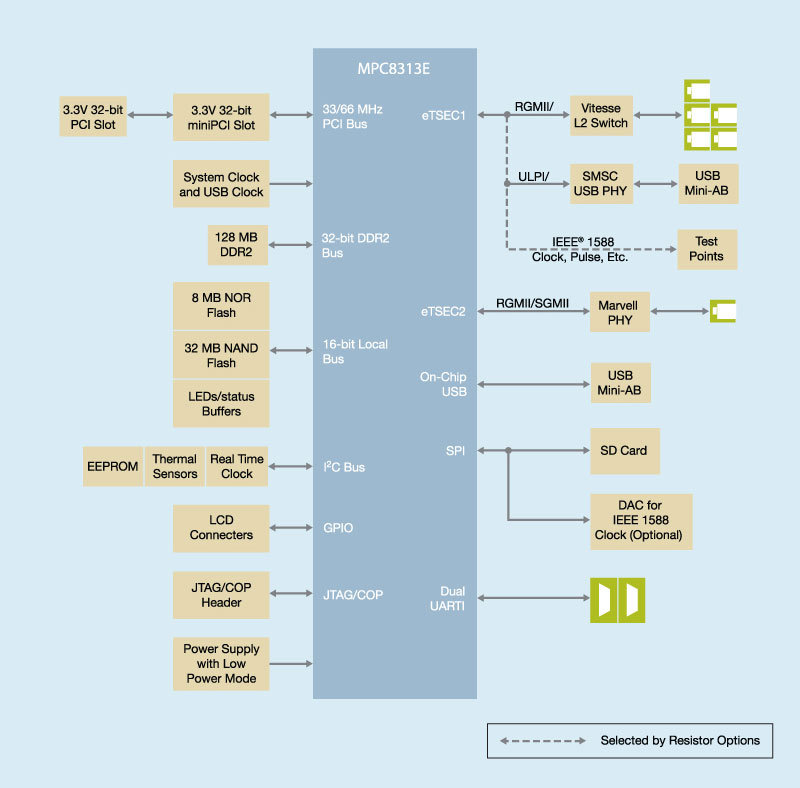

- It leverages NXP’s highly integrated MPC8313E processor built on Power Architecture® technology and leading-edge external components: a five-port Gigabit Ethernet switch, USB port, one PCI slot, one MiniPCI slot and one SD card memory slot
- MPC8313E的高集成度有助于降低总体系统成本、提高性能并简化电路板设计
产品详情
支持的器件
处理器和微控制器
PowerQUICC II Pro (MPC83xx)
- MPC8313E: Low-Power PowerQUICC® II Pro Processor with DDR2, PCI, 1 GB Ethernet, Security, USB
特征
处理器
- NXP® MPC8313E running at 333/333 MHz (CPU/DDR2)
存储器
- 128 MB无缓冲DDR2 SDRAM分立式器件
- 8 MB闪存单芯片存储器
- 32 MB NAND闪存
- 256 kB M24256 serial EEPROM
- SD连接器，用于在SPI模式下连接SD存储卡
数据连接
- LCD连接器，采用通用IO结构
- ATX电源连接器
- 用于调试的JTAG/COP
接口
- 10/100/1000 Base-T以太网端口：
- eTSEC1, RGMII interface: five 10/100/1000 Base-T RJ-45 interfaces using Vitesse™ VSC7385 L2 switch
- eTSEC2, selectable RGMII, or SGMII interface: one 10/100/1000 Base-T RJ-45 interface using Mavell™ 88E1111 PHY
- USB 2.0端口：
- High-speed host/device USB interface: selectable on-chip PHY or external ULPI PHY interface by SMSC USB3300 USB PHY
- High-speed host/device USB interface: selectable on-chip PHY or external ULPI PHY interface by SMSC USB3300 USB PHY
- PCI：32位PCI接口，最高运行频率66 MHz
- 一个32位3.3 V PCI插槽，与PCI总线连接
- One 32-bit 3.3 V Mini PCI slot connected to PCI bus
- 双UART端口：
- DUART接口：支持两个速率高达115200bps的UART，用于控制台显示
