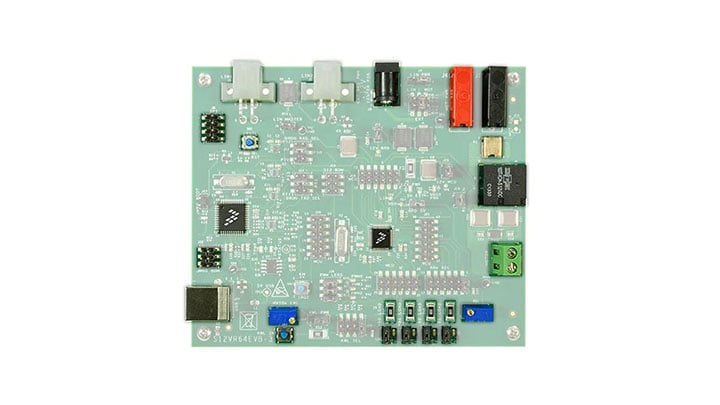

S12VR评估板

S12VR64EVB3 正常供应

滚动图片以放大

S12VR系列采用LL18UHV工艺，将NVM、数字逻辑电路和高电压模拟组件组合成一个单芯片解决方案。这些模拟组件包括一个汽车稳压器、LIN物理层、低边驱动、高边驱动和输入。

S12VR64评估板允许接入所有引脚。提供板载继电器，用于评估继电器驱动器的运行。采用外部高电流电源可支持高达13A的12V电机负载。

S12VR64EVB3包括一个内置USB链路，可支持调试，无需外部调试器。提供CodeWarrior®开发工具套件和其他S12开发软件支持，实现快速应用开发。

产品详情

支持的器件

处理器和微控制器

S12 MagniV混合信号MCU

  • S12VR: S12VR混合信号MCU，适用于基于继电器的汽车和工业电机控制应用

特征

连接

  • 2 LIN连接器
  • 12 V墙插式连接器
  • USB调试连接
  • 额外电机驱动插口
  • 内置OSBDM电路

购买选项

S12VR64EVB3-Image

点击展开

  • S12VR64EVB3
    正常供应

  • Evaluation board for MagniV S12VR-family.

    • S12VR64EVB3
    • S12VR64EVB3 DVD-ROM (包括CodeWarrior软件)
    • 线缆：USB线缆和LIN线缆
    • 快速入门指南
    • 12V电源
  • $519.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
