面向9S12XHY256的演示板

DEMO9S12XHY256 正常供应

滚动图片以放大

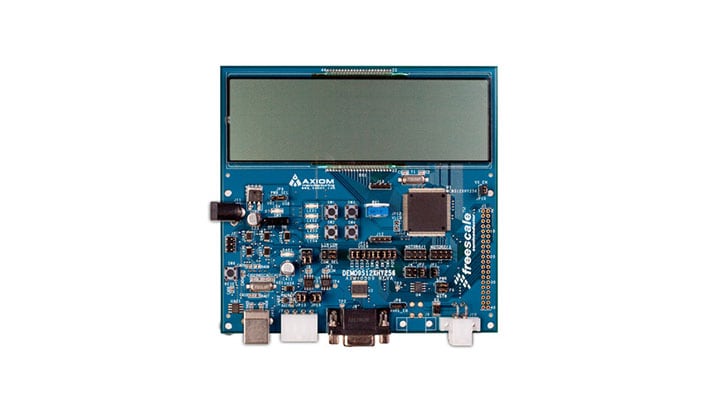

DEMO9S12XHY256是恩智浦 MC9S12XHY256 MCU的演示板。

借助集成式USB-BDM、样本软件工具和示例，可以快速方便地完成应用开发。另外还提供了一个选用的BDM_PORT端口让您使用BDM_PORT线缆。一个40针连接器可让您访问目标MCU上的大多数IO信号。

产品详情

支持的器件

处理器和微控制器

16位S12和S12X MCU

  • S12XHY: 带CAN的S12XHY可扩展仪表板控制器(MCU)

特征

数据连接

  • 集成式USB-BDM。支持外部BDM线缆的BDM_PORT插头
  • MCU_PORT引脚接头，用于访问MCU IO信号
  • 40针MCU I/O引脚接头
  • Barrel Connector
  • USB/DB9/CAN cable/LIN cable Connector

电源管理

  • 板载+5V稳压器
  • 可以选择从USB-BDM或MCU_PORT连接器供电
  • Power Input Selection Jumpers, select from USB-BDM, onboard regulator, Connector J1. 可以选择通过接头J1输出电源
  • 用户选项跳线，用于断开外设

显示器

  • 板载4x40定制LCD显示屏

组件

  • 2 ea. 高速CAN物理层收发器
  • 增强型LIN物理层收发器
  • RS-232串行数据物理层收发器
  • 5 Push Switches, 6 LED Indicators, 5K ohm POT w /LP Filter

购买选项

DEMO9S12XHY256-Image

点击展开

  • DEMO9S12XHY256
    正常供应

  • DEMO BOARD FOR 9S12XHY256 FAMILY.

    • DEMO9S12XHY256演示板
    • DEMO9S12XHY256用户指南
    • “快速入门指南”手册
    • 一根USB线缆
    • 一根RS232串行线缆
    • CodeWarriorTM Development Studio专用版CD-ROM
    • AXIOM 68HC12开发系统支持CD-ROM
    • 保修卡
    • 技术信息中心手册
    • 快速入门DVD
  • 数量为 1
从分销商处购买
