面向16位MC9S12XF512的评估板

EVB9S12XF512E 正常供应

滚动图片以放大

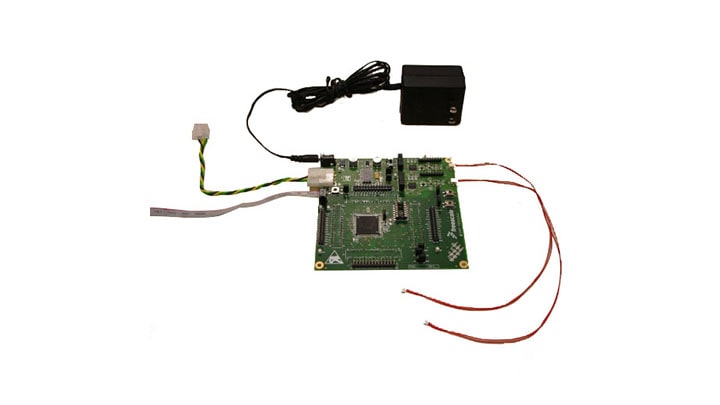

EVB9S12XF512E是面向恩智浦16位MC9S12XF512 MCU的功能完备的即用型评估系统，具有XGATE协处理器、512 KB Flash存储器和嵌入式FlexRay™控制器。EVB9S12XF512充分利用CodeWarrior®工具套件和恩智浦USB-BDM接口，帮助您快速、简单地执行开发流程。

建立新的FlexRay网络？

请考虑使用S12XFSTARTERKITE。它包含两个EVB9S12XF512E电路板，以及在一小时内启动和运行FlexRay网络所需的一切硬件和工具。

产品详情

支持的器件

处理器和微控制器

16位S12和S12X MCU

  • S12XF: S12XF汽车和工业微控制器(MCU)

特征

微控制器

  • S12XF512MLM MCU
  • Selectable 4 MHz oscillator module (socketed) or a 4 MHz crystal

数据连接

  • 两个恩智浦TJA1080 FlexRay收发器
  • 1个恩智浦MC33742系统基础芯片用于高速CAN通信
  • BDM连接器，用于外部在线调试
  • 支持所有MCU信号的接头连接器
  • One CAN connector with transceiver integrated in the MC33742
  • 两个 FlexRay连接器(带2个收发器)

组件

  • 8个用户LED
  • Two push-buttons
  • Reset push button for the MCU and/or the SBC

购买选项

EVB9S12XF512E-Image

点击展开

  • EVB9S12XF512E
    正常供应

  • EVALUATION BOARD FOR THE S12XF FAMILY.

  • 数量为 1
