S12VR32评估板

S12VR32EVB

滚动图片以放大

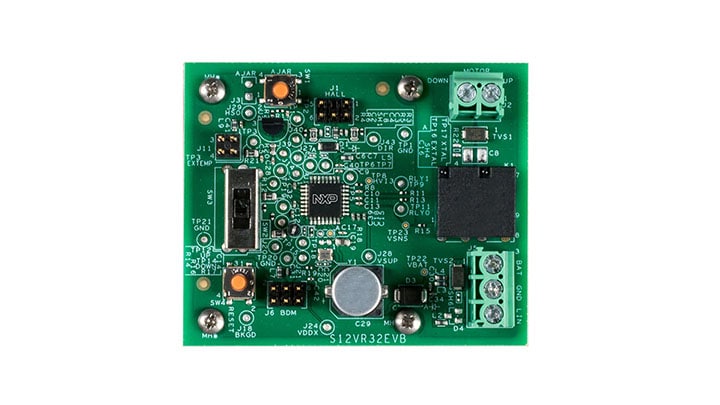

S12VR32EVB是一款面向S12 MagniV® S12VR32 16位MCU的开发板，适用于基于电机控制中继器的应用。S12VR32集S12 CPU、LIN物理接口、5V稳压器系统于一身，提供用于控制中继器的微控制器和低边驱动器。

S12VR32EVB是一款超低成本开发平台，包含一个中继器、霍尔传感器接口、外部16 MHz振荡器、开关按钮，支持通过测试点访问所有引脚，还包含一个板载开源BDM。

产品详情

特征

微控制器

  • MC9S12VR32 MCU采用32引脚LQFP封装
  • BDM接头
  • 霍尔传感器接头
    • 外部温度传感器接头
    • LIN输出接头
    • 电机控制接头

购买选项

S12VR32EVB-Image

点击展开

  • S12VR32EVB
    正常供应

  • S12VR32EVB.

    • S12VR32评估板
  • $125.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
