MC33664ATL隔离网络高速收发器评估板

FRDM33664BEVB
正常供应

滚动图片以放大

该评估板采用MC33664ATL。MC33664ATL是一款收发器物理层变压器驱动器，旨在帮助您将微控制器连接到高速隔离通信网络。MCU SPI数据直接转换为脉冲位，并传输至总线网络。

从设备响应消息采用相同的结构将脉冲位信息发送至MC33664ATL。这些信息随后会转换为SPI位流，并发送到MCU。

该EVB与MC3377x电池控制器配套工作。MC3377x是汽车锂电池控制器IC，适用于混合动力(HEV)和电动汽车(EV)，以及储能系统(ESS)和不可中断电源(UPS)等工业应用。

支持的器件

电源管理

电池通信IC

  • MC33664: 隔离网络高速收发器

电芯控制器

  • MC33772B: 6通道锂离子电池控制器IC
  • MC33771B: 14通道锂离子电池控制器IC

特征

连接

  • 2.0 Mbit/s隔离网络通信速率
  • 双SPI架构，用于消息确认

能源管理

  • 稳定可靠的传导和辐射耐受性，带唤醒功能
  • 3.3 V和5.0 V兼容逻辑阈值
  • 低睡眠模式电流，带自动总线唤醒功能
  • 超低辐射排放

支持

  • 如需获取文档和设计文件，请访问 docstore.nxp.com（需要NDA）

购买选项

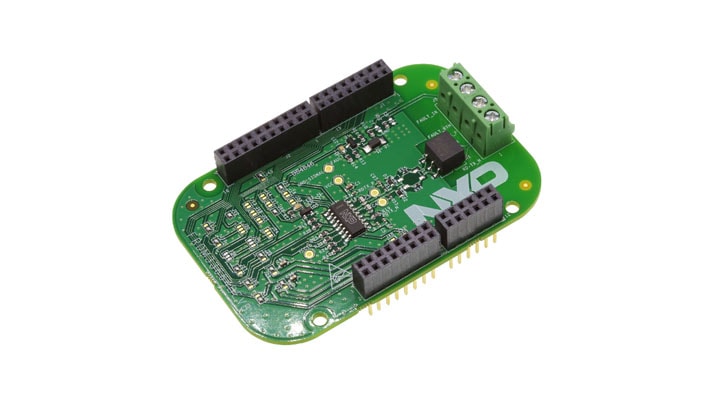

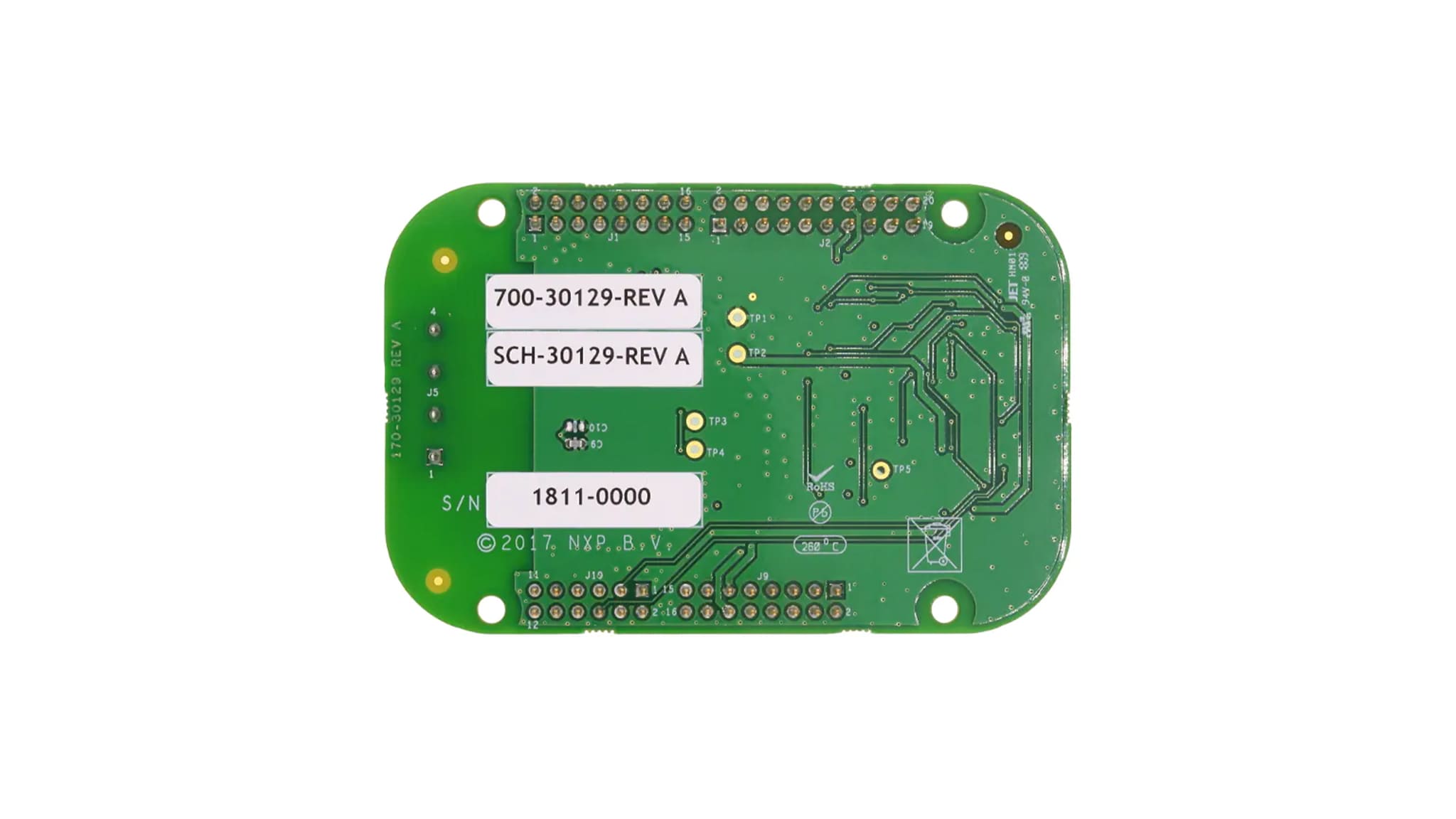

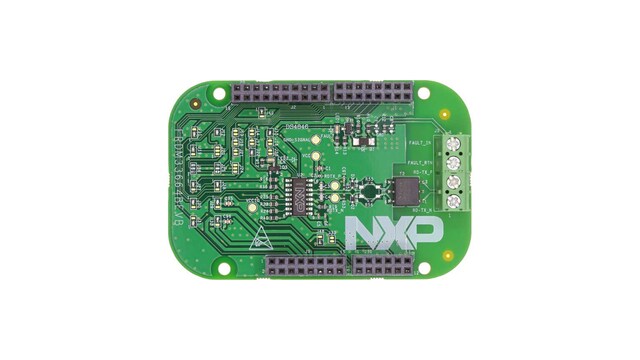

FRDM33664BEVB-Image

点击展开

  • FRDM33664BEVB
    正常供应

  • Freedom Expansion board,- MC33664,Transformer Physical Layer.

  • FRDM33664BEVB开发套件内容包含：
    • 组装和测试好的评估板/模块，放在防静电袋中。
    • 快速入门指南
  • $157.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
