面向Arduino®引脚输出的 NTAG I2C +套件

OM23221ARD 正常供应

滚动图片以放大

恩智浦NTAG I²C+套件适用于任何兼容Arduino®接头的板，包括LPCXpresso、Kinetis和i.MX板。该套件的目的是在嵌入式电子系统中模拟采用NTAG I²C +标签芯片。

产品详情

支持的器件

RFID

NFC互联标签

  • NTAG213F_216F: NTAG213F, NTAG216F：符合NFC Forum Type 2 Tag的IC，具有144/888 B用户存储器和现场检测

特征

无线

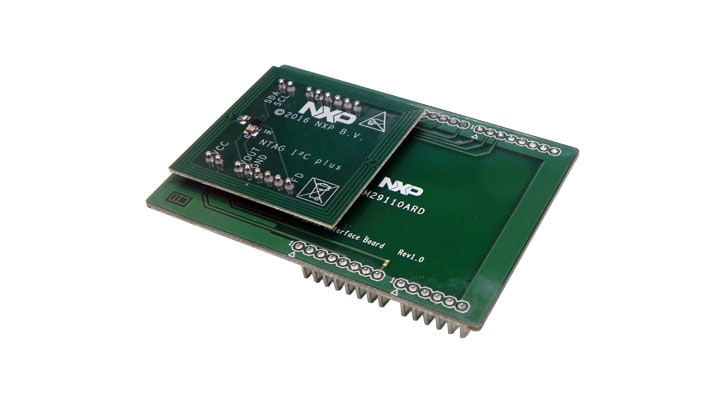

    NTAG I2C +天线板安装在带兼容Arduino®接头的适配器板上。

  • 可与带类似Arduino®引脚输出的任何器件连接
    • 恩智浦Freedom板系列(Kinetis)
    • UDOO Neo (i.MX)

软件支持

  • 基于恩智浦KW41Z的Bluetooth配对示例
  • Explorer套件上的项目已移至Kinetis平台(例如透传机制)
  • 适用于NTAG I2C +的库，通过面向FRDM-KW41Z的MCUXpresso提供

购买选项

OM23221ARD-Image

点击展开

  • OM23221ARD
    正常供应

  • NTAG I²C plus Kit for Arduino® pinout.

  • 数量为 1
从分销商处购买
