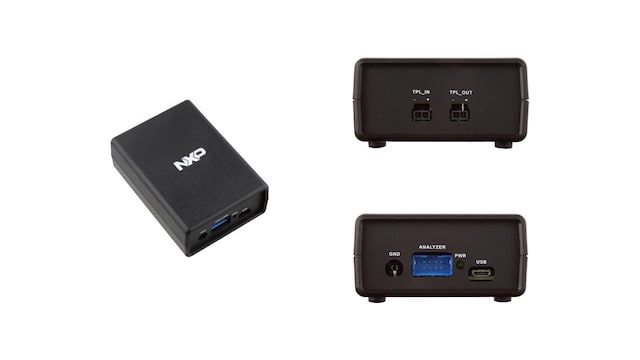

变压器物理层 (TPL)嗅探器工具

KIT-TPLSNIFEVB

滚动图片以放大

支持的器件

电源管理

电芯控制器

电池通信IC

特征

Power and Data Connections

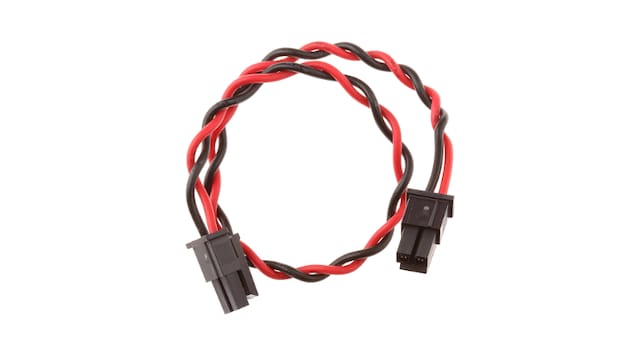

  • Connection to any point of the monitored TPL bus

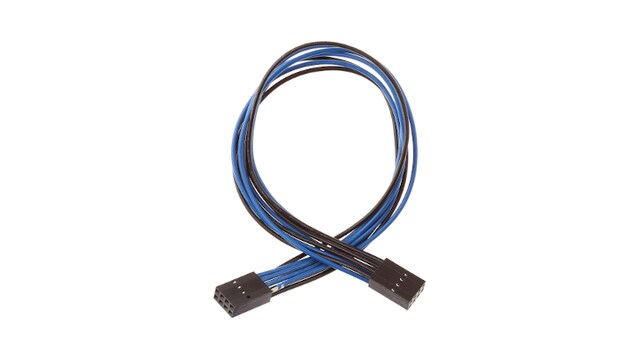

  • Logic analyzer connection with a provided cable pin-to-pin compatible with the Saleae Logic 8 and Logic Pro 8/16 analyzer series
  • Powered through a USB connector by a 5 V source, typically a USB power bank or a USB cable connected to a computer

Additional Features

  • Minimal loading of the TPL line
  • Internal galvanic isolation between the TPL and rest of the circuits
  • Integrated keep-alive function to avoid power bank self shut-off

购买选项

KIT-TPLSNIFEVB-Image

点击展开

  • KIT-TPLSNIFEVB

  • Battery Management System (BMS) Communication Monitoring and Debugging Toolkit.

  • CNY1,387.66
  • 数量为 1
    • 供货情况: 有货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
从恩智浦处购买从分销商处购买

文档

快速参考 文档类别.

3 文件

设计资源

设计文件

2 设计文件

软件

1 软件文件

  • 调试及视觉化工具

    Automotive SW - BMS Tools - TPL Decoder

注意: 推荐在电脑端下载软件,体验更佳。
