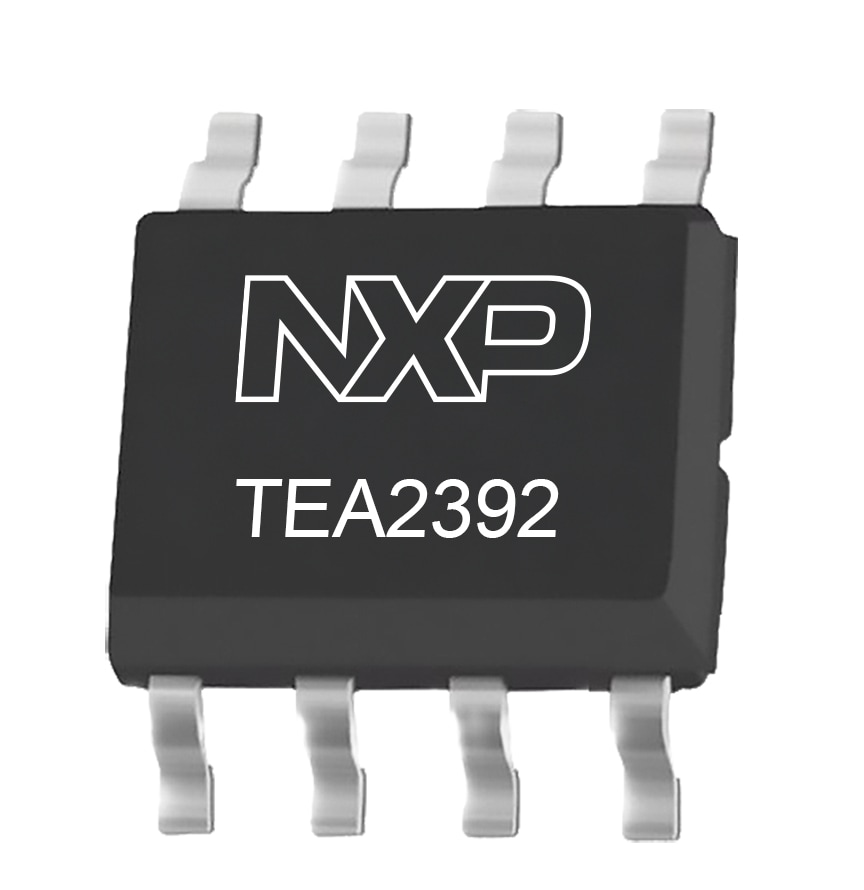

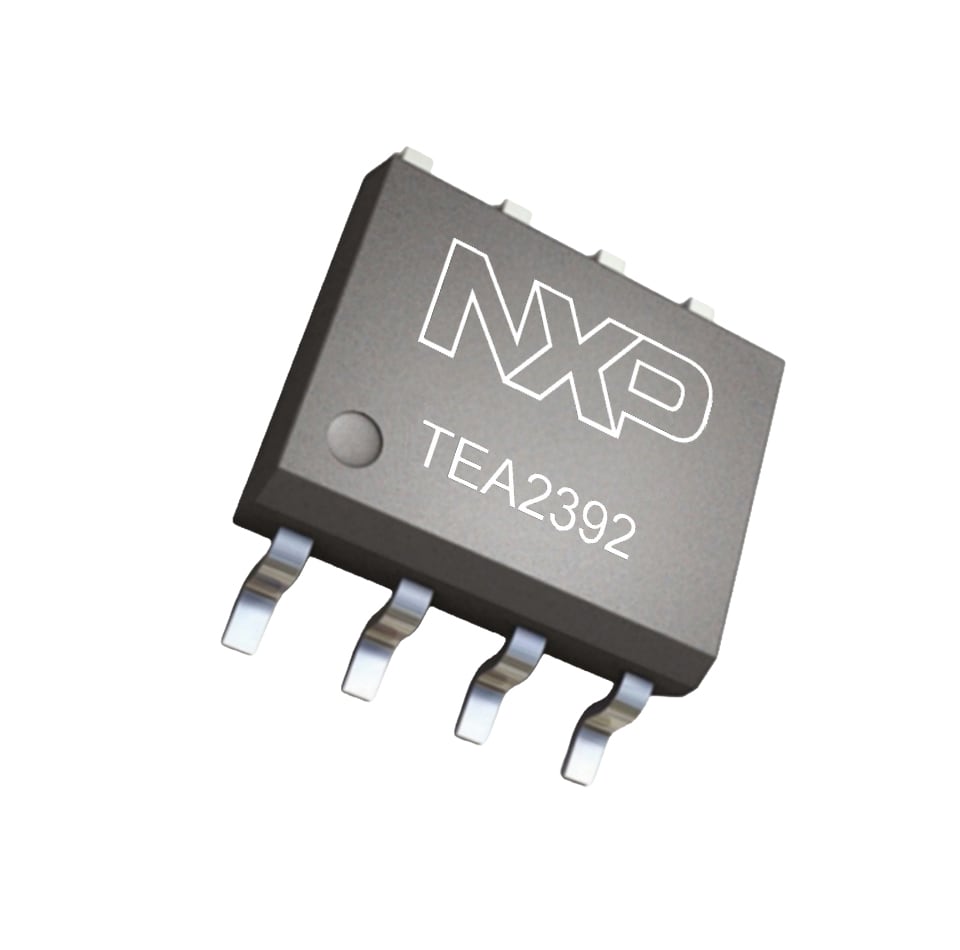

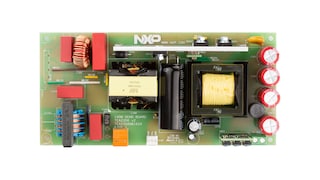

TEA2392 GreenChip Synchronous Rectifier Controller
The TEA2392 is a member of a new generation of synchronous rectifier (SR) controller ICs for switched mode power supplies. It includes an adaptive gate drive for maximum efficiency at any load.
The TEA2392 is a dedicated controller IC for synchronous rectification on the secondary side of asymmetrical half-bridge (AHB) and standard flyback converters. It incorporates the sensing stage and driver stage for driving the SR MOSFET, which is rectifying the output of the secondary transformer winding.
This device is fabricated in a silicon-on-insulator (SOI) process and optimized for efficient operation with very low-ohmic MOSFETs and relatively high output voltages.
Features
Efficiency features
- Adaptive gate drive
- Supply current in energy save operation of 80μA
- Regulation level of -29 mV for driving low-ohmic MOSFETs
Application features
- Drain sense voltage to 200 V
- Synchronous rectification for AHB and flyback
Control features
- SR control without minimum on-time
