有源桥式整流器控制器

TEA2206T
正常供应

滚动图片以放大

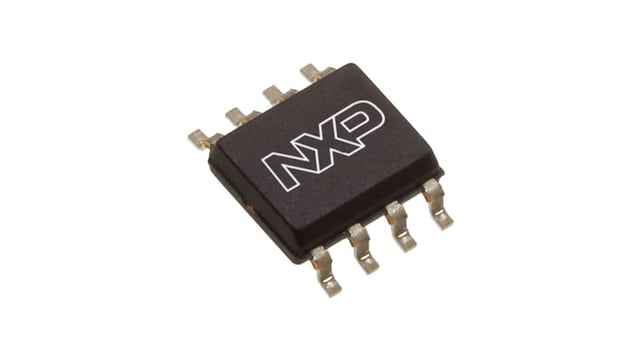

TEA2206T是一种有源桥式整流器控制器，适用于采用MOSFET代替传统二极管桥中的两个低边二极管。

将TEA2206T与低电阻高压外部MOSFET配合使用，可显著提高功率转换器的效率，因为典型的整流二极管正向传导损耗降低了50%。在90V（AC）电源电压下，效率可提高约0.7%。

TEA2206T采用硅绝缘（SOI）工艺制成。

如需了解更多信息和样品供货情况，请联系当地的销售机构。

框图

TEA2206T的结构框图

TEA2206T Block Diagram
获取框图PDF

特性

效率特性

  • 降低了二极管整流器桥的正向传导损耗
  • IC功耗极低（2mW）

应用特性

  • 直接驱动两个整流器MOSFET
  • 外部零件数量很少
  • 集成X电容放电功能（2mA）
  • 自供电
  • SO8封装

控制特性

  • 欠压锁定
  • 所有外部功率MOSFET的漏/源极过压保护
  • 所有外部功率MOSFET启动时的栅极下拉电流

产品长期供货计划

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
