Name: LPC82X 基于Arm CortexM0内核的低成本微控制器MCU
Availability: InStock

产品
处理器和微控制器
Arm微控制器
通用MCU
LPC800 Arm Cortex-M0+
LPC82X: 基于Arm® Cortex®-M0+内核的低成本微控制器(MCU)

与LPC81x MCU系列相比，LPC82x MCU系列提供了更高的集成度，具有更大的存储器空间、双倍的最大闪存和SRAM大小、一个18通道DMA，并增加了更多的I2C串行接口和一个12位1.2Msps ADC。该系列可提供三个精选外设，以方便过渡到32位空间。开关矩阵可以让设计人员相应灵活地排列引脚，简化PCB上的组件布线。本系列产品的另一个功能就是使用了SCTimer，可通过配置生成各种定时或PWM波形，而无需CPU干预。为简化串行通信要求，可配置模式匹配引擎，以在8个引脚上生成用户可配置的布尔运算的中断。LPC800系列在各种子系列和封装中使用同样的关键引脚输出，客户可以根据需求变化轻松地交换、扩大或缩小封装和子系列。

该设备由恩智浦MCUXpresso软件和工具提供全面支持，这是一套针对Kinetis、LPC和i.MX RT微控制器的综合全面的免费软件开发工具。MCUXpresso SDK还包括Keil MDK和IAR EWARM的项目文件。

数据手册

应用笔记

产品详情

框图

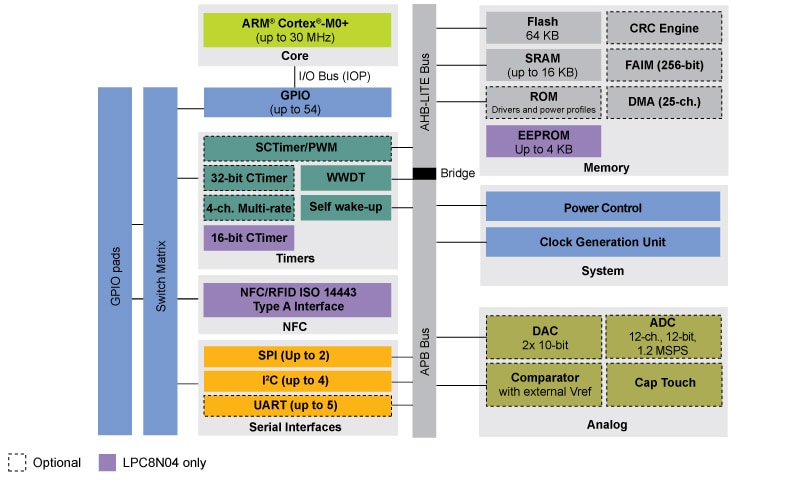

LPC800 Series MCU Block Diagram

获取框图PDF

特征

传感器网关
NFC、BTLE、Zigbee或WiFi等无线协议的通信接口
人机接口(HMI)任务，如触摸、手势和滑屏
电池供电设备
空间受限的设计
简单的协议桥接
替换8/16位应用
由MCUXpresso SDK、IDE和配置工具提供支持
