MQX™ Real-Time TCP/IP Communication Suite (RTCS) – Now with IPv6
The Real-Time TCP/IP Communication Suite (RTCS) provides IP networking for embedded devices. NXP® MQX RTCS provides a rich assortment of TCP/IP networking application protocols and uses the NXP MQX RTOS drivers for Ethernet and serial connectivity. RTCS is tightly integrated with the NXP MQX RTOS and the NXP MQX File System (MFS). RTCS is implemented in ANSI C, and full source code is provided. It is re-entrant and is responsive to the demands of real-time systems. The RTCS supports any number of hardware interfaces and any number of IP addresses on each hardware interface.
RTCS can be optionally extended to add IPv6 protocol support. Get IPv6 for RTCS to enable dual stack (IPv4 + IPv6) as well as single stack (IPv6) operation.
Key Benefits
Designed for Embedded Applications
- Specifically designed for adding TCP/IP connectivity to embedded systems
- Provides fully compliant feature set of networking stacks and configurable enough to fit into the small memory confines of an embedded devices
- Tightly integrated with NXP MQX RTOS™ device drivers for Ethernet and other access layers
IPv6 Ready
- Optional add-on available which extends the TCP/IP stack to support a suite of IPv6 protocols
- IPv6 Ready (Phase-2) Core-Protocols Certified
- Supports dual stack (IPv4 + IPv6) or single stack (IPv6) operation
- Get more information about IPv6 for RTCS
Small Configurable Memory Footprint
- Implemented as a C library
- Allows the features and protocols used by the application to be included in the image
- Can be configured to take as little as 30Kb of ROM
Rich Protocol Support
- Provided with a large number of standard protocols
- One product allows real TCP/IP applications without the need to acquire other application-level protocols

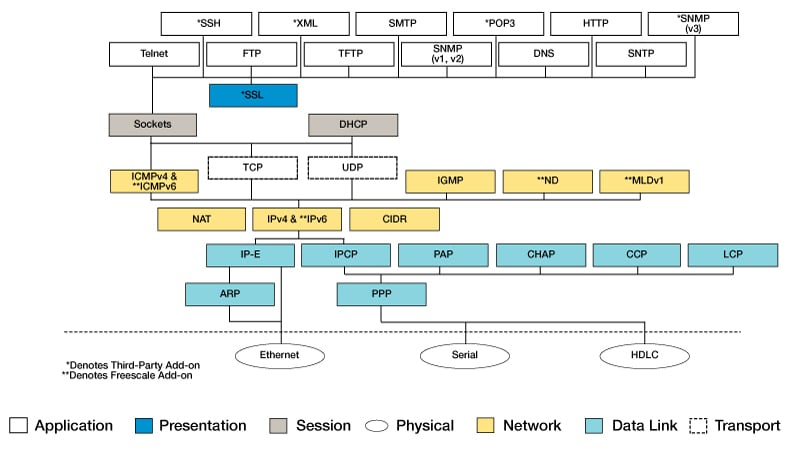

- RTCS provides application layer protocols but is a complete OSI model solution that spans data link to application layer standard protocols
Advanced Networking Protocols for RTCS
- RTCS can be extended to support additional industry-standard protocols with other products from Embedded Access Inc. including: Security, Advanced Routing/Network Access, Embedded Web Server/E-mail Support, and Network Management protocols
- Networking protocol products are optimized for speed and size requirements of embedded device applications
Very Scalable
- Customizable suite can meet a wide range of application RAM and ROM requirement by selectively choosing the necessary protocols for your design
Feature-rich
- Great flexibility in the way you provide connectivity to your device ranging from simple application such as Ethernet -Serial to complex gateway systems
Features
- Supports TCP, IPv4 and IPv6, UDP, ARP, ICMP, CIDR, IGMP, AND PPP
- Supports application-layer protocols such as DNS resolver, DHCP, HTTP, FTP, TFTP, Telnet, SMTP, SNMPv1, and SNMPv2
- Supports lower-layer protocols such as Ethernet (IEEE 802.3) and PPP (includes CHAP, LCP, PAP, CCP, and IPCP)
- Provides a Berkeley Socket (BSD) API and supports stream and datagram sockets
- Supports high-performance, re-entrant operation
- Supports multihoming and multiple devices
- Includes configurable network parameters
- Works with Ethernet drivers that accompany NXP MQX RTOS
- Supports dynamically configurable gateways
- Provides network status and diagnostics
- Is written in 100% ANSI C
MQX Real-Time TCP/IP Communication Suite (RTCS)
| Product | Description |
|---|---|
| MQX v5 Software Solutions | MQX v5 is a continuation of the MQX Classic product available under low-cost commercial licensing terms. |
| Internet Protocol version 6 (IPv6) | The IPv6 extension for MQX Real Time Communication Suite (RTCS) is an optional IPv6 add-on for MQX RTCS. |
