MC33771C BCC评估板，具有隔离的菊花链通信

RD33771CDSTEVB

滚动图片以放大

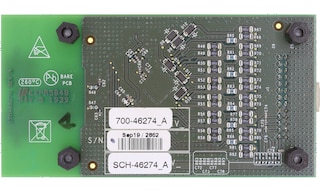

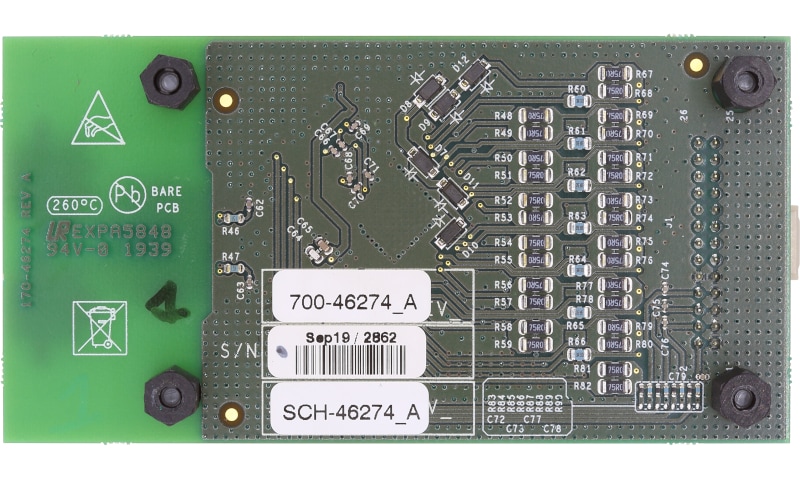

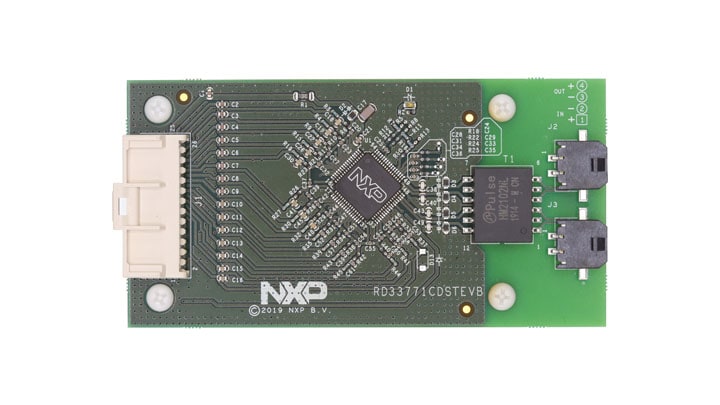

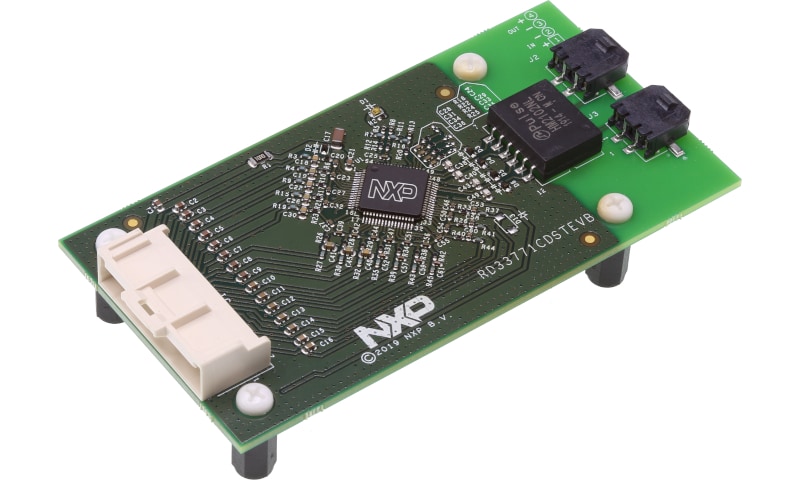

RD33771CDSTEVB评估板(EVB)具有14通道电池控制器MC33771C，适用于汽车和工业锂离子电池应用。它支持电池电压测量、无源电池平衡和通用IO。

该套件旨在支持客户开发和评估。该设备可以连接到恩智浦14芯电池模拟器或具有7~14个逻辑单元串联的客户锂离子电池模块。菊花链内最多可连接63个RD33771CDSTEVB。电池信息通过使用FRDMDUAL33664EVB的隔离差分通信总线传输到微控制器单元(MCU)。

支持的器件

电源管理

电芯控制器

  • MC33771C: 14通道锂离子电池单元控制器集成电路

特征

连接

  • TPL通信，菊花链
  • 26引脚连接器，用于14节电池连接，4个温度传感器

RGB LED

  • VCOM状态

MC33771C

  • 14芯电压测量
  • 100 mA电池平衡控制
  • 4个外部温度测量
  • 3个板载温度传感器
  • 诊断功能

购买选项

RD33771CDSTEVB-Image

点击展开

  • RD33771CDSTEVB
    正常供应

  • Evaluation Board for MC33771C BCC with Isolated Daisy Chain Communication.

    • 组装和测试好的评估板/模块，放在防静电袋中
    • 快速入门指南
    • 20cm TPL总线电缆
    • 20 cm电池连接线
  • 数量为 1
从分销商处购买
