为MC33771 EVB供电的14节电池组模拟器

BATT-14CEMULATOR

滚动图片以放大

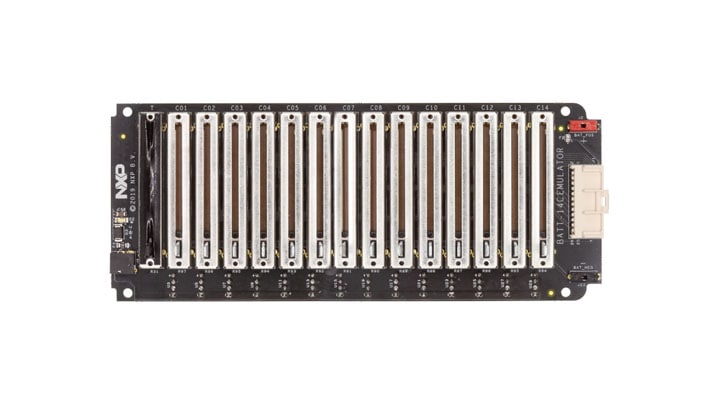

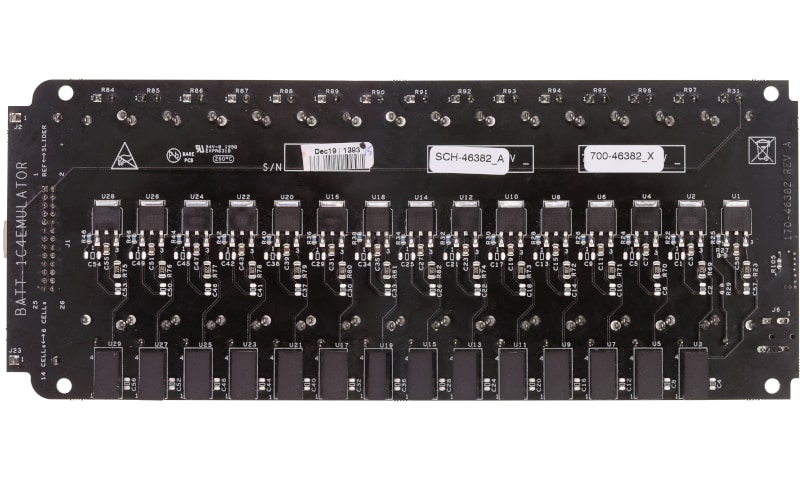

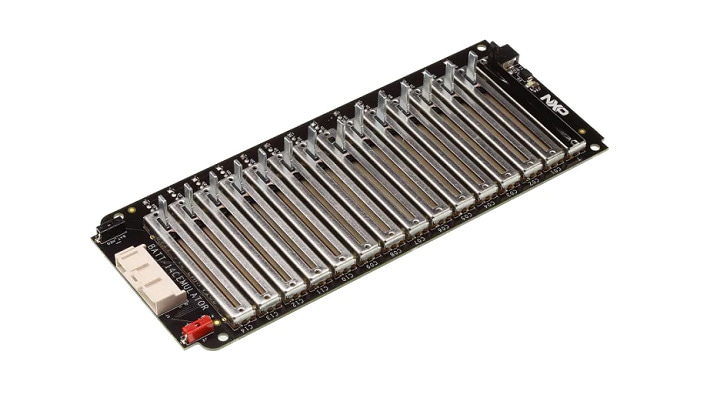

BATT-14CEMULATOR板可以模拟多节电池组，并轻松连接到MC33771C电池控制器(BCC)的评估板上：

  • RD33771CDSTEVB
  • FRDM33771CSPEVB

用户可连接BATT-14CEMULATOR板，以快速评估恩智浦BCC IC，或帮助用户进行软件开发。这些板能够以非常直观的方式改变模拟电池组14节电池中任何一节的电压，也可以改变作为温度传感器用的BCC IC的某些模拟输入端的电压。

产品详情

支持的器件

电源管理

电芯控制器

  • MC33771C: 14通道锂离子电池单元控制器集成电路

特征

电源输入

  • 12 V

电池电压输出

  • 单个电池电压可调整(1.25 V ~ 4.9 V)

温度传感器模拟器

  • 可调整(0 V至4.9 V)

用户组件

  • LED电源指示灯

购买选项

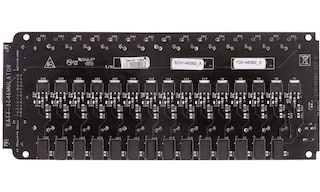

BATT-14CEMULATOR-Image

点击展开

  • BATT-14CEMULATOR
    正常供应

  • 14-Cell Battery Pack Emulator to Supply MC33771C BCC EVBs.

  • BATT-14CEMULATOR, 14节滑盖电池组模拟器

  • $393.30 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 10
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
