变压器物理层 (TPL)嗅探器工具

KIT-TPLSNIFEVB
正常供应

滚动图片以放大

KIT-TPLSNIFEVB有助于采用逻辑分析仪采集变压器物理层(TPL)信号。它是一个仅侦听的工具，由于其在TPL总线上的非侵入性设计，既可以在TPL总线的末端使用，也可以直接包含在菊花链中。

支持的器件

电源管理

电芯控制器

  • MC33771B: 14通道锂离子电池控制器IC
  • MC33771C: 14通道锂离子电池单元控制器集成电路
  • MC33772B: 6通道锂离子电池控制器IC
  • MC33772C: 6通道锂离子电池控制器IC

电池通信IC

  • MC33664: 隔离网络高速收发器

特征

Power and Data Connections

  • Connection to any point of the monitored TPL bus
  • Logic analyzer connection with a provided cable pin-to-pin compatible with the Saleae Logic 8 and Logic Pro 8/16 analyzer series
  • Powered through a USB connector by a 5 V source, typically a USB power bank or a USB cable connected to a computer

Additional Features

  • Minimal loading of the TPL line
  • Internal galvanic isolation between the TPL and rest of the circuits
  • Integrated keep-alive function to avoid power bank self shut-off

购买选项

KIT-TPLSNIFEVB-Image

点击展开

  • KIT-TPLSNIFEVB
    正常供应

  • Battery Management System (BMS) Communication Monitoring and Debugging Toolkit.

  • KIT-TPLSNIFEVB板，也称为TPL嗅探器，是一种与逻辑分析仪及其软件配合使用的工具，可帮助分析任何TPL信号

    套件包含

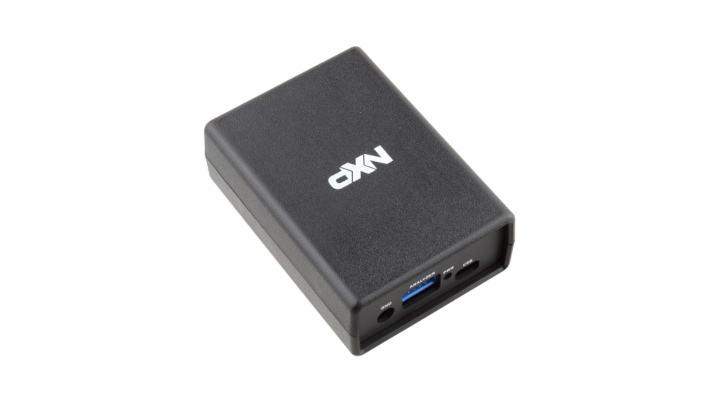

    • 完成组装和测试的TPL嗅探器Dongle，存放在防静电袋中

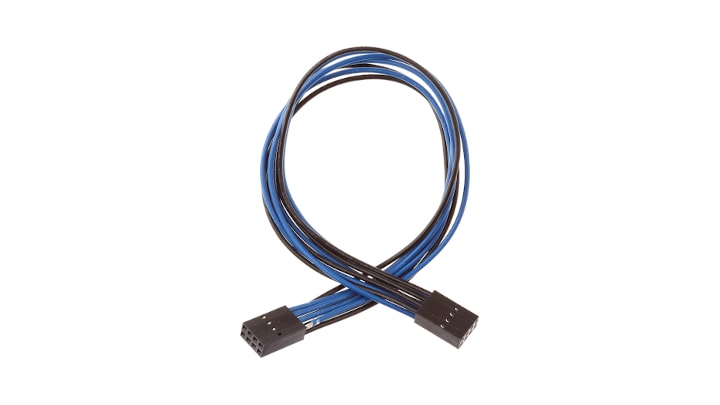

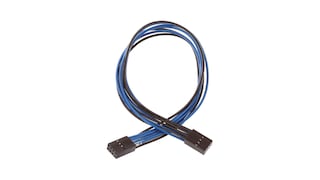

    • 带有8引脚接头的逻辑分析仪连接电缆

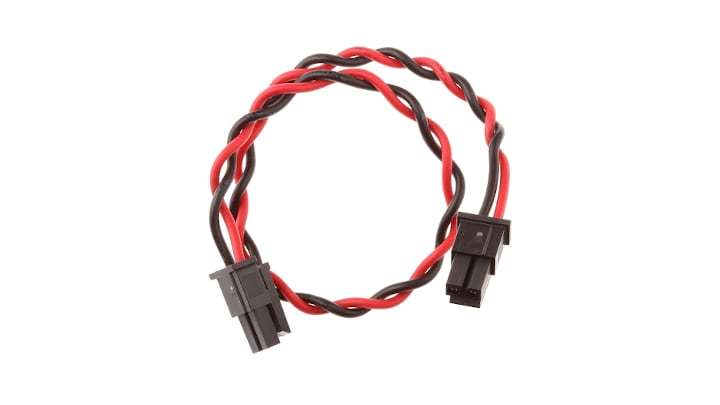

    • 带有2引脚接头的TPL总线连接双绞线
  • $193.20 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
