产品详情

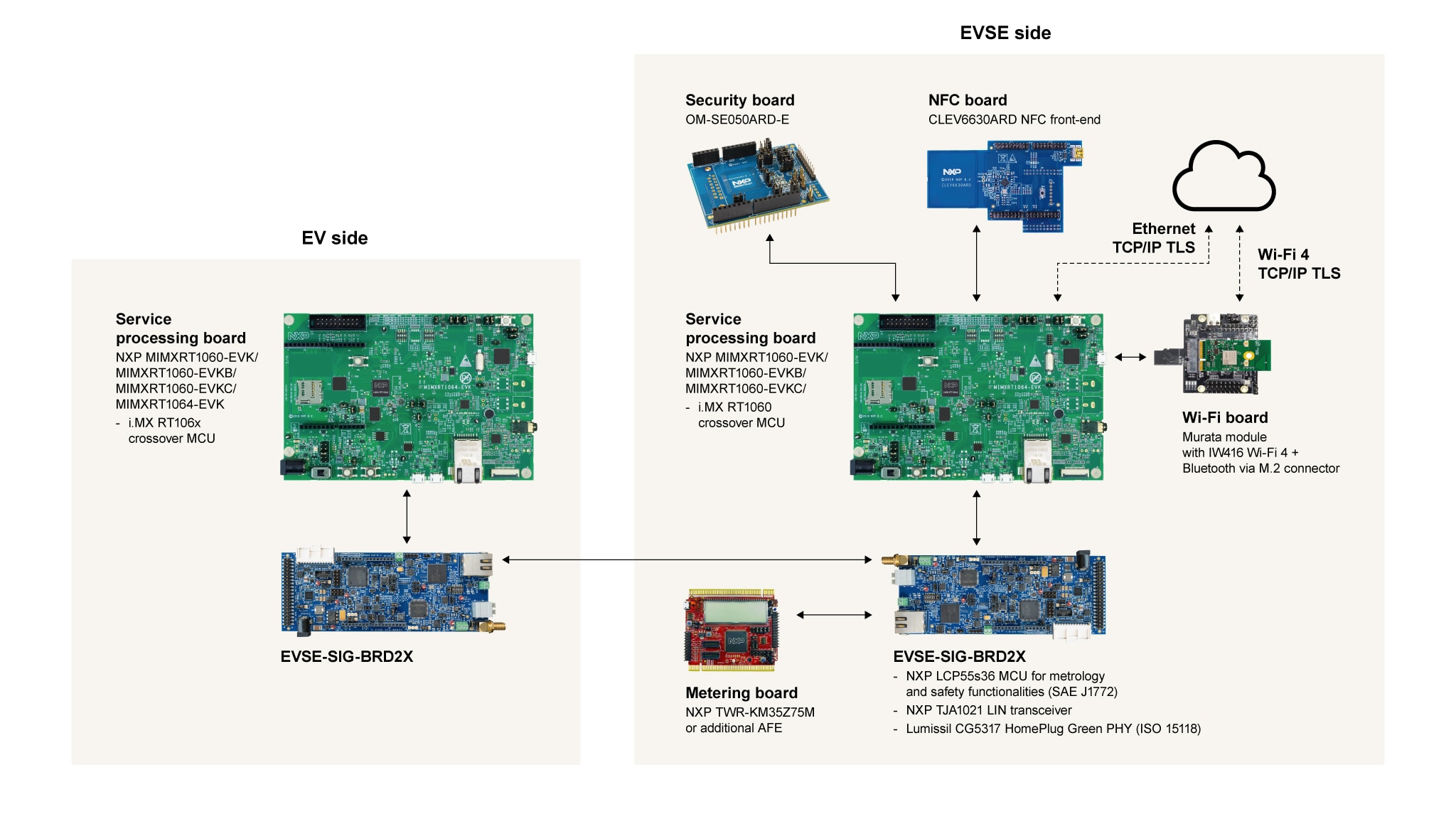

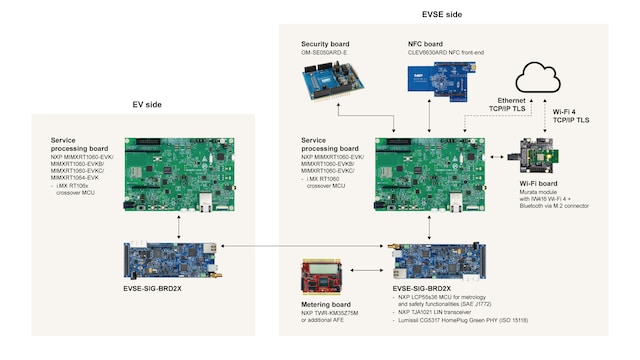

框图

EasyEVSE电动汽车充电开发平台

EasyEVSE EV Charging Development Platform

获取框图PDF

特性

硬件

可以从产品表订购模块化和可扩展的开发板选项，以支持所需的功能。

软件

免费示例软件可从以下链接下载，适用于：

i.MX RT106x跨界MCU

Microsoft FreeRTOS(MCUXpresso SDK的一部分)
ISO15118协议栈
恩智浦Wi-Fi协议栈
用于Murata模块IW416 SoC的SDIO卡驱动程序(双频Wi-Fi 4/Bluetooth 5.2)
EdgeLock^{^®} SE050安全芯片主库
CLRC663 NFC板的库
图形用户界面的库

Kinetis M计量MCU

用于控制TWR-KM3x计量板的软件
用于前端电源插座模拟开发的EVSE应用专用示例软件

EdgeLock SE050安全芯片

面向OM-SE050ARD-E安全板的软件
EdgeLock SE05x Plug&Trust中间件

文档

用户指南，介绍如何使用简化的设置启动和运行EasyEVSE
用户手册，详细说明如何使用开发平台
分步视频和指导，单击“快速入门”按钮可访问

供货情况

可从下面的产品表订购开发板
Wi-Fi板可从Wi-Fi合作伙伴Murata的渠道订购

必需硬件

组装、连接和运行EasyEVSE电动汽车充电开发平台(MCU、FreeRTOS、Wi-Fi 4)+ISO15118所需的硬件如下：

电动汽车供电设备(EVSE)

1个MIMXRT1060-EVK或1个MIMXRT1060-EVKB，或1个MIMXRT1060-EVKC或1个MIMXRT1064-EVK
1个EVSE-SIG-BRD1X或1个EVSE-SIG-BRD2X
1个OM-SE050ARD-E EdgeLock SE050开发板
1个TWR-KM35Z75M或1个TWR-KM34Z75M或1个TWR-KM34Z50M板
1个CLEV6630ARD
1个1XK M.2 Module Wi-Fi模块(通过无线连接到云端)
1个LBEE0ZZ1WE-uSD-M2 Wi-Fi适配器(通过无线连接到云端)
1根RJ45以太网UTP线缆(通过以太网连接到云端)
1个RK043FN66HS-CTG或1个RK043FN02H 4.3英寸TFT 480*272 LCD
1个FPC FFC PCB转换器连接板，24引脚，0.5mm间距，转换到母头，1mm间距，可转换回DIP格式，2.54mm间距
1根FFC环路电缆，24引脚，0.5mm间距

电动汽车(EV)

1个MIMXRT1060-EVK或1个MIMXRT1060-EVKB或1个MIMXRT1060-EVKC或1个MIMXRT1064-EVK
1个EVSE-SIG-BRD1X或1个EVSE-SIG-BRD2X

其它硬件

EVSE至电动汽车侧：1根2.54mm的公对公跨接电缆(不使用同轴电缆时)，用于将电动汽车侧的EVSE-SIG-BRD1X或EVSE-SIG-BRD2X连接到EVSE侧的EVSE-SIG-BRD1X或1个EVSE-SIG-BRD2X
EVSE侧：2.54mm跨接电缆：15根公对母电缆和两根公对公电缆，或订购1根EVSE-RT106X-CBL电缆线束，以便更轻松、更快地连接各个板。
注：电动汽车侧不需要电缆或EVSE-RT106X-CBL。
EVSE侧：1个NFC无源设备；例如空白NFC MIFARE或NTAG样品卡
