700 W脉冲，频率为1030-1090 MHz，52 V Airfast®LDMOS射频功率晶体管

AFV10700H
正常供应

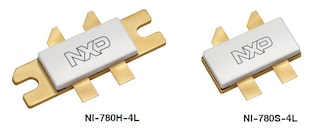

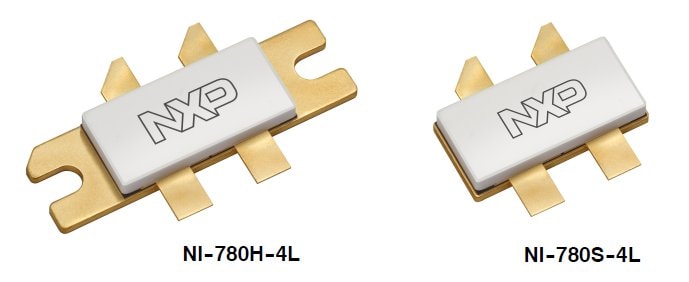

滚动图片以放大

AFV10700H和AFV10700HS射频功率晶体管专为运行频率在1030至1090 MHz之间的脉冲应用而设计，可在降低功率的960至1215 MHz频段使用。这些器件适用于具有大占空比和长脉冲的防御和商用脉冲应用，如IFF、二级监视雷达，ADS-B转发器，DME等复杂脉冲链。

产品详情

特征

  • 内部匹配的输入和输出，支持宽带运营和易用性
  • 器件可用于单端、推挽或正交配置中
  • 工作电压最高可达55 VDD
  • 高耐用性，处理的VSWR > 20:1
  • 集成的ESD防护，带有增大负电压范围，改善C类放大器运行和栅电压脉冲
  • 推荐的驱动器：MRFE6VS25N (25 W) 或 MRF6V10010N (10 W)
  • 符合RoHS规范
  • 包含在产品长期供货计划中，自推出后至少保证15年供货

射频性能表

典型性能

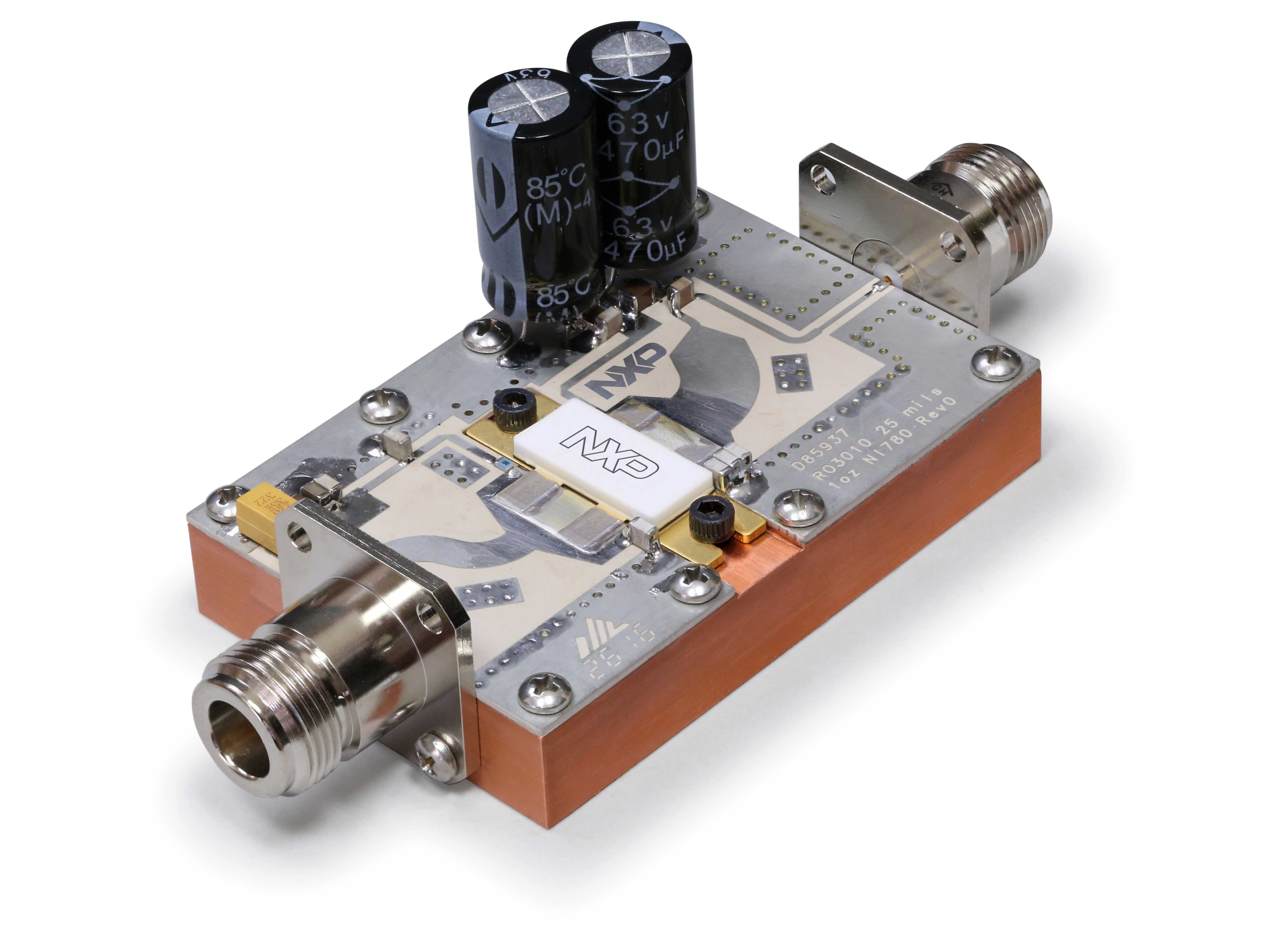

在1030-1090 MHz参考电路中，IDQ(A+B) = 100 mA
频率
(MHz) (1)		 信号类型 VDD
(V)		 输出功率
(W)		 Gps
(dB)		 ηD
(%)
1030脉冲
(128 µsec，10%占空比)		50800峰值17.552.1
1090700峰值19.056.1
103052850峰值17.551.7
1090770峰值19.256.1

典型性能

在1030 MHz窄带生产测试电路中，IDQ(A+B) = 100 mA
频率
(MHz)		 信号类型 VDD
(V)		 输出功率
(W)		 Gps
(dB)		 ηD
(%)
1030 (2)脉冲
(128 µsec，10%占空比)		50730峰值19.258.5

窄带负载不匹配/耐用性

频率
(MHz)		 信号类型 VSWR 输入功率
(W)		 测试
电压		 结果
1030 (2)脉冲
(128 µsec，10%占空比)		> 20:1 (所有相角)17.2峰值
(3 dB过驱)		50无器件退化
1. 在1030-1090 MHz参考电路中测量。
2. 在1030 MHz窄带测试电路中测量。
