The i.MX280 is a low-power, high-performance applications processor optimized for the general embedded industrial and consumer markets. The core of the i.MX280 is Our fast, proven, power-efficient implementation of the ARM926EJ-S™ core, with speeds of up to 454 MHz. Ideal for building applications that do not require a display such as media and smart energy gateways/managers, handheld printers and scanners or communications modules, the i.MX280 comes with a comprehensive suite of software and tools to get you started today.

产品详情

框图

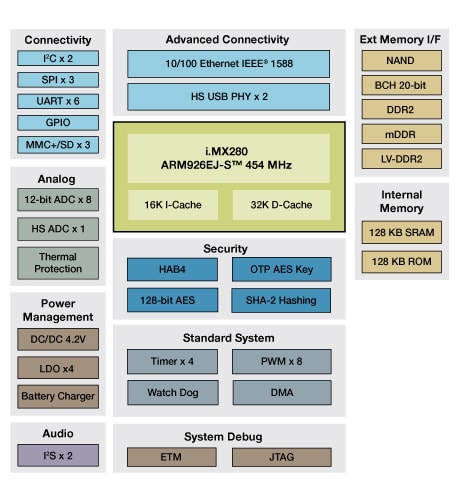

i.MX280 Applications Processor Block Diagram

i.MX280 Multimedia Applications Processor Block Diagram

获取框图PDF

特征

NAND support – SLC/MLC and eMMC 4.4 managed
Hardware BCH (up to 20-bit correction)
200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support
Dual High speed USB with embedded PHY
8 General purpose 12-bit ADC channels and single 2 Msps ADC channel
Temperature sensor for thermal protection
Multiple connectivity ports (UART, SSP, SDIO, SPI, I2C, I2S)
3.3V I/O, 10 year lifetime (Industrial)
Package and Temperature
- 289 BGA 14x14mm .8mm
- -20C to +70C (Consumer)
-40C to +85C (Industrial)
This product is included in NXP’s product longevity program, with assured supply for a minimum of 15 years after launch

设计资源

设计文件

3 设计文件

^模型
i.MX28 Processors IBIS Model Files

ZIP版本 2Jan 24, 2011 00:00:00371.2 KBIMX28IBIS
请登录

下载
^模型
i.MX28 BSDL File

ZIP版本 2Sep 20, 2011 00:00:007.3 KBIMX28BSDL
请登录

下载
^{印刷电路板与电路图}
i.MX28 Reference Schematics

ZIP版本 DJun 18, 2015 00:00:001.2 MBIMX28REFSCH
请登录

下载

硬件

1-5 / 7 硬件

^{评估/开发板与系统}
i.MX28评估套件亮点

MCIMX28EVKJ
^{仿真器、探测器和编程器}
Tool and documentation for downloading i.MX28 image during manufacturing

I.MX28_MFG_TOOL_LINUX
请登录
^{仿真器、探测器和编程器}
IMX_MFG_TOOL

IMXMFG_TOOL
请登录
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{仿真器、探测器和编程器}
Command-line tool used to download a firmware image to target platform to run in RAM. Supports i.MX23/28/508 platforms.

IMX_SB_LOADER
^{仿真器、探测器和编程器}
Source Code for the i.MX manufacturing tool used for downloading OS images to the i.MX53, i.MX51, i.MX50, i.MX28 and i.MX23.

IMX_MFG_TOOL_SOURCE
请登录
^{仿真器、探测器和编程器}
Windows Tool for the creation of boot SD cards for the i.MX platforms. Includes binaries and sources files.

CF_IMAGER
请登录
^{仿真器、探测器和编程器}
IMX_OTP_TOOLS

IMX_OPT_TOOLS

1-5 / 21 硬件

^{硬件测试配件和调试器}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link EDU

The J-Link EDU emulator is our standard J-Link emulator wrapped in a new educational marked housing. It is intended for educational use and the home hobbyist. Support for...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Universal Access Device 3+ (UAD3+)

The UAD3+, equipped with up to 4 GB of trace memory and powerful interfaces to target and host, is the right solution for trace, multicore debugging, profiling and code c...

By PLS Development Tools Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Trace PRO Cortex

J-Trace PRO Cortex provides support for Cortex-A/R/M based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO Cortex enables continuous streaming trace via...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link WiFi

JTAG/SWD debug probe with WiFi interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Universal Access Device 2next (UAD2next

The (UAD2next) combines the state-of-the-art debugging features and CAN with trace capabilities. It can be extended by plugin trace modules supporting e.g. ARM CoreSight ...

By PLS Development Tools Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{硬件测试配件和调试器}
Universal Access Device 2pro (UAD2pro)

The UAD2pro offers fast and flexible communication between Universal Debug Engine on the Host PC and the microcontroller target. Host interface is USB 2.0. Target interfa...

By PLS Development Tools Gold 合作伙伴
^{硬件测试配件和调试器}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum 合作伙伴
^{硅设备/组件}
NOR Flash

Micron manufactures a wide range of NOR Flash products, including Serial and quad SPI, Industry standard Parallel NOR flash and high performance parallel NOR Flash suppor...

By Micron Gold 合作伙伴
^{硅设备/组件}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold 合作伙伴
^{硅设备/组件}
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold 合作伙伴
^{嵌入式板子解决方案}

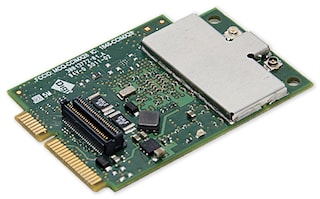

ConnectCard Wi-Fi i.MX28
