i.MX283处理器_高性能

i.MX283应用处理器可提供一个低功耗、高性能的解决方案，专为通用嵌入式工业控制和消费电子市场而优化。

支持多种应用，如媒体和智能能源网关、手持打印机和扫描仪，以及便携式医疗设备
降低系统成本和复杂性，并提高系统设计的灵活性
扩大了温度范围，适应严苛环境的要求
工业资质以及产品长期供货计划，为此领域的产品提供整个生命周期支持
配有一套软件和工具

数据手册

参考手册

产品详情

框图

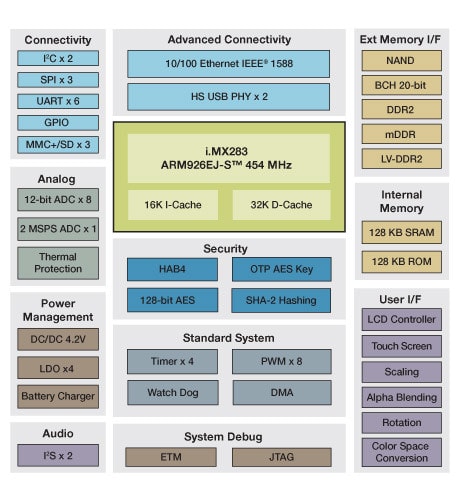

i.MX283 Applications Processor Block Diagram

i.MX283 Multimedia Applications Processor Block Diagram

获取框图PDF

特征

带触摸屏的LCD控制器
NAND支持 – SLC/MLC和eMMC 4.4可管理
硬件BCH (高达20位校正)
200 MHz 16位DDR2、LV-DDR2、mDDR外部存储器支持
带有嵌入式PHY的双高速USB
8个通用12位ADC通道和单个2 Msps ADC通道
带温度传感器，提供热保护
多种连接端口(UARTS、SSP、SDIO、SPI、I2C、I2S)
3.3V I/O，10年使用寿命(工业控制)
封装和温度
- 289 BGA 14x14mm .8mm
- -20C至+70C (消费电子)
- -40C至+85C (工业控制)
本产品包含在恩智浦产品长期供货计划中，自推出后至少保证15年供货

设计资源

设计文件

3 设计文件

^模型
i.MX28 Processors IBIS Model Files

ZIP版本 2Jan 24, 2011 00:00:00371.2 KBIMX28IBIS
请登录

下载
^模型
i.MX28 BSDL File

ZIP版本 2Sep 20, 2011 00:00:007.3 KBIMX28BSDL
请登录

下载
^{印刷电路板与电路图}
i.MX28 Reference Schematics

ZIP版本 DJun 18, 2015 00:00:001.2 MBIMX28REFSCH
请登录

下载

硬件

1-5 / 7 硬件

^{评估/开发板与系统}
i.MX28评估套件亮点

MCIMX28EVKJ
^{仿真器、探测器和编程器}
Tool and documentation for downloading i.MX28 image during manufacturing

I.MX28_MFG_TOOL_LINUX
请登录
^{仿真器、探测器和编程器}
IMX_MFG_TOOL

IMXMFG_TOOL
请登录
其他可用硬件. 查看我们的精选合作伙伴解决方案.
^{仿真器、探测器和编程器}
Command-line tool used to download a firmware image to target platform to run in RAM. Supports i.MX23/28/508 platforms.

IMX_SB_LOADER
^{仿真器、探测器和编程器}
Source Code for the i.MX manufacturing tool used for downloading OS images to the i.MX53, i.MX51, i.MX50, i.MX28 and i.MX23.

IMX_MFG_TOOL_SOURCE
请登录
^{仿真器、探测器和编程器}
Windows Tool for the creation of boot SD cards for the i.MX platforms. Includes binaries and sources files.

CF_IMAGER
请登录
^{仿真器、探测器和编程器}
IMX_OTP_TOOLS

IMX_OPT_TOOLS

展开

1-5 / 21 硬件

^{硬件测试配件和调试器}
J-Link PLUS

JTAG/SWD debug probe with USB interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in t...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Arm ULINKpro

The ULINKpro debug and trace unit connects your PC's USB port to your target system and allows you to program, debug, and analyze your applications using its unique strea...

By Arm Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link EDU

The J-Link EDU emulator is our standard J-Link emulator wrapped in a new educational marked housing. It is intended for educational use and the home hobbyist. Support for...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link BASE

Supercharge your IDE with the worlds fastest debug probe. The J-Link Flash download technology achieves a performance very close to the maximum speed possible. No other ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher ARM

In-Circuit-Flash-Programmer based on the J-Link family for production and in-field-service. Offers fastest flash algorithms available, multiple integration options (RS232...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
TRACE32 JTAG/SWD Debugger for ARM已更新

Lauterbach is making world class microprocessor development tools since 1979. TRACE32 debug and real-time trace solutions support the whole range of NXP processors.

By Lauterbach Gold 合作伙伴
^{硬件测试配件和调试器}
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Platinum 合作伙伴
^{硬件测试配件和调试器}
J-Link ULTRA+

Builds atop the J-Link to further enhance the debug experience. The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Trace PRO Cortex

J-Trace PRO Cortex provides support for Cortex-A/R/M based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO Cortex enables continuous streaming trace via...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
J-Link WiFi

JTAG/SWD debug probe with WiFi interface. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in ...

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold 合作伙伴
^{硬件测试配件和调试器}
Green Hills Probe

High speed on-chip download, run control and trace.

By Green Hills Software Platinum 合作伙伴
^{硬件测试配件和调试器}
Arm DSTREAM

The Arm DSTREAM family of high performance debug and trace probes enable Arm Development Studio to debug all Arm-based devices through a variety of interfaces.

By Arm Platinum 合作伙伴
^{硅设备/组件}
NOR Flash

Micron manufactures a wide range of NOR Flash products, including Serial and quad SPI, Industry standard Parallel NOR flash and high performance parallel NOR Flash suppor...

By Micron Gold 合作伙伴
^{硅设备/组件}
PIXI-9377

PIXI-9377 is a fully certified (FCC, TELEC, IC, CE, RCM) dual-band Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5 SDIO module optimized for cost, size and performance. It is bas...

By TechNexion Ltd Gold 合作伙伴
^{硅设备/组件}
Low Power DRAM

Low Power DRAM's include LPDDR, LPDDR2, LPDDR3 and LPDDR4 products

By Micron Gold 合作伙伴
^{嵌入式板子解决方案}

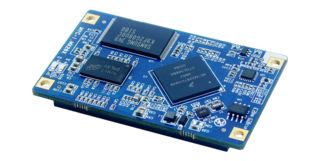

MYC-IMX28X Core Module

Core Modules based on NXP I.MX28 Series Processors ，with 128MB DDR2 SDRAM, 256MB Nand Flash on Board.Two 1.27mm pitch 80-pin SMT Male Connectors for Board-to-Board Conne...

By MYIR Electronics Limited Gold 合作伙伴
^{嵌入式板子解决方案}

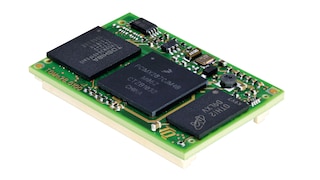

TQMa28
