Arm Cortex-M0+_Kinetis KEA 32位汽车MCU

Kinetis^® EA系列32位Arm^® Cortex^®MCU广泛适用于质量要求和长期供货保证要求都很高的汽车和工业应用。Kinetis EA系列是广泛的Arm生态合作体系的入门级产品，并具有以下功能：

低功耗Arm Cortex-M0+内核和8–128 KB的嵌入式闪存
具备出色的EMC/ESD兼容性，能够适应高温环境，并且辐射排放较低
提供可扩展、稳定可靠的高性能解决方案，适合成本敏感型汽车应用
拥有丰富的参考设计、工具和应用笔记，能够帮助您加快设计开发速度，加快产品上市速度。

数据手册

参考手册

产品详情

框图

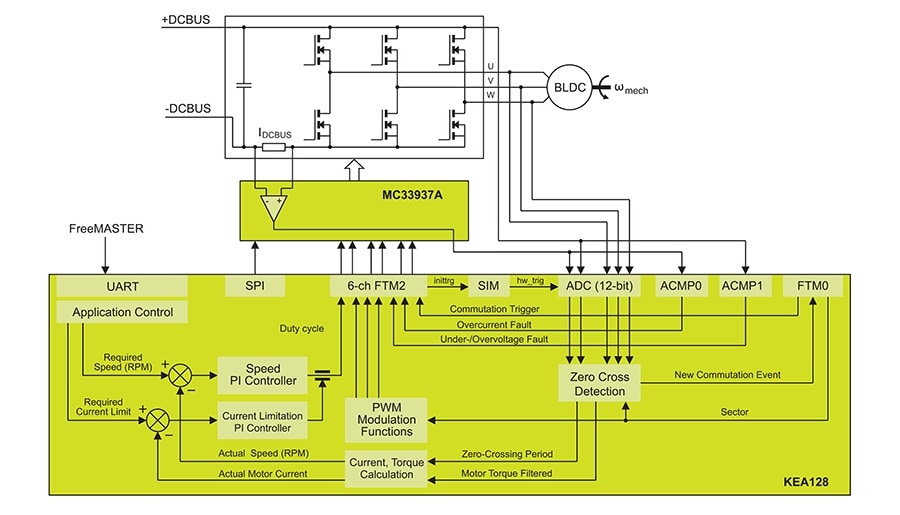

3 Phases Sensorless BLDC Motor Control

获取框图PDF

特征

性能

高达48 MHz Arm Cortex M0+内核
单周期32位 x 32位乘法器

存储器

内置高达128K闪存
高达256 B EEPROM
高达16K RAM

时钟

外部振荡器(OSC)
内部时钟源(ICS)

系统功能

电源管理模块(PMC)具有三种模式：运行、等待、停止
带复位或中断功能的低电压检测(LVD)，可选择的跳变点
带独立时钟源的看门狗(WDOG)
可编程循环冗余校验模块(CRC)
串行电路调试接口(SWD)
SRAM位带别名区(BITBAND)
位操作引擎(BME)

通信接口

多达2个SPI模块
多达3个UART模块
多达2个IIC模块
一个CAN模块

多个定时器

一个6通道FlexTimer/PWM (FTM)
两个双通道FlexTimer/PWM (FTM)
一个双通道周期中断定时器(PIT)
一个脉宽定时器(PWT)
一个实时时钟(RTC)

模拟模块

一个16通道12位SAR ADC，带有内部带隙参考通道，在停止模式下运行，可选择的硬件触发器(ADC)
两个模拟比较器，内含一个6位DAC和可编程参考输入(ACMP)

对比表

KEA系列产品对比

器件	闪存	RAM	EEPROM	频率	MSCAN	SCI	SPI	ATD	Flex-Tim	IIC	通用IO	封装
KEAZN8	8K	1K	仿真	48MHz	0	1	1	12c12b	6c+2c 16b	1	多达22个	16 TSSOP/24 QFN
KEAZN16	16K	2K	256B	40MHz	0	3	2	16c12b	6c+2c+2c 16b	2	多达57个	32/64 LQFP
KEAZN32	32K	4K	256B	40MHz	0	3	2	16c12b	6c+2c+2c 16b	2	多达57个	32/64 LQFP
KEAZN64	64K	4K	256B	40MHz	0	3	2	16c12b	6c+2c+2c 16b	2	多达57个	32/64 LQFP
KEAZ64	64K	8K	仿真	48MHz	1	3	2	16c12b	6c+2c+2c 16b	2	多达71个	64/80 LQFP
KEAZ128	128K	16K	仿真	48MHz	1	3	2	16c12b	6c+2c+2c 16b	2	多达71个	64/80 LQFP

基于Arm^® Cortex^®-M0+处理器

基于Arm^® Cortex^®-M0+ 处理器 - 市场上能效最高的32位处理器，具有业界领先的吞吐量/mA
超低功耗模式 - 多种灵活的功耗模式，适合不同的应用情形，可最大限度地延长电池使用时间
节能外设 - 智能外设在深度睡眠模式下仍然可以工作，可在不唤醒内核的情况下进行智能决策和数据处理
