56F835X-815X_数字信号控制器

恩智浦56F835X和56F815X数字信号控制器属于基于56800E内核的DSC系列。它们在单一芯片上同时具备数字信号处理器(DSP)处理能力和微控制器功能，带有一组灵活的外围设备。

片上集成和易于实施等特性有助于加速开发，降低元件数量，并显著降低系统成本
其程序闪存、数据存储器和引导闪存是56F8345/8145产品的两倍，同时提供引脚全面兼容能力。
包含外部存储器接口
简化了设计，同时促进遵从安全法规
配有强大的开发工具，以简化并加快产品上市

数据手册

参考手册

产品详情

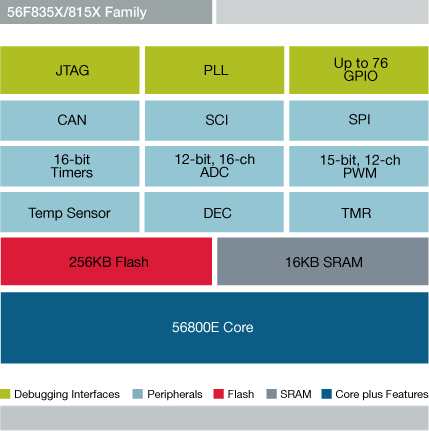

框图

Freescale 56F835X/815X Digital Signal Controller Block Diagram

NXP<sup>®</sup> 56F835X/815X Digital Signal Controller Block Diagram

获取框图PDF

特征

片上存储器包括高速易失性和非易失性组件：
- 256 KB程序闪存
- 16 KB数据RAM
- 8 KB数据闪存(835X器件)
- 4 KB程序RAM (835X器件)
- 4 KB程序闪存
- 16 KB引导闪存
最多可存取4MB片外程序存储器和32MB数据存储器
执行频率为60 MHz时可达60 MIPS
芯片选择逻辑提供连接ROM和SRAM的无缝接口
具备JTAG/EOnCE，可实现隐性实时调试
4个12位模数转换器(ADC)
温度传感器
FlexCAN (兼容CAN 2.0 B版本)
两个串行通信接口(SCI)
两个串行外设接口(SPI)
两个专用外部中断引脚
高达76路通用IO
集成低压中断模块
软件可编程锁相环
