Because of an order from the United States International Trade Commission, BGA-packaged product lines and part numbers indicated here currently are not available from NXP® for import or sale in the United States prior to September 2010: i.MX Product Family, DragonBall Product Family .
No longer recommended for new designs

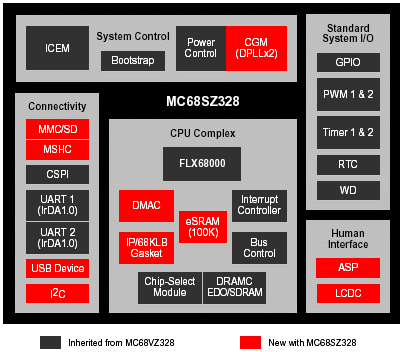

The MC68SZ328 (DragonBall Super VZ) microprocessor, the fourth generation of the 68K-based DragonBall family of products, is designed to save system designers time, power, and cost. Requiring less board space, it allows for reduced pin count and fewer programming steps when designing products. The major differences between previous versions of DragonBall processors and the new Super VZ are an improvement in system speed, TFT color LCD support, an A/D converter (with touch panel control), an MMC/SD host controller, a DMA controller, embedded SRAM, a USB device controller, and an I2C interface.
