带32 mA抑制唤醒的MSDI

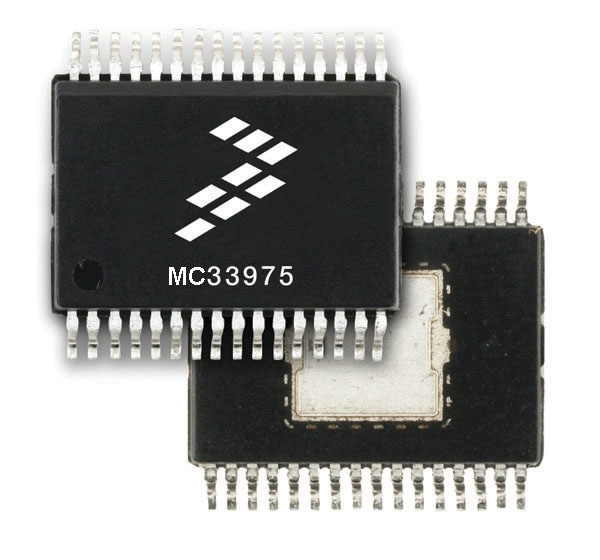

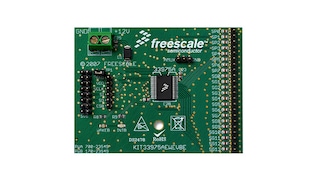

MC33975 正常供应

滚动图片以放大

具有抑制唤醒功能的恩智浦®MC33975多开关检测接口可检测最多22个开关触点的关闭和开启，非常适用于需要低睡眠状态电流的汽车和工业控制产品。

  • 开关状态(开启或关闭)会通过一个串行外设接口传输至MPU
  • 正常模式允许对器件进行编程，为开关触点提供上拉或下拉电流，睡眠模式提供低静态电流
  • 可以禁用睡眠模式的可编程中断定时器，接地开关输入的开关检测电流为32mA和4.0mA，中断位是复位位， 封装是无铅的

产品详情

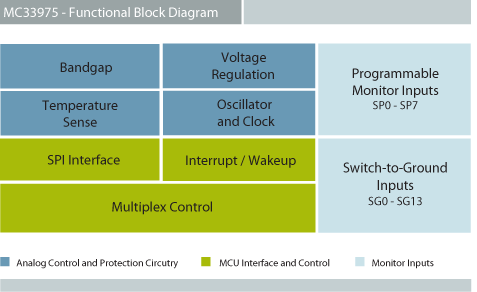

框图

恩智浦MC33975电源启动

NXP MC33975 Power Actuation Block Diagram
获取框图PDF

特性

主要特性

  • 设计工作电压范围：5.5V≤VPWR≤28V
  • 开关输入电压范围： -14V至VPWR, 最高40V
  • 使用3.3V/5.0V SPI协议可直接与微处理器连接
  • 可选择状态更改的唤醒功能
  • 可选择湿电流(接地开关输入为32mA或4.0mA)
  • 8个可编程输入(电池开关或接地开关)
  • 14个接地开关输入
  • VPWR待机电流100µA典型值，VDD待机电流20µA典型值
  • 后缀EK指定的无铅封装
  • 动力控制、信号调节和开关监测器件功能
  • 32封装焊端数
  • 封装类型SSOP32
  • 工作环境温度为–40至125°C

产品长期供货计划
