UART转I²C桥接评估板

SC18IM704-EVB
正常供应

滚动图片以放大

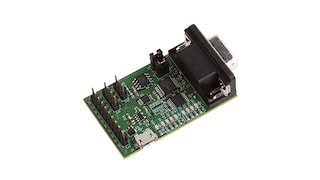

这是一款易于使用的板，配备了SC18IM704PW，允许连接到UART控制器和I²C目标设备以进行协议转换。

产品详情

支持的器件

接口

桥接器件

特性

UART主机接口

  • 具有高速RS-232波特率，最高可达460.8kbps。复位后波特率为9600bps，但之后可以通过波特率生成器更改

I²C总线控制器

  • 最高375kHz，带有256字节TX和RX FIFO，且支持多主控

8个可配置I/O端口

  • 可用于LED或其他I/O

电源电压范围广

  • 工作电压：1.71V至3.6V，5V容压I/O引脚

温度范围

  • -40至105°C，可用于高温工业应用

购买选项

SC18IM704-EVB-Image

点击展开

  • SC18IM704-EVB
    正常供应

  • UART to I²C Bridge Evaluation Board.

  • 套件包含：

    • 组装和测试好的评估板，放在防静电袋中
    • Wurth铁氧体磁芯
    • 铁氧体磁芯的使用说明
  • 数量为 1
从分销商处购买
