系列基于NX3DV42产品介绍

NX3DV42 正常供应

NX3DV42是双刀双掷模拟开关，适合用作模拟或数字多路复用器/多路解复用器。NX3DV42的宽带宽和低位间偏斜使其传输的高速差分信号具有良好的信号完整性。其高通道间串扰抑制可使噪声干扰最小。频带宽度足以传输高速USB 2.0差分信号(480 Mb/s)。其由两个开关组成，每个开关都具有两个独立的输入/输出（HSDn+和HSDn-）和一个公共输入/输出（D+或D-）。一个数字输入用来选择开关位置。针脚OE为高电平时，开关关闭。施密特触发器在选择输入(S)和使能输入(OE)处工作，这使得电路在从3.0 V至4.3 V的整个VCC范围内容许较慢输入上升和下降时间。

产品详情

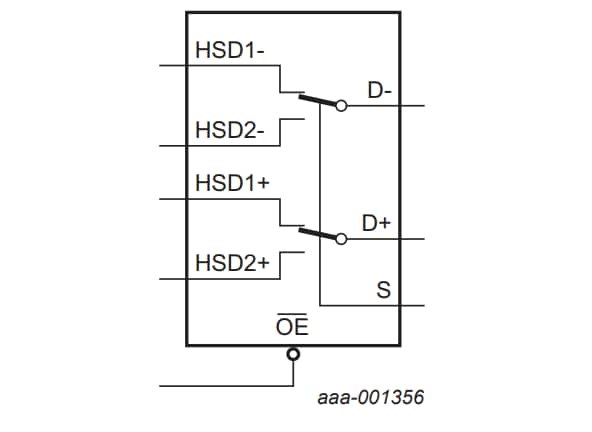

框图

NX3DV42 Block Diagram

NX3DV42 Block Diagram
获取框图PDF

功能

通用特性

  • 电源电压范围：3.0 V至4.3 V
  • 4 Ω典型导通电阻
  • 7.3 pF典型导通电容
  • 950 MHz典型带宽或数据频率
  • 240 MHz时-30 dB的低串扰
  • 先断后通式开关
  • 8个可编程输入(电池开关或接地开关)和14个接地开关输入
  • 典型待机电流：VBATP = 30 uA，VDD = 10 uA
  • 集成电池和温度传感

防静电保护

  • HBM JESD22-A114F 3A类超过4000 V
  • CDM AEC-Q100-011修订版B超过1000 V
  • HBM超过12000 V，实现电源接地保护
  • 闭锁性能超过100 mA，符合JESD 78 II类A级标准
  • 额定温度范围：-40 °C至+125 °C

产品长期供货计划

  • 该产品包含在恩智浦产品长期供货计划中，确保为您的嵌入式设计提供稳定的产品供应。NX3DV42GU包含在15年产品长期供货计划中
