LPC12D27FBD100是一种适合嵌入式应用的ARM Cortex-M0微控制器，具有较高的整合度和低功耗。ARM Cortex-M0是下一代的内核，它提供系统增强型特性，例如增强调试特性和提供更高级别的块集成支持。LPC12D27FBD100是双芯片模块，由1个LPC1227单芯片微控制器以及采用低成本100引脚封装的PCF8576D通用LCD驱动器组成。LCD驱动器提供40个段并支持1到4个背板。通过采用供显示专用的片上RAM使得显示开销最小化，片上RAM可自动递增寻址。

数据手册

应用笔记

产品详情

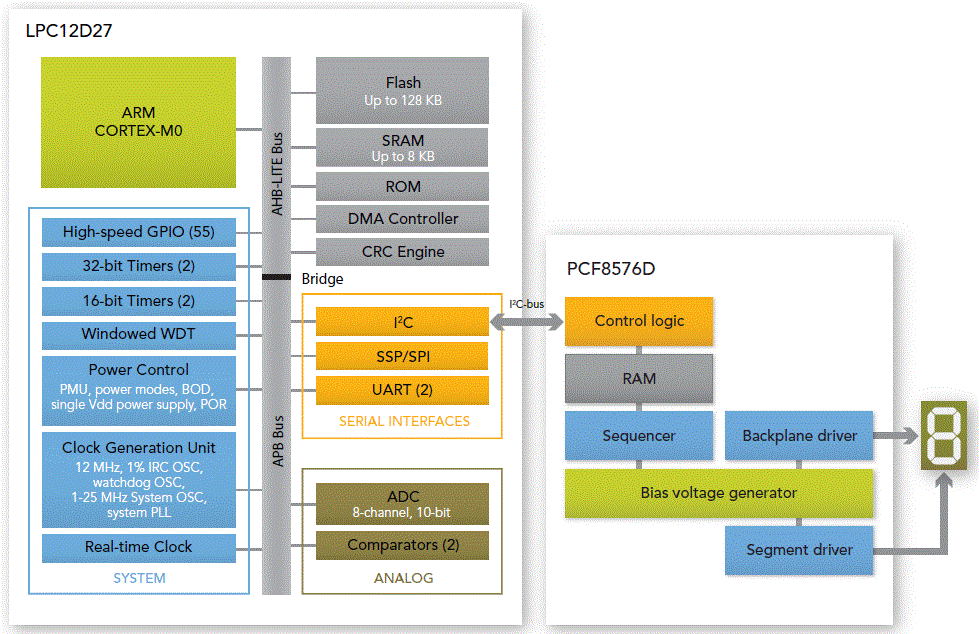

框图

LPC12D27 Block Diagram

获取框图PDF

特征

40段LCD驱动器
1至4个背板
片内显示器RAM，可自动递增寻址
ARM Cortex-M0处理器，工作频率高达45 MHz
ARM Cortex-M0内置可嵌套中断向量控制器(NVIC)
串行调试接口(SWD)
系统节拍定时器
8 kB SRAM
128 kB片内闪存编程存储器
在系统编程(ISP)和在应用编程(IAP)
包括基于ROM的32位整数除法程序
工作范围从1 MHz到25 MHz的晶体振荡器
校准到1％精度的12 MHz内部RC(IRC)振荡器
PLL允许CPU以最大CPU速率运行
带分频的时钟输出功能
实时时钟(RTC)
带有21个通道的微DMA控制器
CRC引擎
两个带小数波特率发生器和内部FIFO的UART
具有FIFO和多协议功能的SSP/SPI控制器
支持完整I2C总线规范及Fast-mode Plus的I2C总线接口
所有GPIO引脚上可编程的输出驱动
多达40个通用I/O (GPIO)引脚，带可编程的上拉电阻
所有GPIO引脚均可用作边沿和电平触发中断源
4个通用计数/定时器
窗口化看门狗定时器(WWDT)，获得IEC-60335 Class B认证
一个8通道10位ADC
2个高度灵活的模拟比较器
3种低功耗模式：睡眠模式、深度睡眠模式和深度掉电模式
处理器使用12个端口引脚通过启动逻辑从深度睡眠模式唤醒
处理器通过RTC从深度掉电模式和深度睡眠模式唤醒
使用三个单独的阈值进行掉电检测
上电复位(POR)
集成式PMU（电源管理单元）
可用作芯片识别的唯一序列号
3.3 V电源

目标应用

温控器
照明控制
便携医疗设备
报警系统
大型家电
