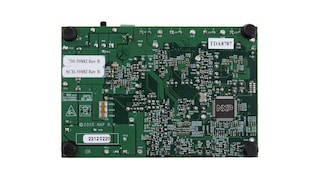

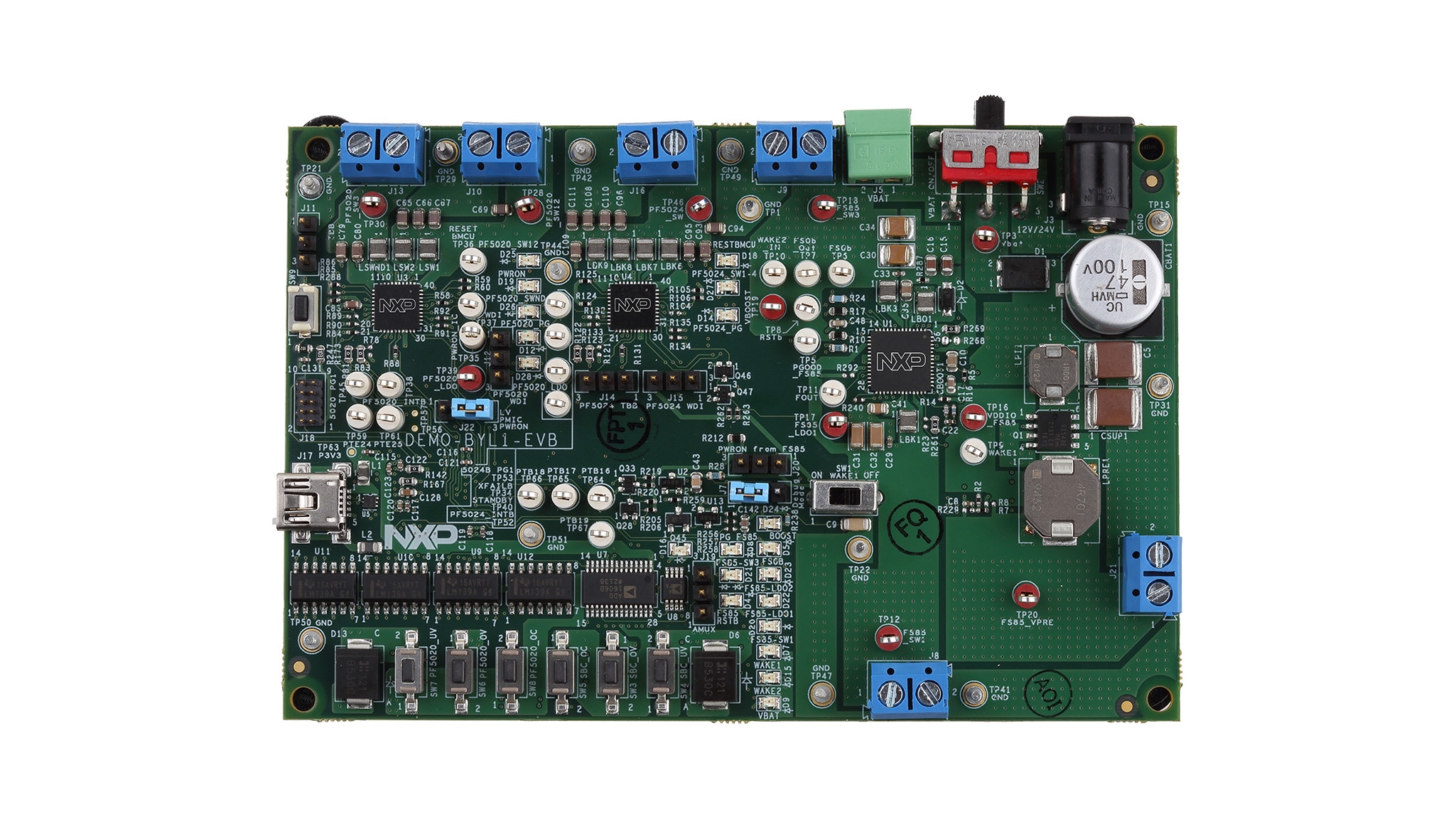

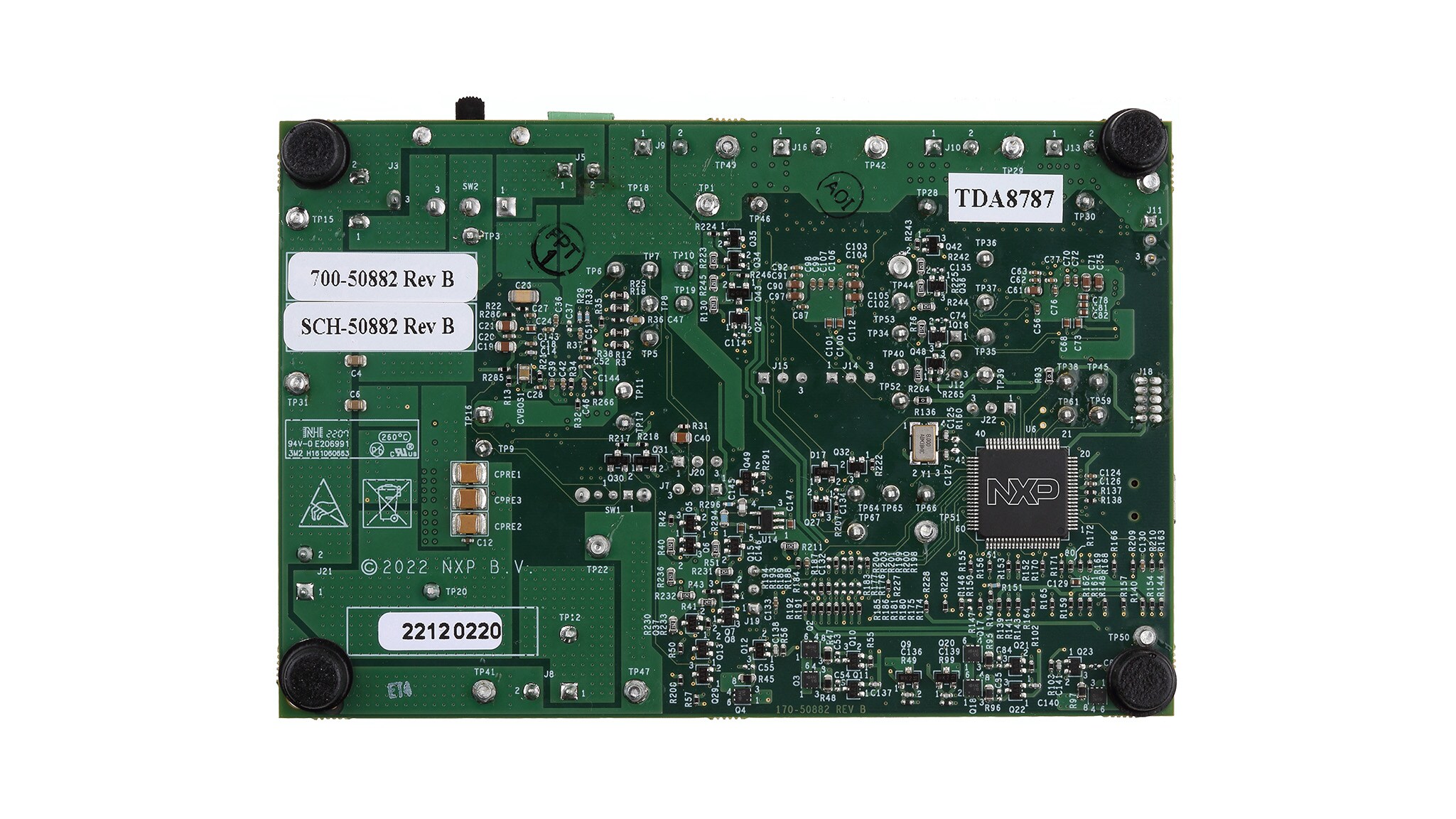

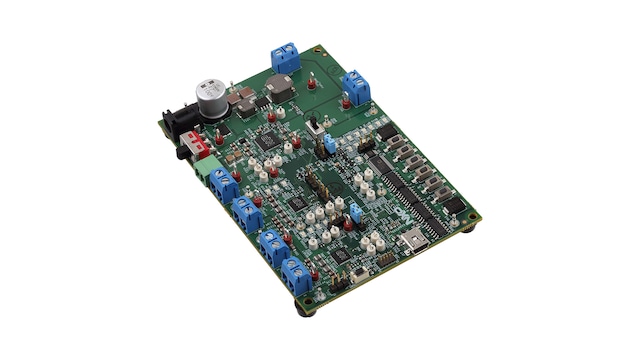

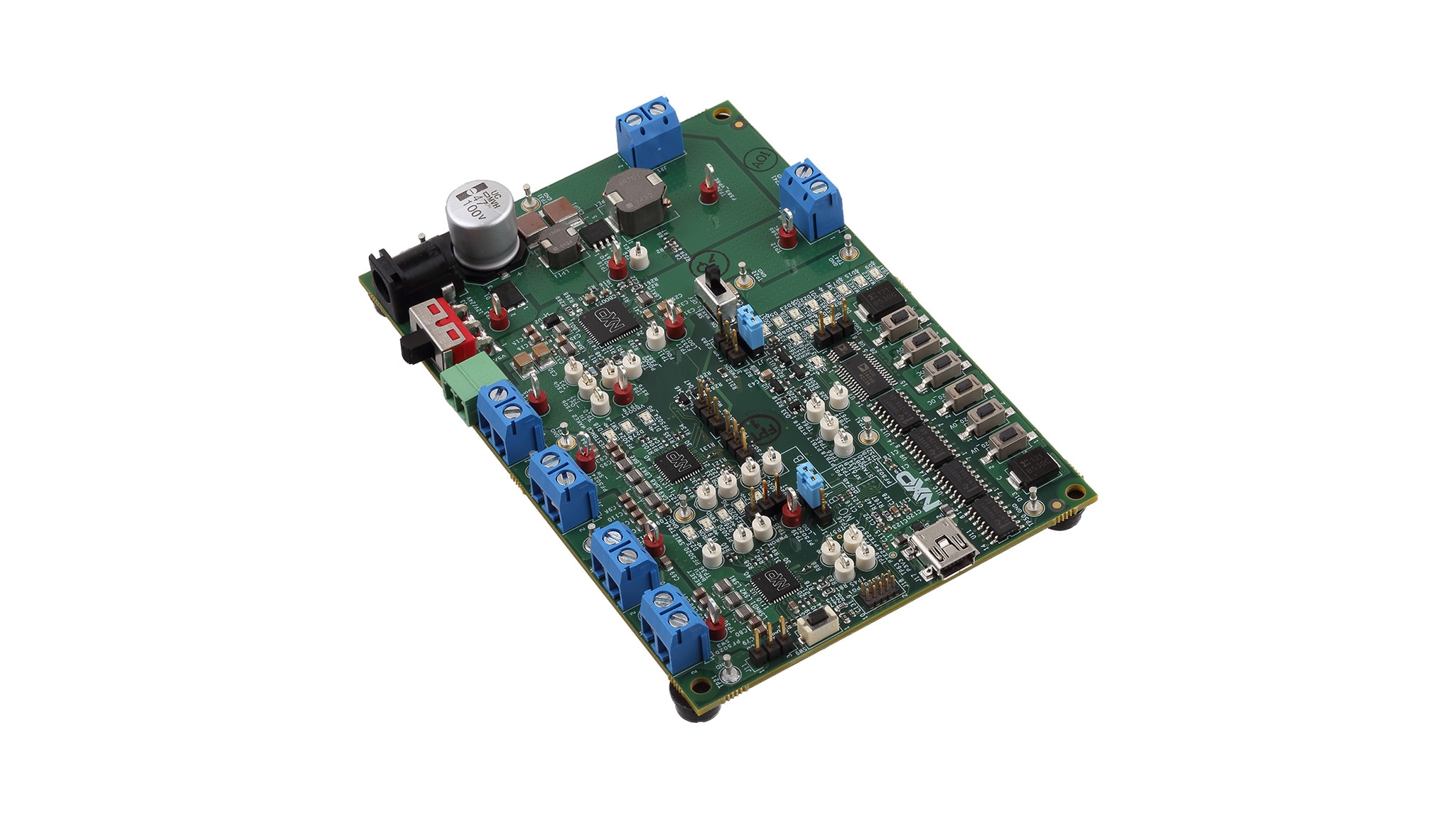

BYLink多处理器演示板

DEMO-BYL1-EVB 正常供应

滚动图片以放大

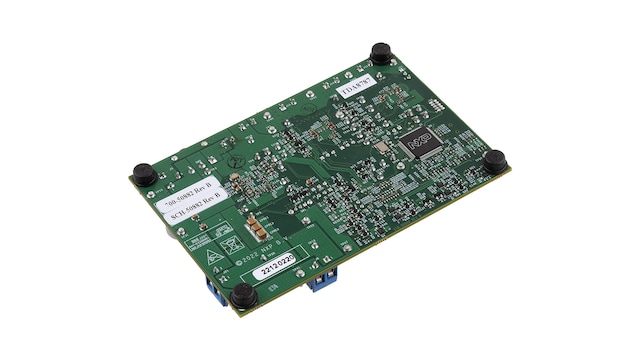

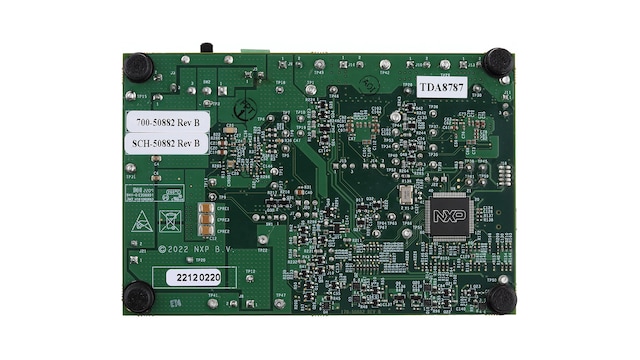

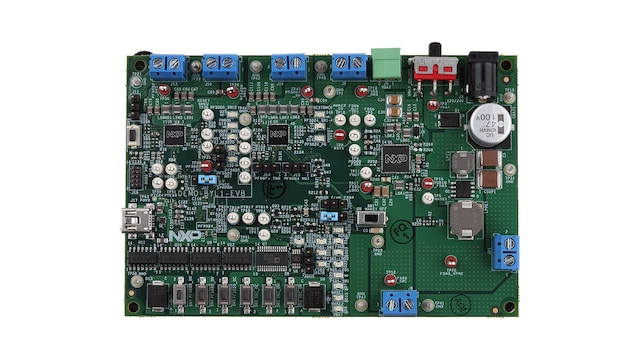

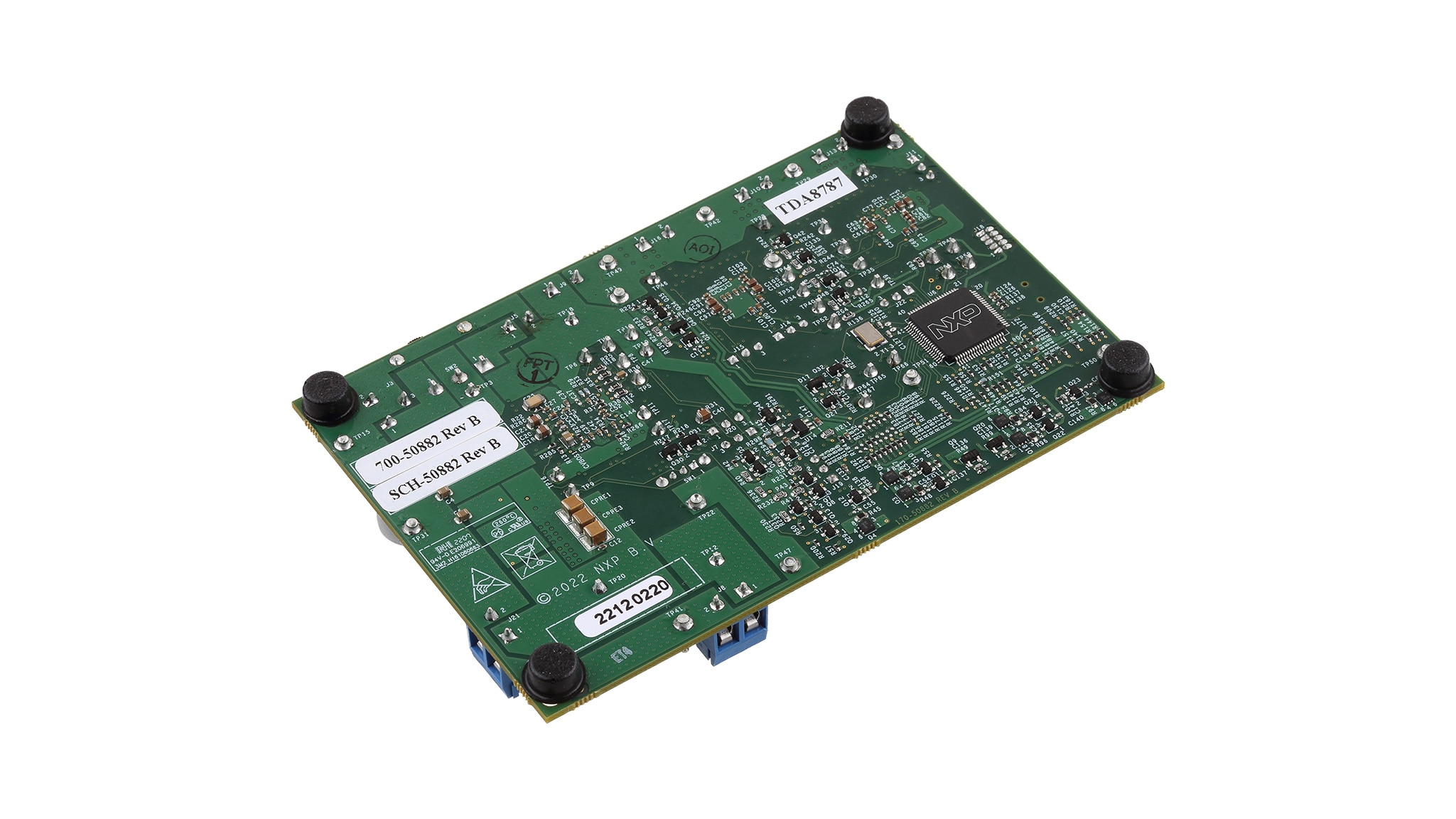

DEMO-BYL1-EVB是一款演示设计，可演示恩智浦为ADAS和多处理器汽车应用提出的BYLink概念电源管理解决方案。这些解决方案将恩智浦PMIC（如FS8500、PF5024和PF5020）整合为单一电源解决方案，适用于有关安全MCU和处理MCU的摄像头应用。

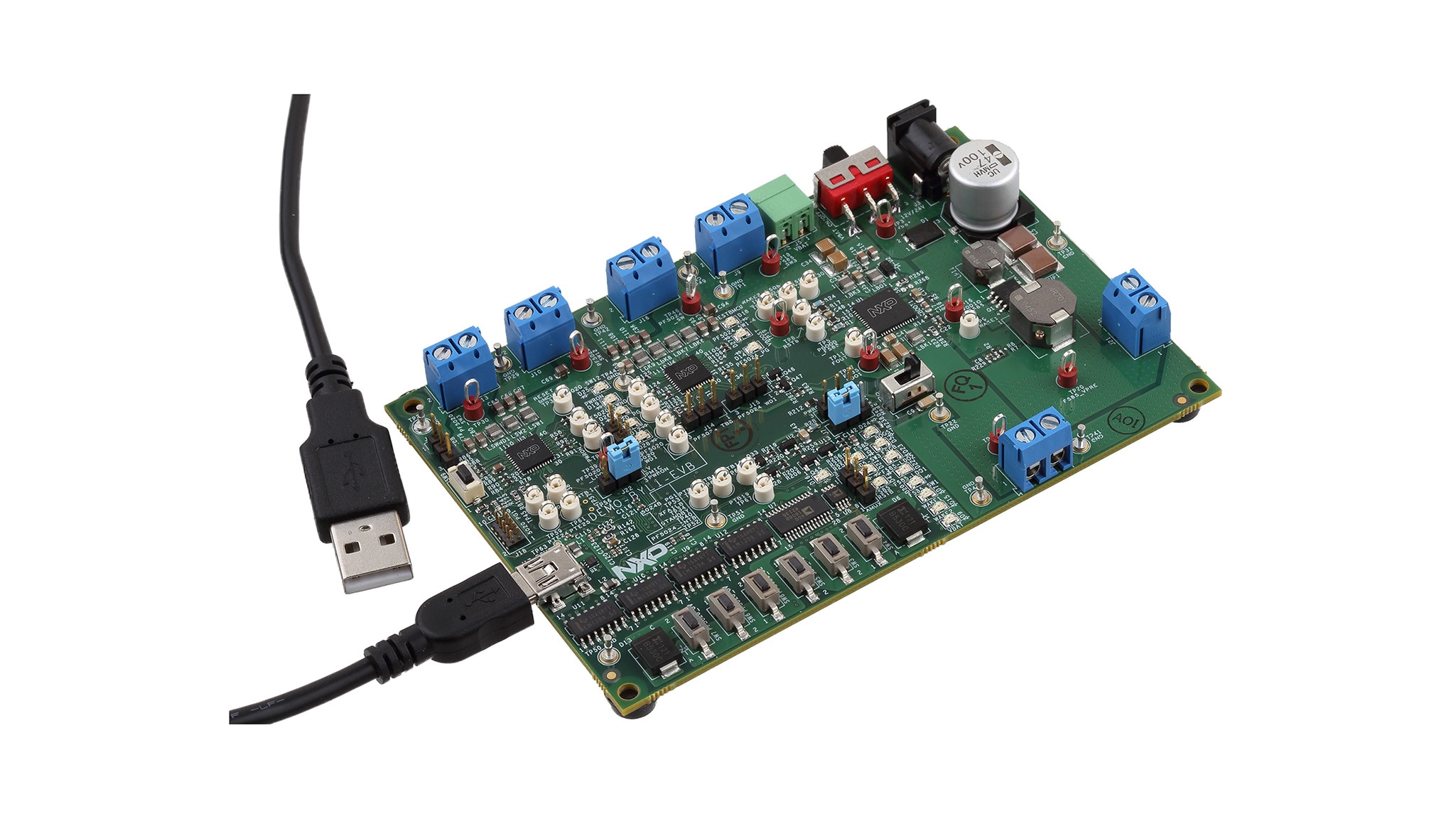

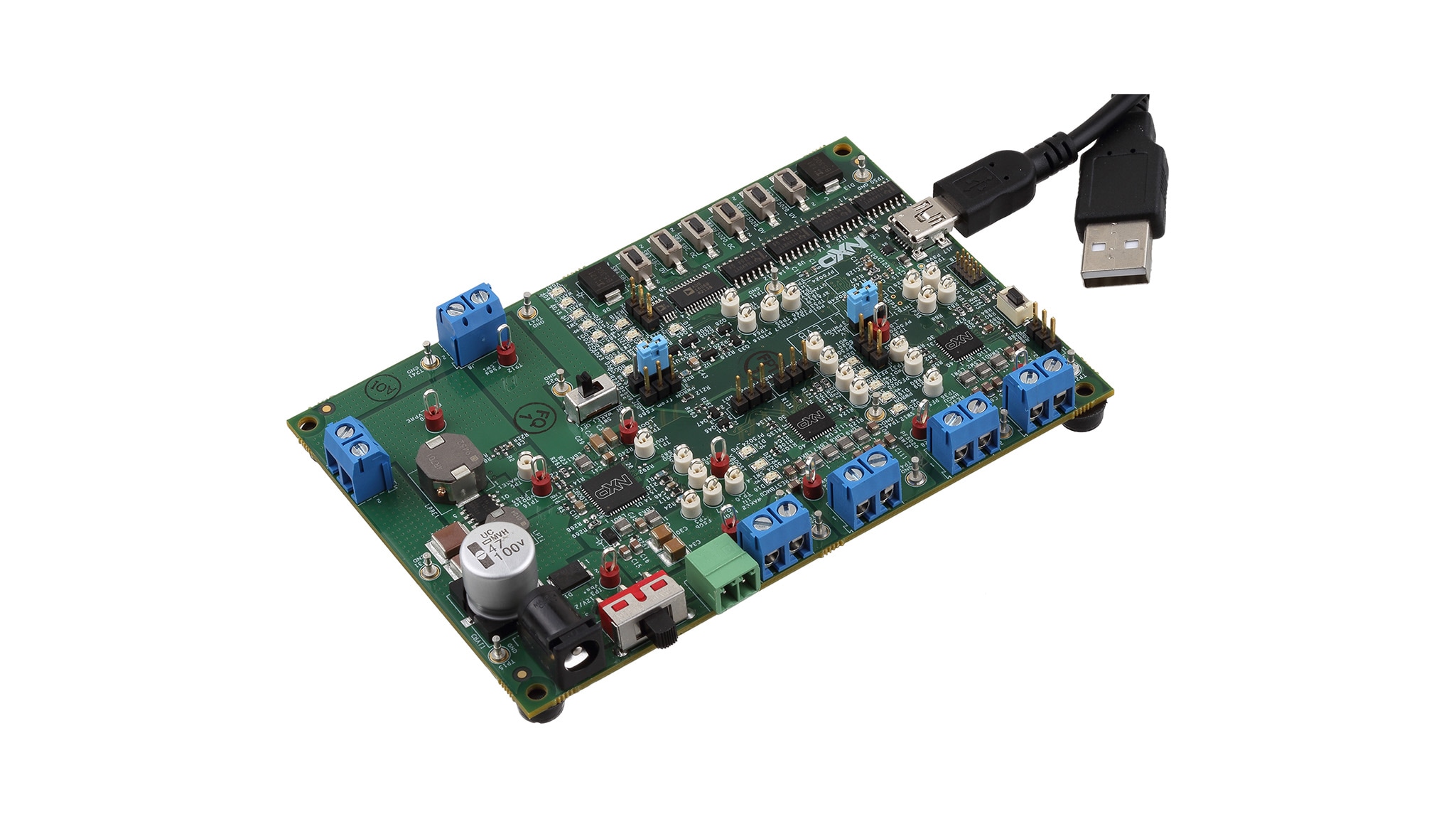

DEMO-BYL1-EVB套件可完全访问每个PMIC器件的所有功能，例如OTP配置、电源时序和安全功能。演示套件配有一根USB电缆，可用作计算机和BYLink概念之间的通信接口，从而控制整个PMIC解决方案。

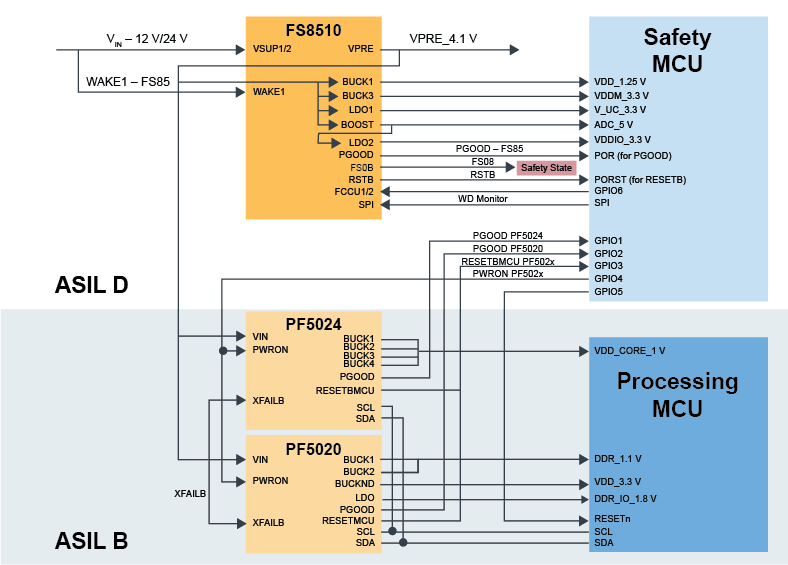

框图

BYLink Tool

BYLink Tool Block Diagram
获取框图PDF

支持的器件

电源管理

PMIC

  • PF5020: 面向汽车应用的多通道(5通道)PMIC——4个高功率通道，1个低功率通道，符合ASIL B安全等级
  • PF5024: 面向汽车应用的多通道(4通道)PMIC——4个大功率通道，符合ASIL B安全等级

安全SBC

  • FS84: 面向S32微控制器的安全系统基础芯片，达到ASIL B等级
  • FS85: 面向S32微控制器的安全系统基础芯片，达到ASIL D等级

功能

功能

  • OTP仿真
  • 电源序列
  • 安全和故障管理

接口

  • PC与演示套件之间的USB通信接口
  • 与PMIC设备的I²C通信接口

拓扑

  • FS8500器件
  • PF5024器件
  • PF5020器件

购买选项

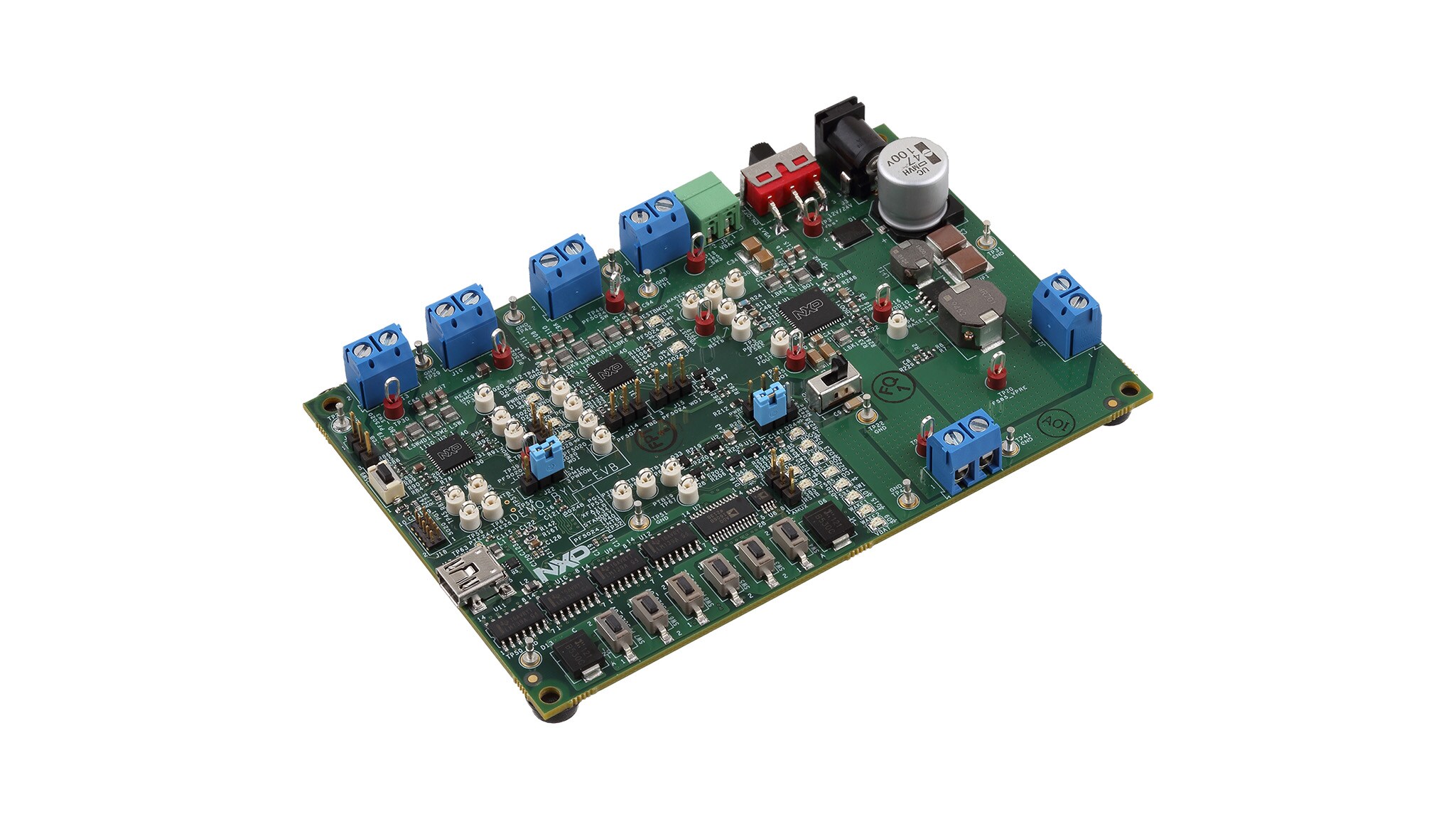

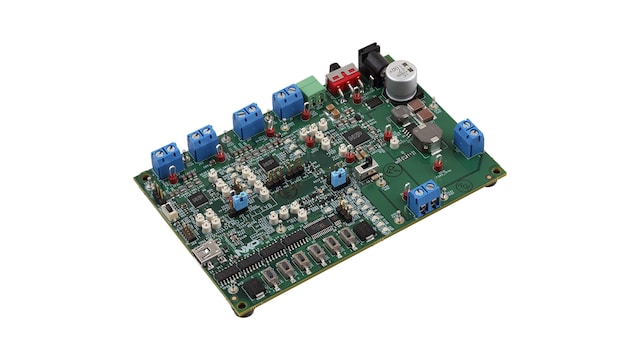

DEMO-BYL1-EVB-Image

点击展开

  • DEMO-BYL1-EVB
    正常供应

  • BYLink Multiprocessor Demo Board.

  • 套件包含:

    • 完成组装和测试的评估板，存放在防静电袋中
    • 3.0 ft USB-STD A转USB-B mini线缆
    • 板载跳接线
    • 快速入门指南
  • $360.24 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
