TJA1410 Standalone PMD Transceiver Evaluation Board

TJA1410-EVB 全新
正常供应

滚动图片以放大

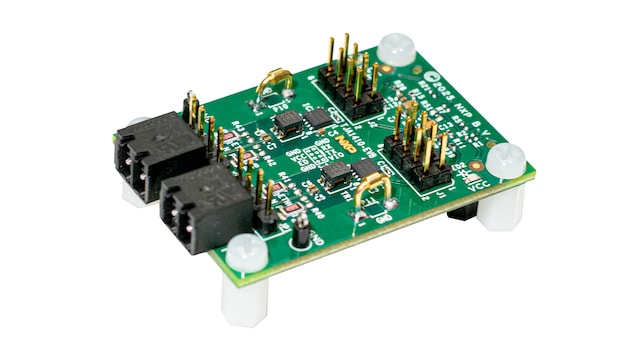

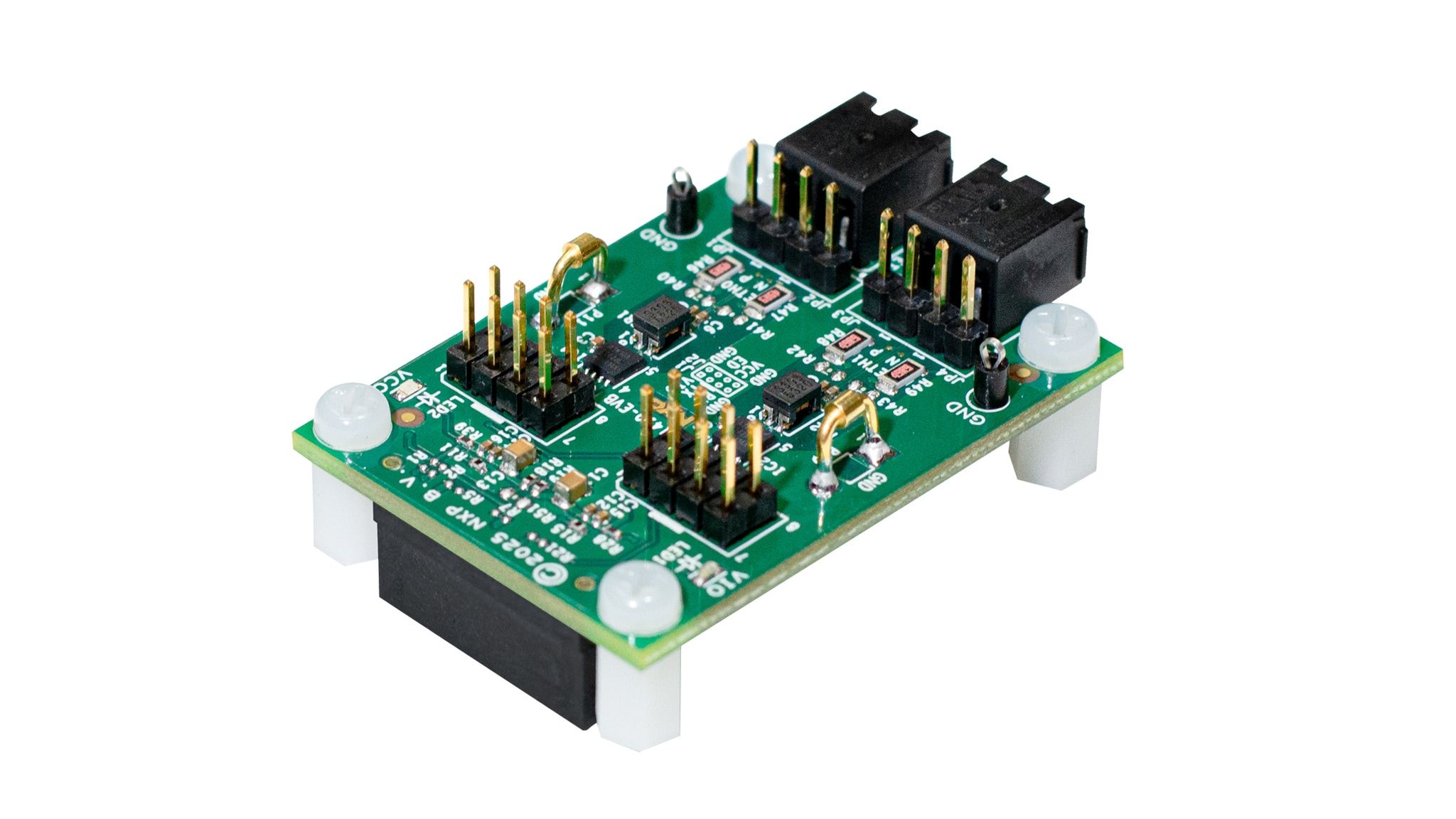

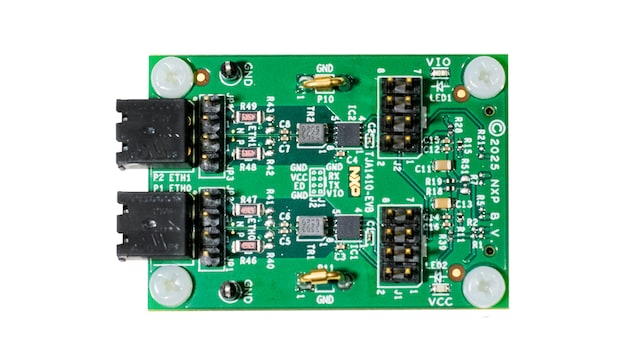

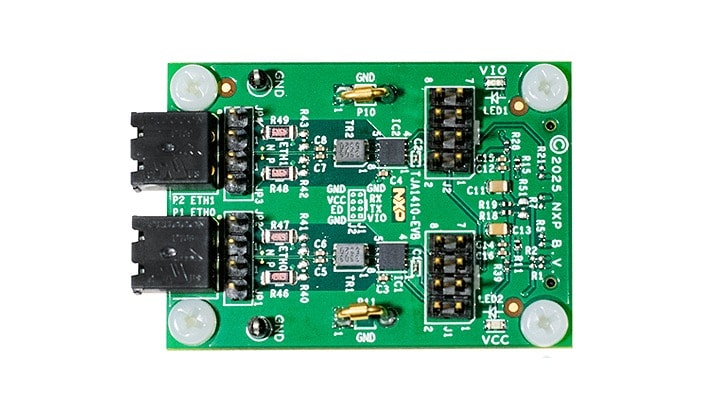

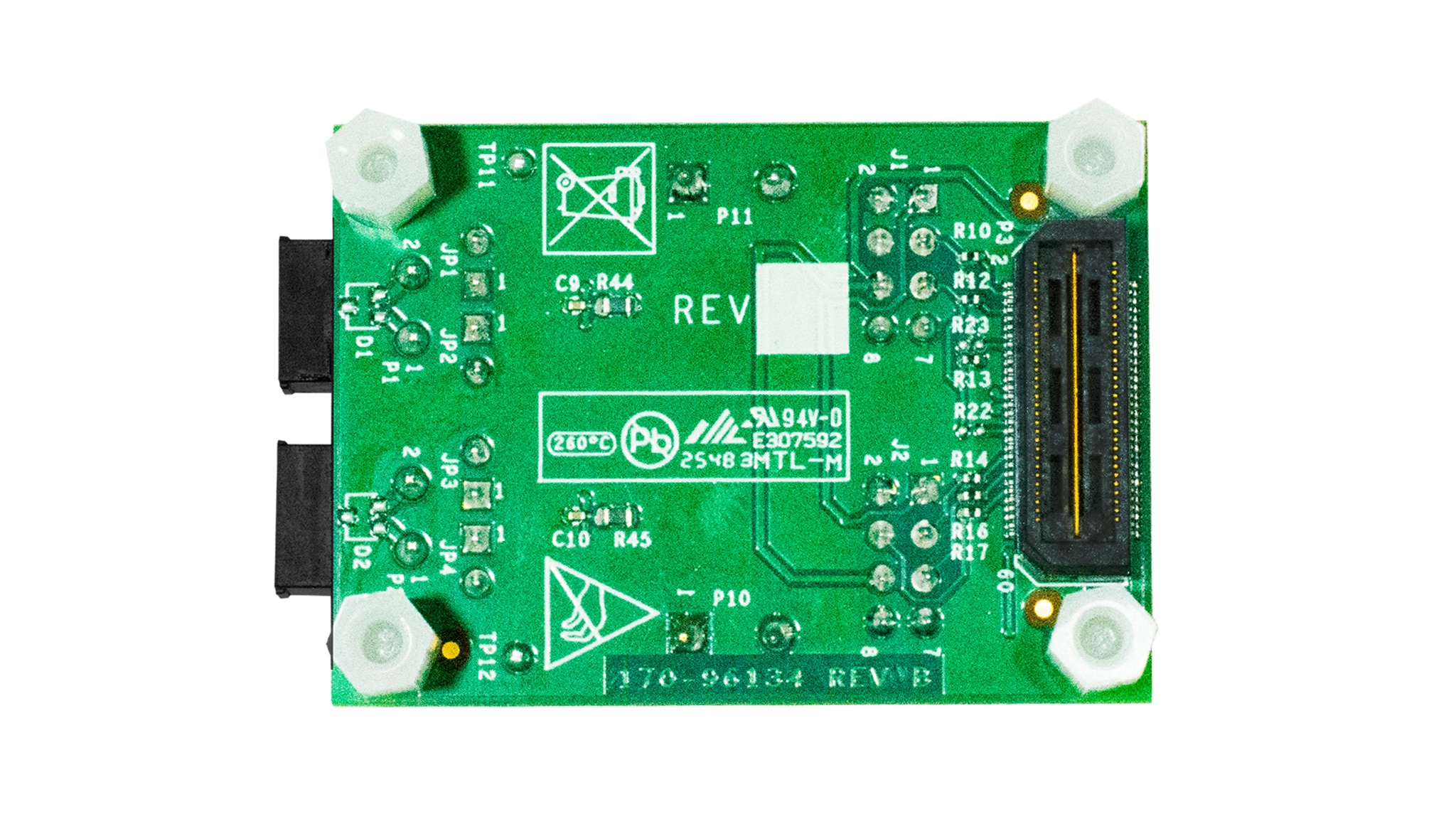

This PMD transceiver evaluation board features two TJA1410 PMD transceivers and 240 µH 10BASE-T1S common-mode chokes. Its compact form factor enables fast and convenient evaluation of 10BASE-T1S networks and the TJA1410 device. The board easily interfaces—via standard ribbon-cable connections—with a wide range of MCU evaluation boards that integrate an Ethernet MAC and 10BASE-T1S digital PHY IP, allowing developers to quickly prototype, test, and characterize PMD-level performance.

框图

TJA1410-EVB Block Diagram

TJA1410-EVB Block Diagram
获取框图PDF

支持的器件

接口

工业以太网PHY

  • TJF1410: 10BASE-T1S PMD工业收发器

汽车以太网PHY

  • TJA1410: TJA1410，10BASE-T1S PMD收发器

汽车以太网交换机

  • S32J100: S32J100高性能以太网交换机和网络控制器

处理器和微控制器

S32K汽车通用MCU

  • S32K5: S32K5汽车微控制器

S32N车载超高集成度处理器

  • S32N7: 面向软件定义汽车的S32N7超高集成度处理器

Features

  • 2 10BASE-T1S PMD transceiver channels via 2x TJA1410A
  • 2x 240 uH 10BASE-T1S Common Mode Chokes
  • End-node termination jumper
  • MDI connector
  • Two Open Alliance PMD transceiver interface connector options
  • Supply indicator LEDs

购买选项

TJA1410-EVB-Image

点击展开

TJA1410-EVB
正常供应

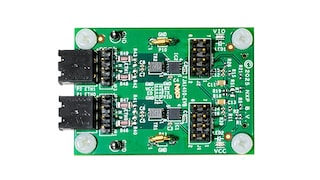

TJA1410 Standalone PMD Transceiver Evaluation Board.

    $113.50 USD
    待定库存
    加入购物车
    从分销商处购买
