BESS1500电芯监测单元(CMU)，能够监测18节串联电芯

RDBESS774A1EVB 正常供应

滚动图片以放大

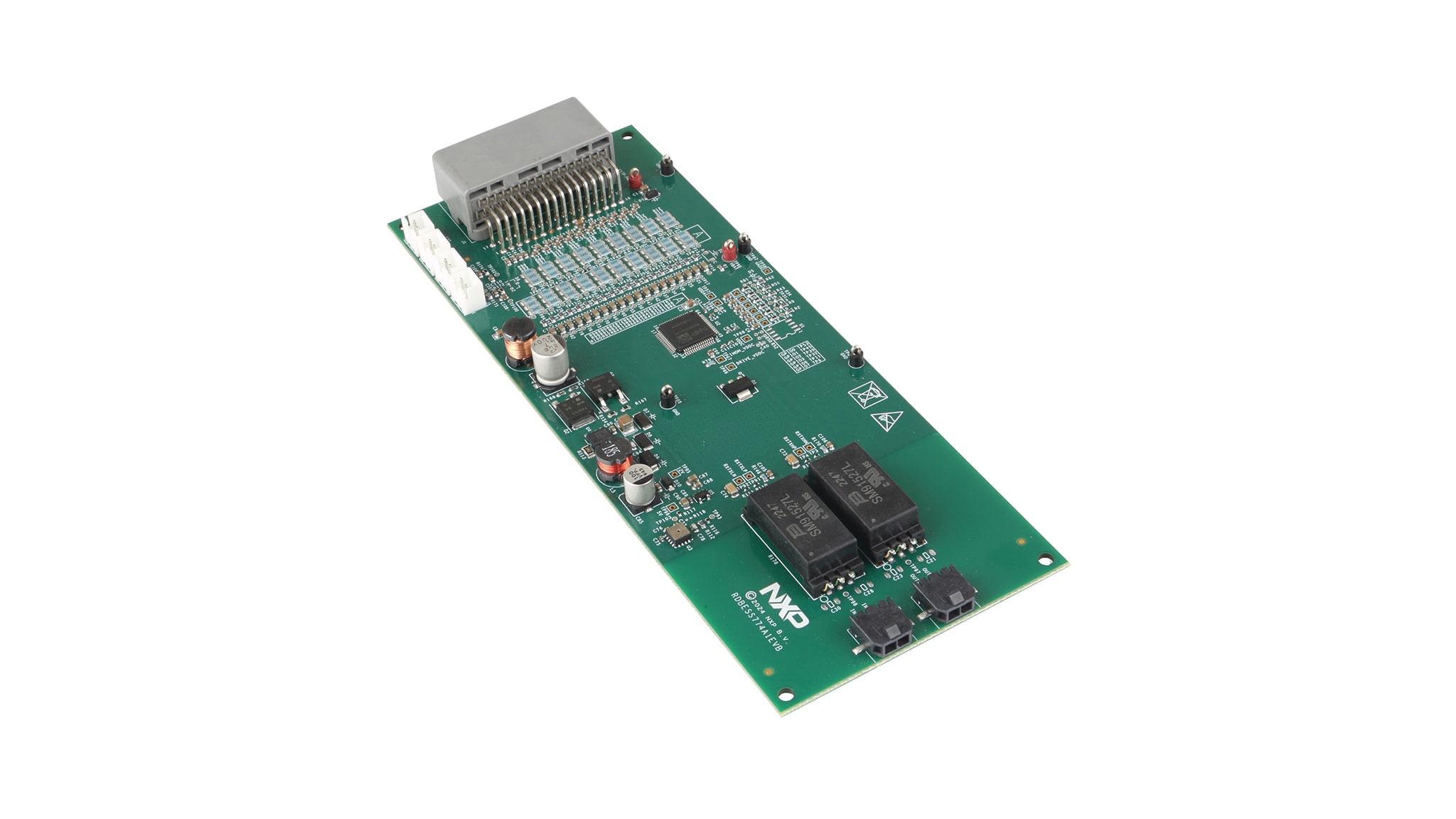

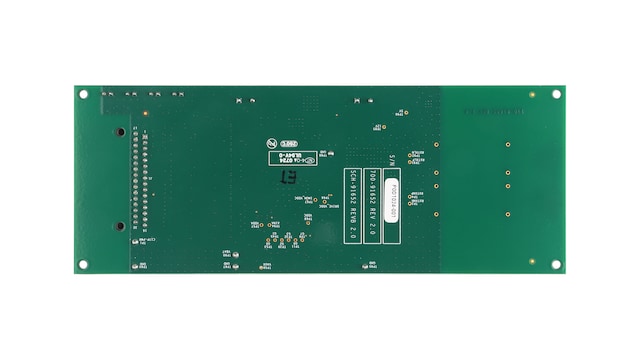

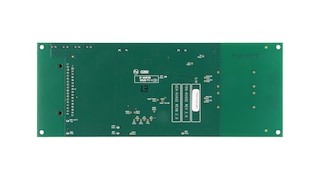

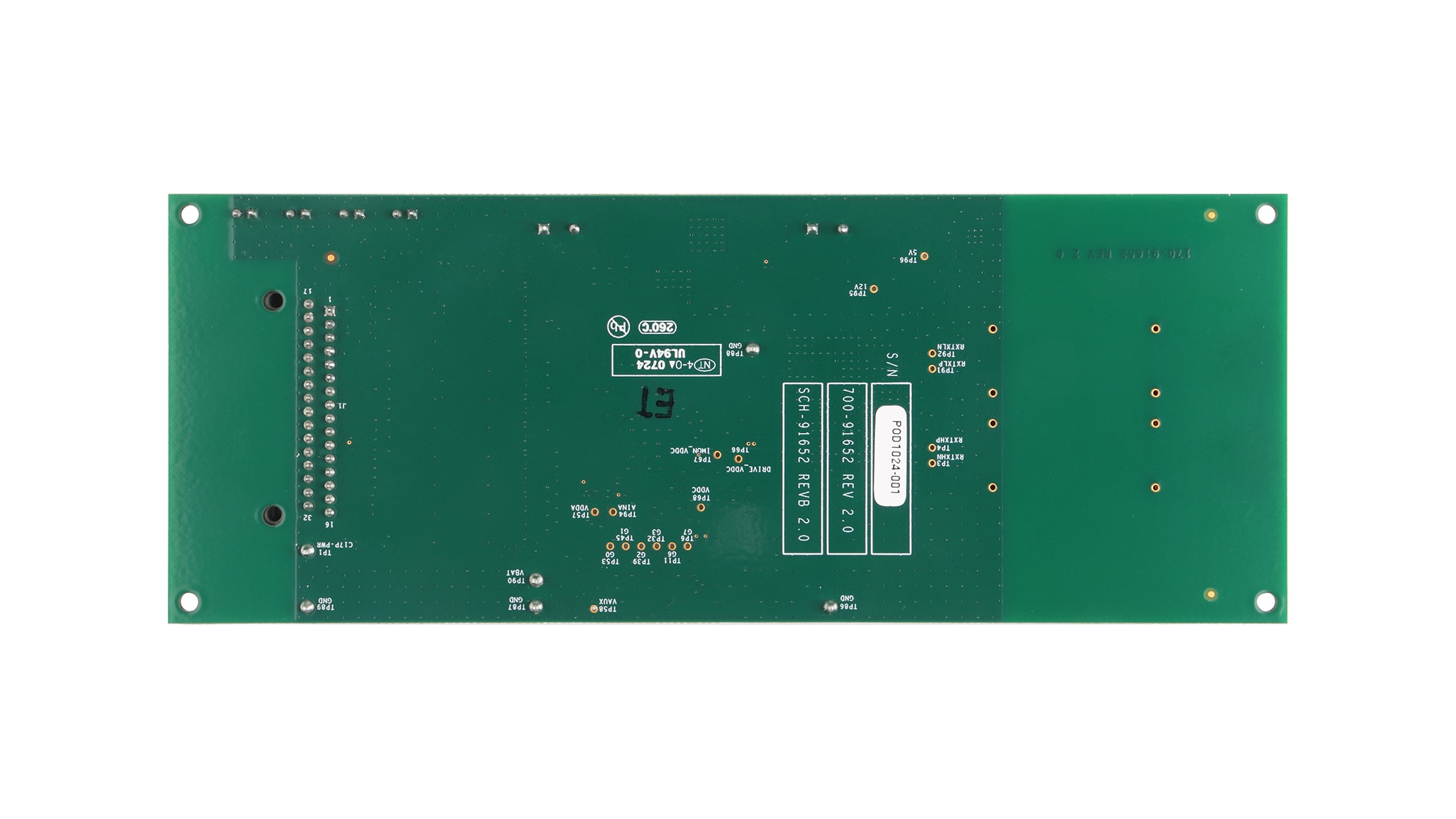

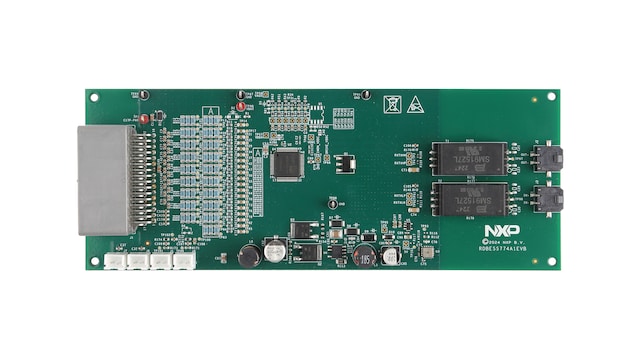

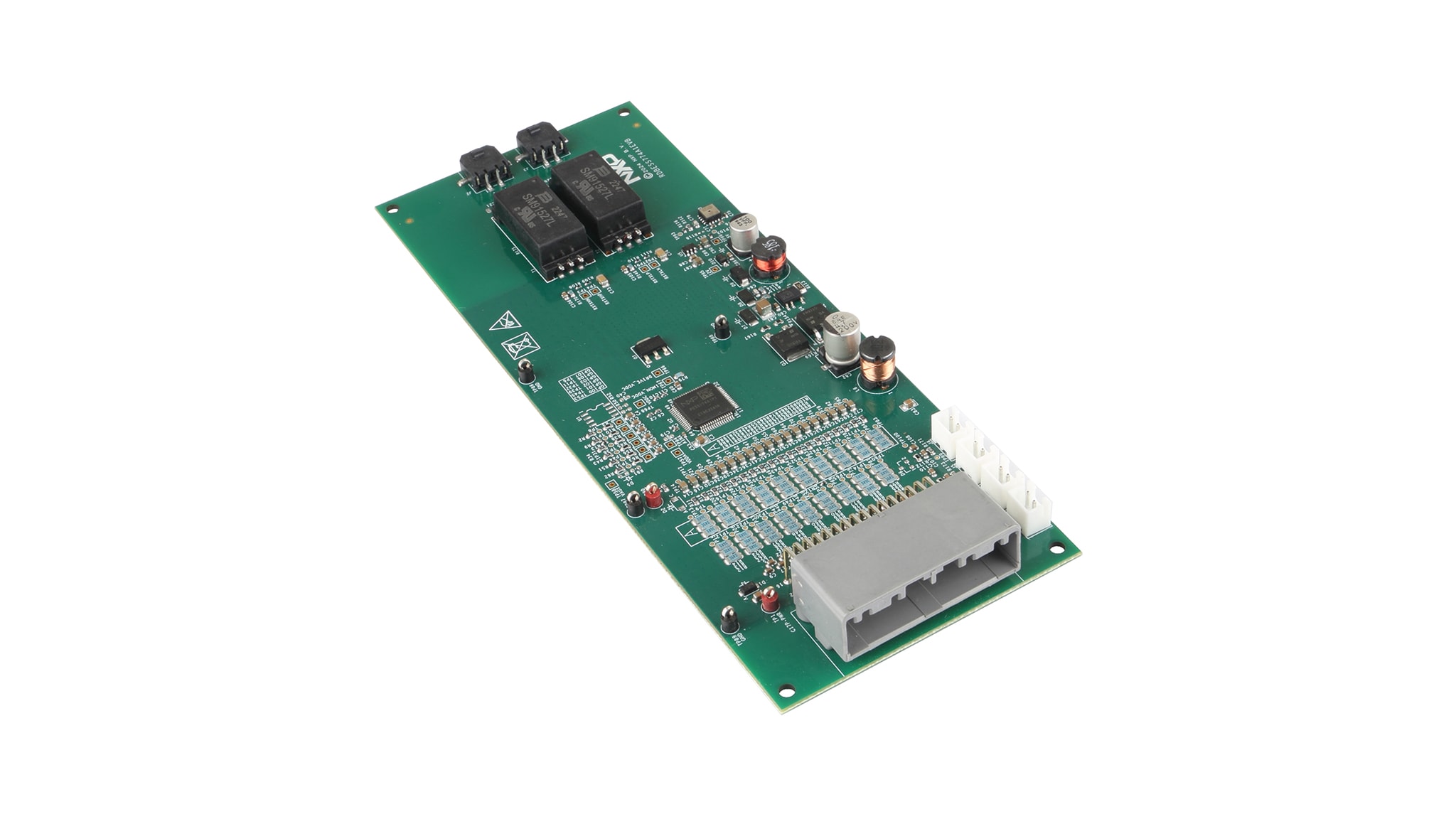

CMU1-RDBESS774A3EVB是电芯监测单元（CMU）参考设计，具有电子传输协议链路（ETPL）接口，能够与BMU进行通信。它是高压电池储能系统（BESS）硬件和软件快速原型制作的理想之选。该板包含一个MC33774A模拟前端（AFE），并配有高压变压器。

它可用于监测多达18个电芯的电池模块。总共有9个GPIO/模拟测量输入用于测量温度或其他因素。此板属于 RD-BESS1500BUN参考设计包。

框图

RDBESS774A1EVB

RDBESS774A1EVB Block Diagram
获取框图PDF

支持的器件

电源管理

电芯控制器

  • MC33774: 18通道锂离子电池控制器IC ASIL D

带集成电源开关的AC-DC控制器

  • TEA1721AT: 集成功率MOSFET通过高压启动的反激控制器，适用于最高11 W的低功率应用

传感器

LPG和CNG Gas：20至550kPa

  • FXPS7xx0A4: 模拟绝对压力传感器（20至550kPa）

特性

电压测量

  • 18通道BCC，最多可容纳54个电芯，可通过向菊花链添加更多CMU进行扩展
  • 终身保证的高精度电芯电压测量通道，具有平均和高级滤波功能

温度测量

  • 9个模拟输入（包括温度传感器）或具有高级滤波功能的通用IO

电芯平衡

  • 集成温控电芯平衡，最高可达300mA（使用默认设置）

压力传感

  • 热失控检测的车载压力传感器

通信

  • CMU和BMU之间的隔离ETPL通信

购买选项

RDBESS774A1EVB-Image

点击展开

  • RDBESS774A1EVB
    正常供应

  • BESS1500 Cell Monitoring Unit (CMU) with 18S Capability.

  • 套件包含：

    • 一个组装和测试好的评估板/模块，放在防静电袋中

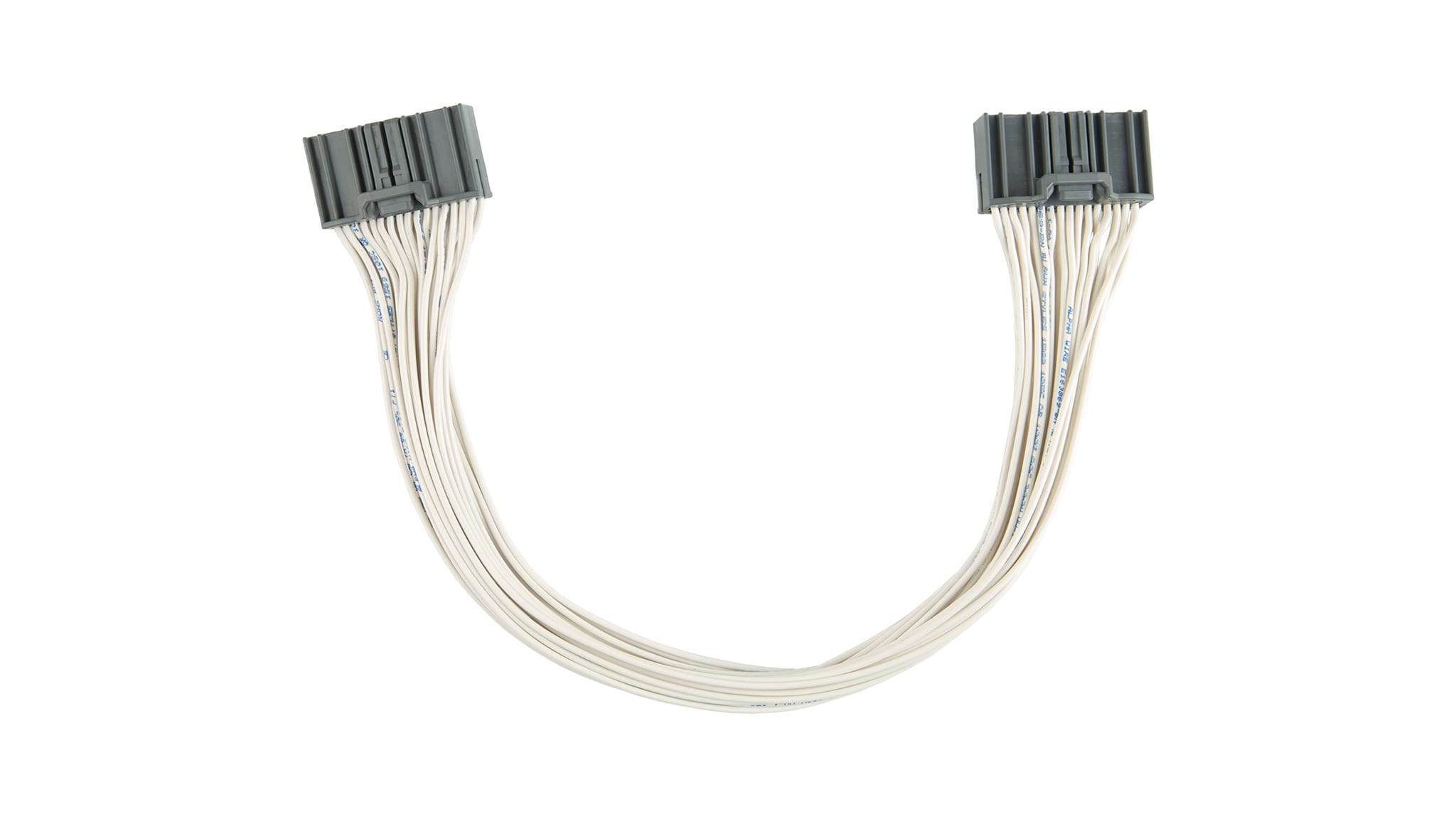

    • 1根电芯端子线缆

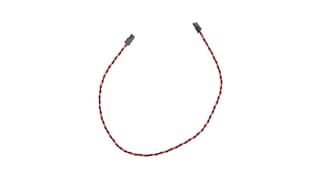

    • 一根变压器物理层（TPL）线缆
  • $236.47 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 8
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
