BESS1500电池接线盒(BJB)

RDBESS772BJBEVB 正常供应

滚动图片以放大

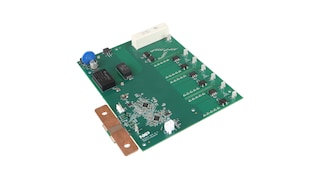

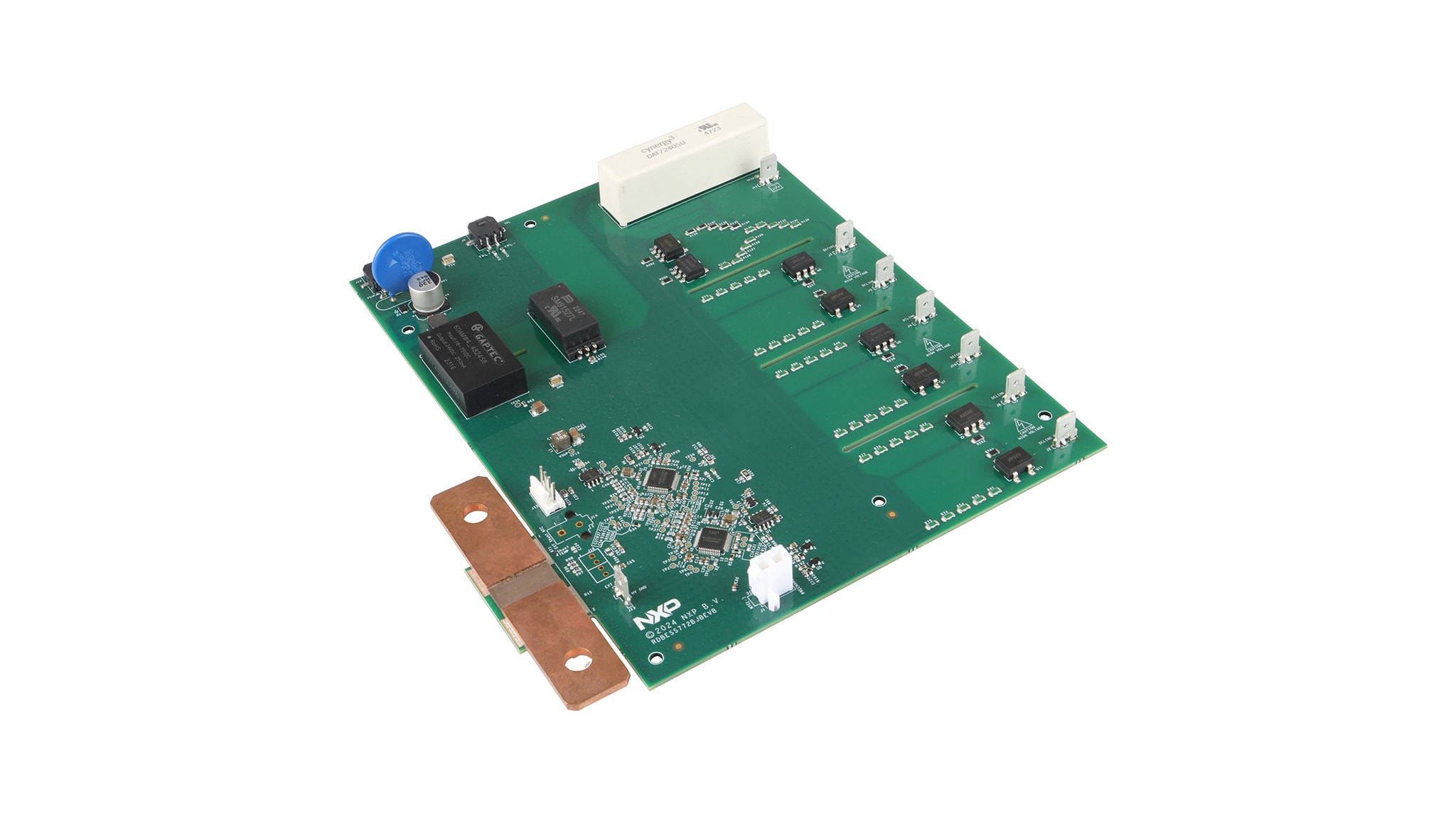

BJB-RDBESS772BJBEVB是具有电子传输协议链路（ETPL）通信功能的电池接线盒（BJB）参考设计。这个评估板包含两个MC33772电池传感器，可用于冗余的高压和电流测量，并进行隔离测量。

它配备了采样电阻用于精确测量电流，并且已经预留了接口，方便与霍尔传感器连接。可编程增益放大可以在几安培到500安培的范围内保持0.5%的测量精度。此板属于RD-BESS1500BUN参考设计包。

框图

RDBESS772BJBEVB

RDBESS772BJBEVB Block Diagram
获取框图PDF

支持的器件

电源管理

电芯控制器

  • MC33772C: 6通道锂离子电池控制器IC

特性

电压测量

  • 6次高精度高压测量

电流测量

  • 高达+/-500A的完全冗余电流测量
  • 0.5%测量误差（仅限IC级）

温度测量

  • 用于电流测量补偿的分流温度测量
  • 预充电电阻温度测量

隔离

  • 高压域和低压域之间的隔离电阻测量

通信

  • BJB和BMU之间的隔离ETPL通信

购买选项

RDBESS772BJBEVB-Image

点击展开

  • RDBESS772BJBEVB
    正常供应

  • BESS1500 Battery Junction Box (BJB).

  • 套件包含：

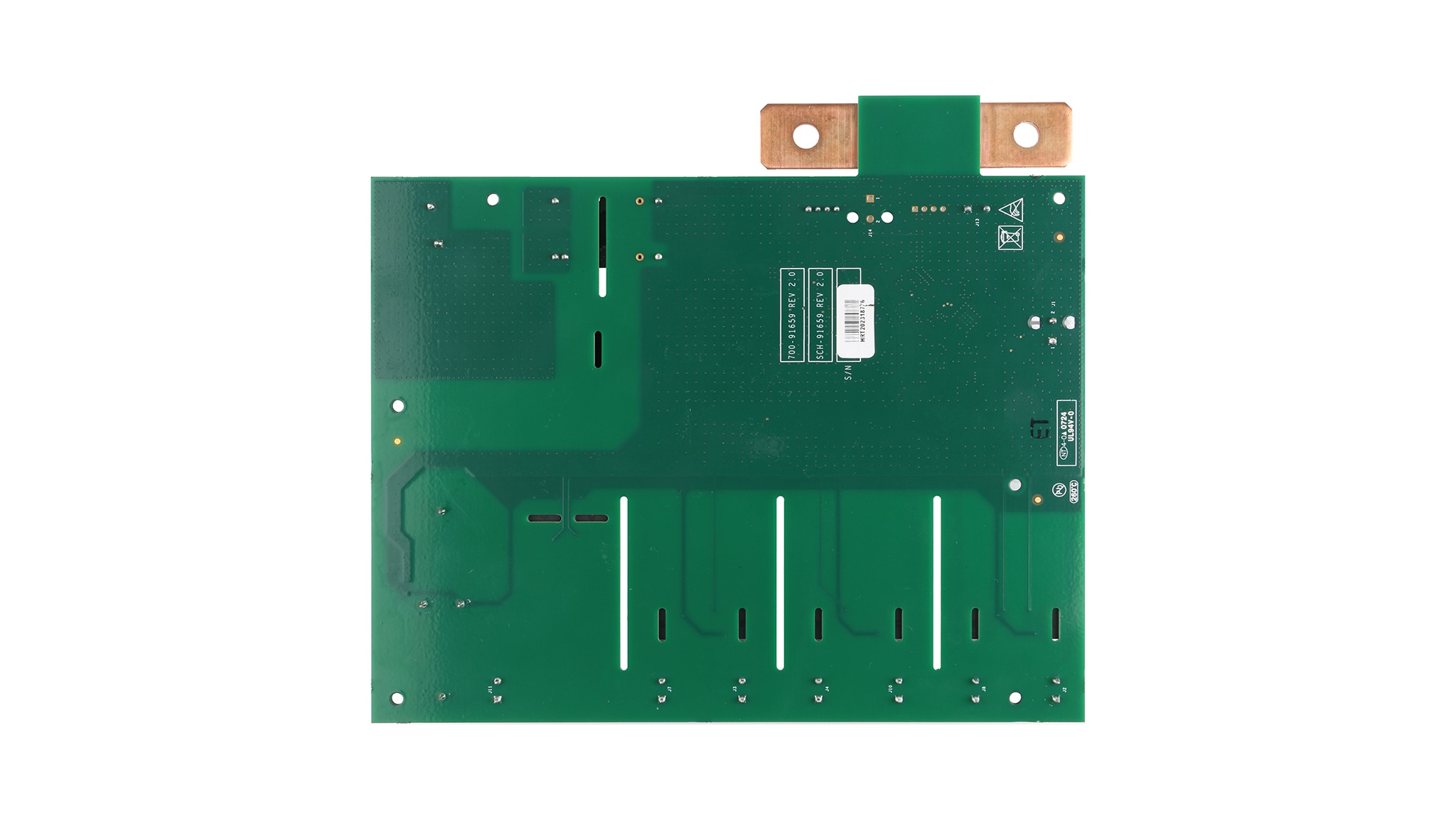

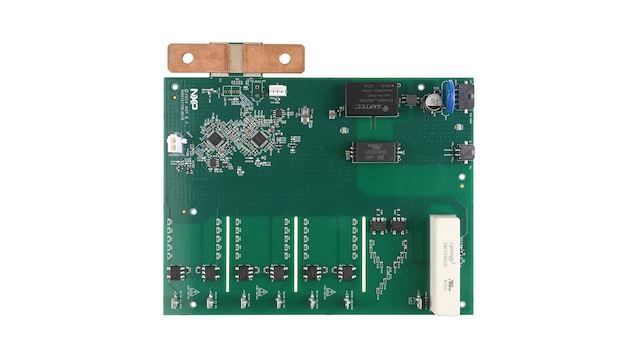

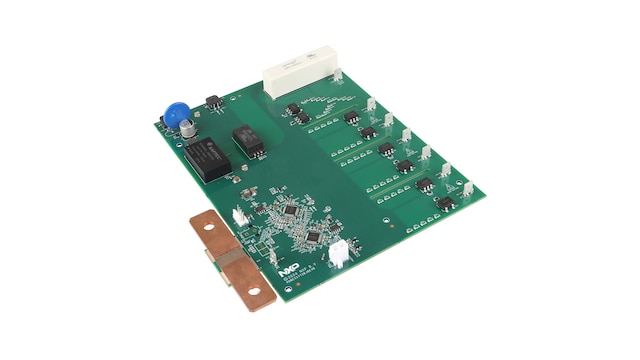

    • 1块RDBESS772BJBEVB板

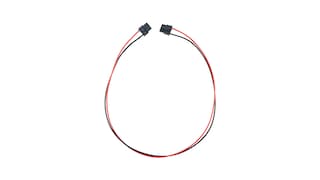

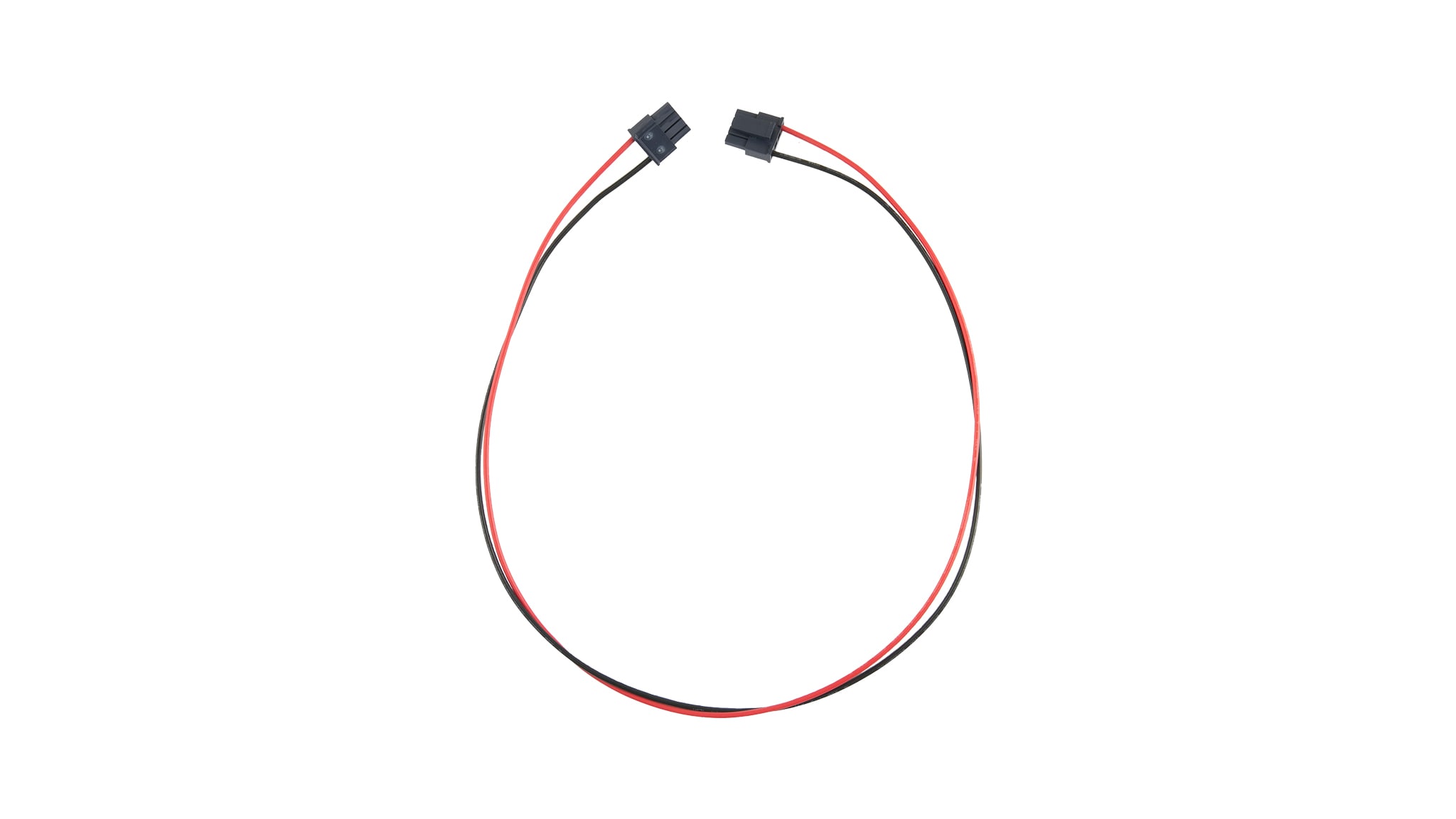

    • 1根电源线

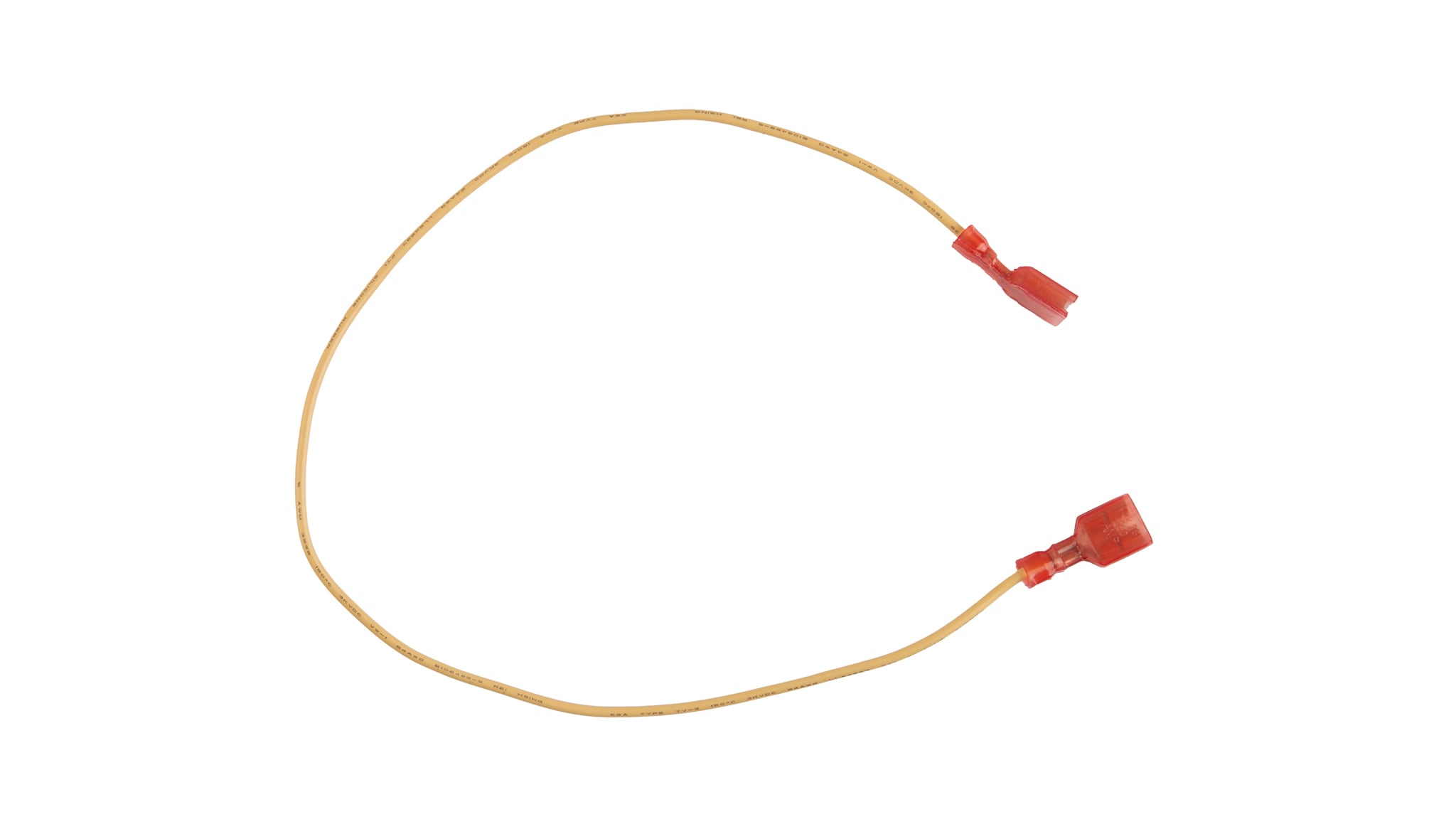

    • 6根高压测量线缆

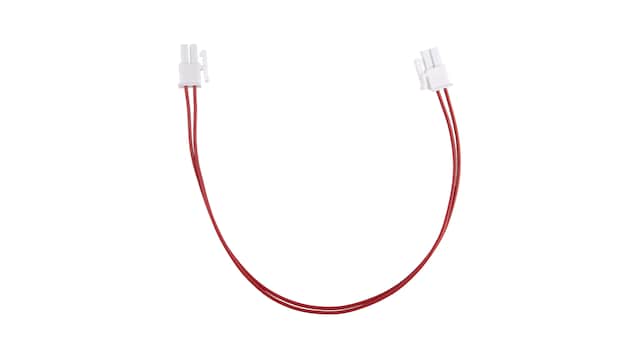

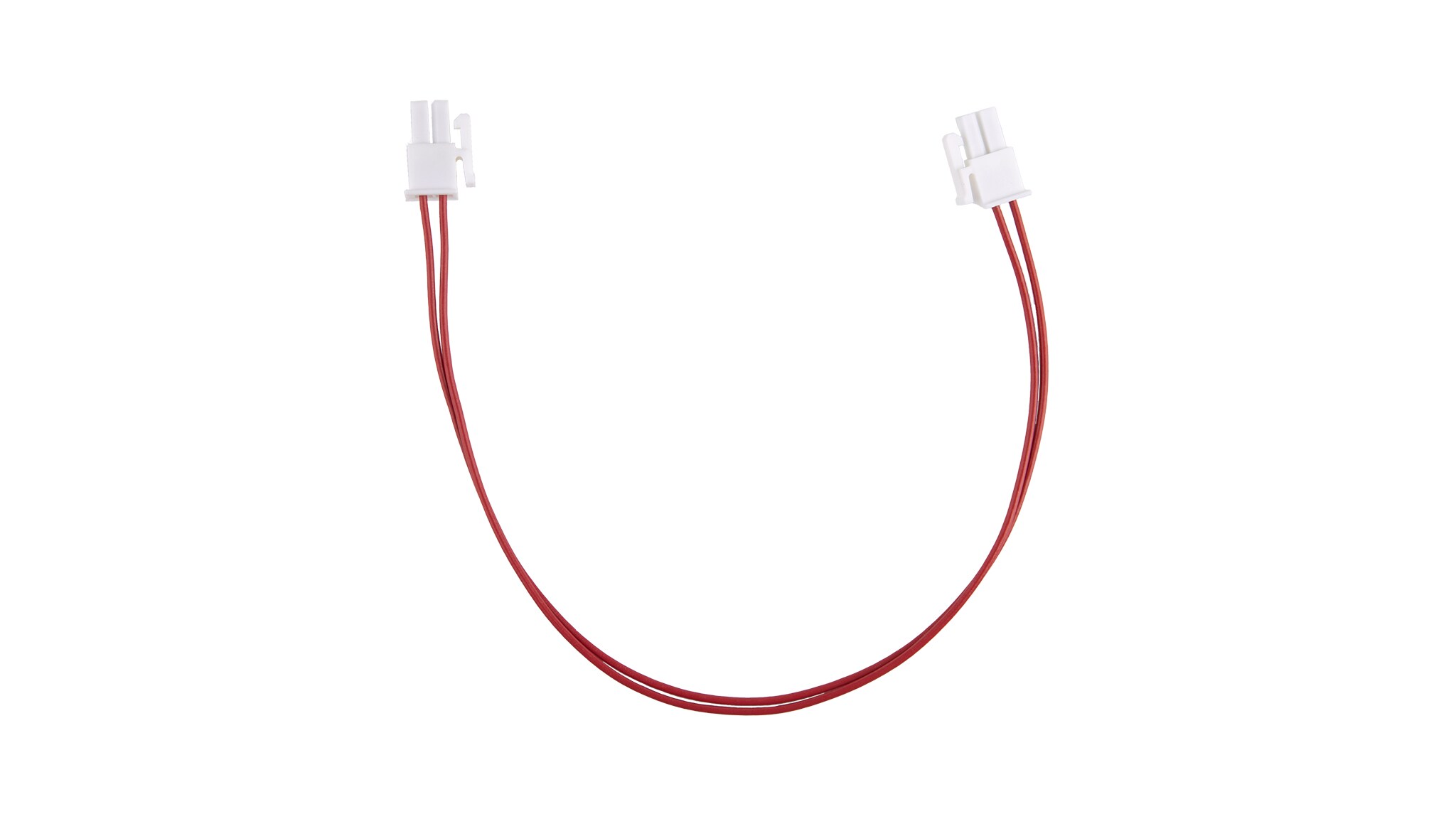

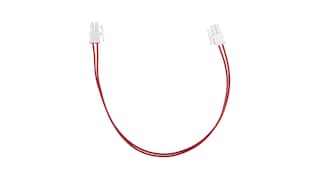

    • 两根热传感器线缆

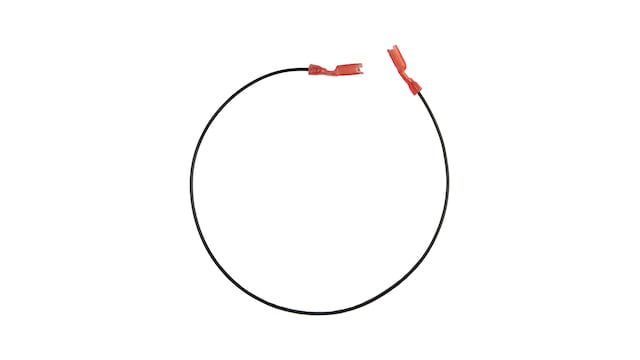

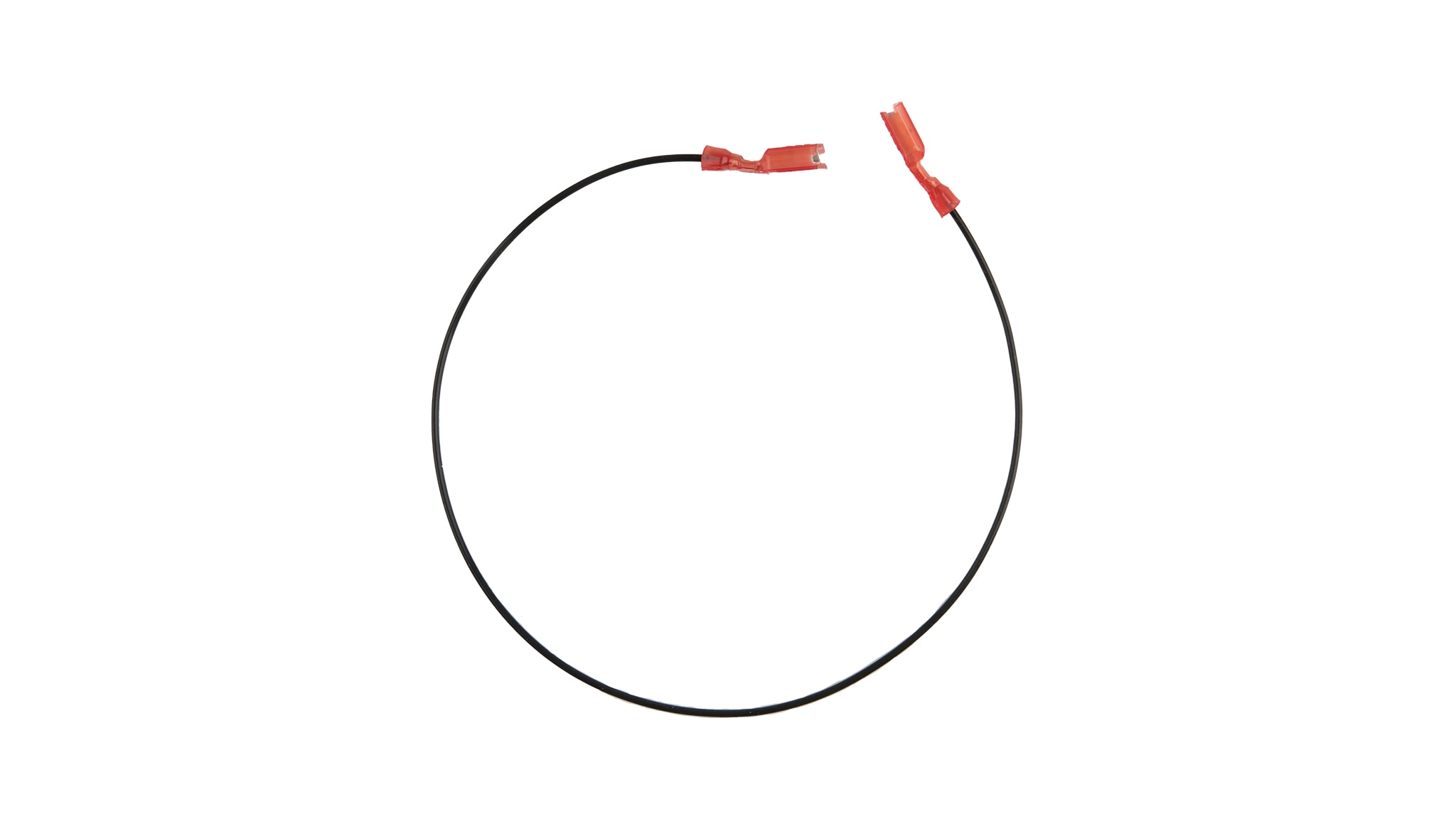

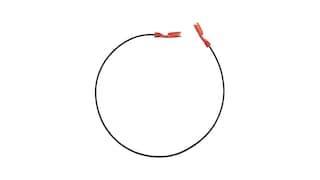

    • 1根机箱线缆
    • 1根接地线缆

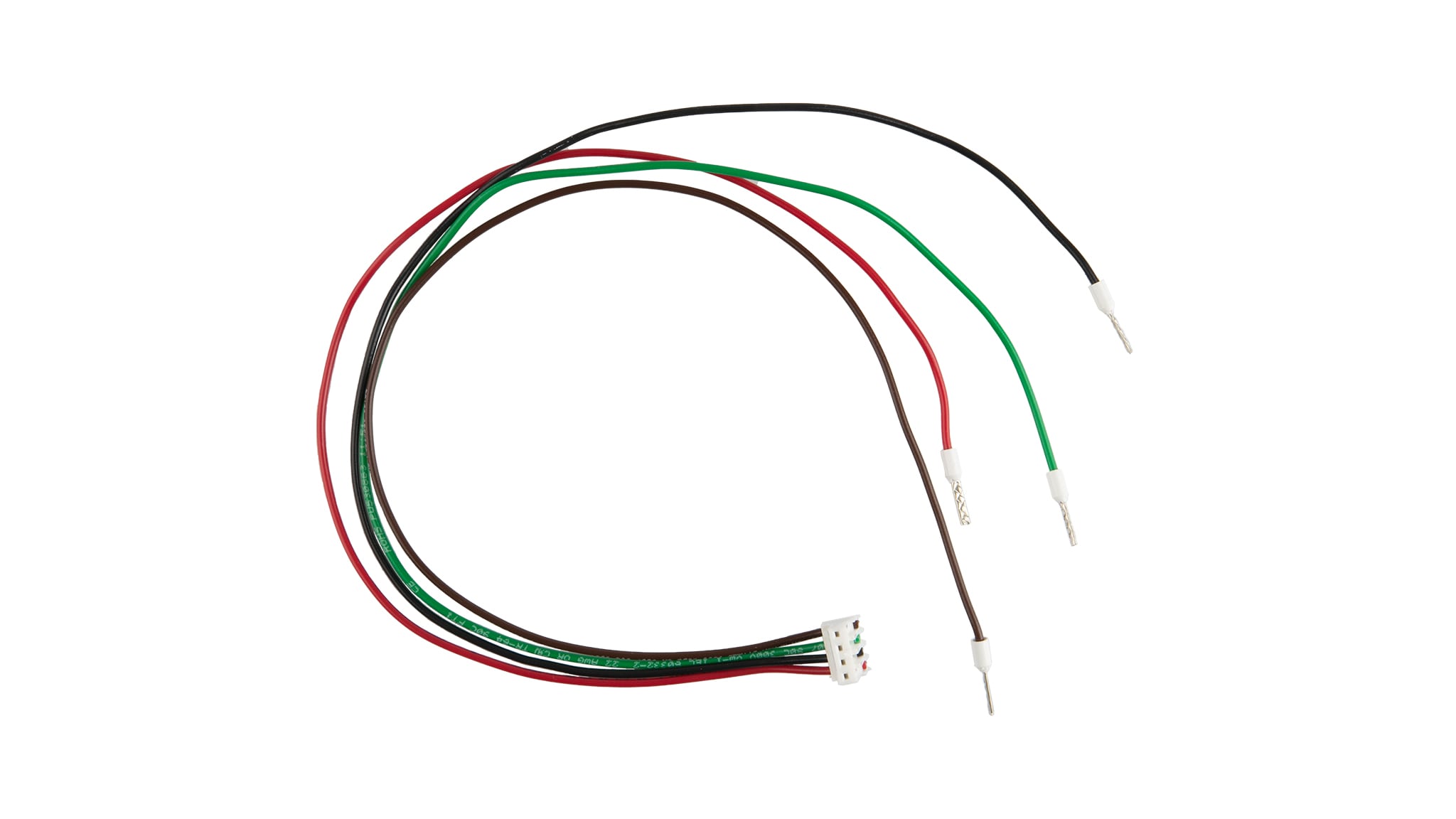

    • 两根霍尔传感器线缆
    • 1根电气传输协议链路（ETPL）线缆
    • 1个有机玻璃罩
  • $1060.21 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 2
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
