带NCI接口的汽车级NFC控制器

NCF3340AHN
正常供应

滚动图片以放大

恩智浦NCx3340能够将NFC技术轻松集成至汽车，具备NCI接口、较小的PCB规格、较少的外部BOM，并可通过一个小型天线符合全NFC Forum标准。

它采用经过优化的低功耗架构，并且集成了高效的电源管理单元。它支持输出级高达5.5 V的高输出功率，可在较长的距离下进行读/写。

这款免接触式前端具备高敏感度，并支持主动负载调制模式。该器件采用带Wettable Flank的40引脚HVQFN封装。

产品详情

框图

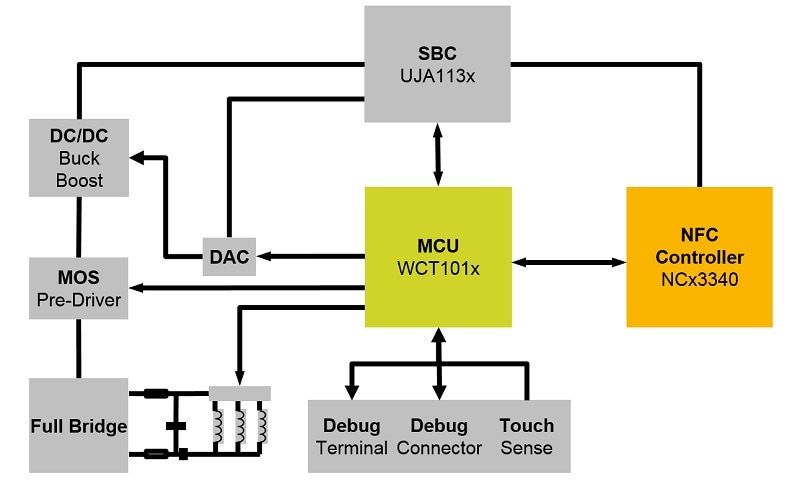

NFC + Wireless Charging Application Block Diagram

NFC + Wireless Charging Application Block Diagram
获取框图PDF

特征

  • 支持读/写模式的多种协议，包括ISO/IEC 14443 A/MIFARE、ISO/IEC 14443 B、FeliCa和ISO/IEC 15693
  • 支持有源和无源对等模式，完全符合NFCIP-1和NFCIP-2规范
  • 支持符合ISO/IEC 14443 A和FeliCa的卡仿真模式
  • 根据NFC Forum NCI标准，支持主机接口SPI总线，I²C总线和NCI协议接口
  • 面向27.12 MHz晶振的内部振荡器
  • 集成PLL单元，适用于外部参考时钟
  • 集成电源管理单元
  • 电源：2.3至5.5 V
  • 主机关机后可切换到自动模式
  • 通过射频场和内部定时器自动唤醒
