注：不建议新设计使用。对于未来的应用，请使用CLRC663 Plus。

PN512是被广泛采用的NFC前端——每年支持100亿以上的NFC传输。它是一款高集成度的NFC前端，用于13.56MHz频率的免接触式通信。该NFC前端利用非凡的调制和解调概念，该概念完全集成，适用于多种免接触式通信方法和协议。它具有高效率、低功耗待机电流，并能通过多种接口实现灵活的器件与主机连接。它与所有恩智浦智能卡产品兼容，包括MIFARE®、整个NTAG®系列以及整个SmartMX®系列。

查看产品图片

数据手册

应用笔记

产品详情

特性

读写器功能符合ISO/IEC 14443A&B、MIFARE^®、FeliCa和NFC论坛标签类型(Jewel、MIFARE UltraLight^®、FeliCa、MIFARE^® DESFire^®)
完整的点对点(ISO/IEC 18092 NFC-IP1)和卡模拟功能
支持天线信号增强器，可通过EMVCo认证
集成MIFARE读卡器支持。
支持更广泛的温度范围。

文档

快速参考恩智浦文档类别

1-10 / 20 文件

紧凑列表

HVQFN32; Standard product orientation 12NC ending 118[SOT617-1_118]

PDFJun 13, 2013版本更新 1.0

plastic thermal enhanced very thin quad flat package; no leads; 40 terminals; body 6 x 6 x 0.85 mm[SOT618-1]

PDFNov 25, 2022版本更新 1.1
plastic thin fine-pitch ball grid array package; 64 balls[SOT1336-1]

PDFFeb 8, 2016版本更新 1.0
HVQFN32: plastic thermal enhanced very thin quad flat package; no leads; 32 terminals; body 5 x 5 x 0.85 mm[SOT617-1]

PDFFeb 8, 2016版本更新 1.0

NFC Reader Library for Linux installation guidelines[AN11802]

PDFDec 21, 2022版本更新 1.8
Quick Start Up Guide PNEV512B Board[AN11308]

PDFSep 26, 2018版本更新 2.5
AN1445 Antenna design guide for MFRC52x, PN51x, PN53x; AN1444 RF Design Guide including Excel Calculation sheet[AN1445_AN1444]

ZIPJun 26, 2018版本更新 1.3
Quick Start-up Guide for EXPLORE-NFC working with Raspberry Pi[AN11480]

PDFMay 15, 2018版本更新 2.6
Measurement and tuning of a NFC and Reader IC antenna with a MiniVNA[AN11535]

PDFNov 3, 2014版本更新 1.1
Guide about how to port the Passive Target example from the NFC Reader Library to another MCU[AN11583]

PDFAug 12, 2014版本更新 1.0
How to Scale Down the NXP Reader Library[AN11342]

PDFMar 11, 2013版本更新 1.0
Fast Verification of PN512 and amplifier[AN11038]

PDFOct 5, 2012版本更新 1.2
AN1425 RF Amplifier for NFC Reader IC's; AN166510 Amplifier antenna matching calculation (Excel)[AN1425_AN166510]

ZIPAug 1, 2011版本更新 2.4
AN108711 Tips and Tricks for PN51x Integration[AN108711]

PDFOct 1, 2010版本更新 1.1
NFC-FRI SDK (NFC Forum Reference Implementation)[AN10664_1_NFC_FRI_SDK_206810]

ZIPDec 3, 2007版本更新 1.0
AN108511; PN51x Design -In Kit Quick Start Guide[AN108511]

PDFMay 23, 2006版本更新 1.1

NXP Near Field Communication (NFC) transceiver PN512 for low-cost electronic devices[939775017217]

PDFMay 7, 2012版本更新 1.6

Full NFC frontend[PN512]

PDFMar 17, 2020版本更新 5.3

恩智浦读卡器库用户手册，以 CLRC663 和 PN512 Blueboard 读卡器项目为基础[UM10663]

PDFAug 5, 2018版本更新 1.3
NXP Reader Library Peer to Peer User Manual based on CLRC663 and PN512 Blueboard Reader projects[UM10721]

PDFAug 5, 2018版本更新 1.2

设计资源

设计文件

收到完整的详细信息。 请参阅产品足迹及更多信息电子CAD文件.

硬件

快速参考恩智浦板类型.

2 硬件

评估板和开发板
PN512读卡器开发板
正常供应

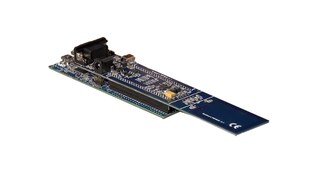

PNEV512B
评估板和开发板
EXPLORE-NFC - element14独家供应
试生产

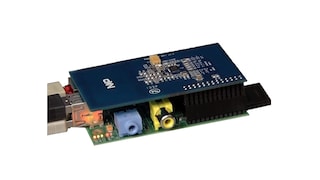

PNEV512R

4 硬件

模块
NFC WLC Technology Elements

The CISC TE support NFC-based WLC that allows small batteries, as they can be charged on a regular basis without any mechanical connector. Furthermore, it allows communic...

By CISC Semiconductor GmbH Gold 合作伙伴
模块
EFT-NFC-RS232-01

EFT-NFC-USB is NFC Dongle designed to facilitate the integration of 13.56 MHz contactless connectivity. It is built-in with a full features NFC protocol stack controlled...

By EFF'INNOV Technologies Gold 合作伙伴
