随着人们对于汽车安全性的要求日益提高，基于雷达的高级驾驶员辅助系统(ADAS)正在迅速普及。在过去，由于系统、物料成本和物理尺寸的限制，雷达主要用于高档车和前向雷达应用。MPC577xK系列能够提供前向雷达以外的解决方案，帮助雷达进入主流车型和其他卫星雷达节点。

MPC577xK系列32位MCU基于Power Architecture^®技术构建，在一个芯片上实现了高水平的数字与模拟集成和性能，适用于新一代基于雷达的高级驾驶员辅助系统(ADAS)和工业控制应用。

MPC577xK系列在MCU中集成了现有雷达系统的常用组件，如FPGA、ADC、DAC和SRAM，无需额外的外部组件，降低了系统总体组件数量、PCB尺寸和软件复杂性。MPC577xK MCU系列采用MR2001 77 GHz封装雷达前端芯片组，为自适应巡航控制、紧急制动系统和盲点检测等ADAS应用以及工业控制应用提供了一个完整的系统级雷达解决方案。MPC577xK MCU是SafeAssure ^®功能安全解决方案。

数据手册

参考手册

产品详情

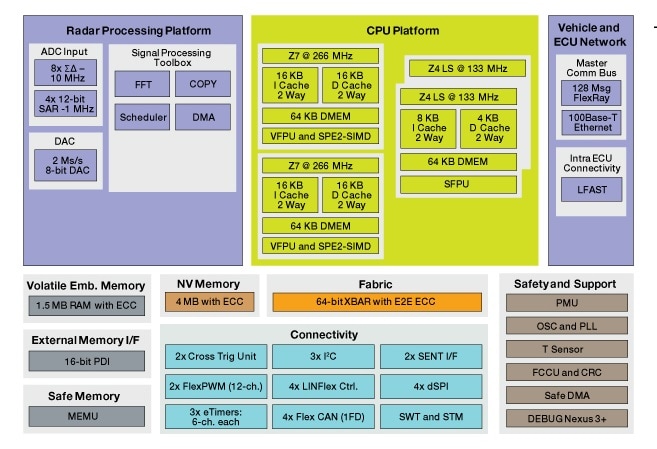

框图

MPC577xK Block Diagram

MPC5xxx 32-bit MCU for ADAS Applications

获取框图PDF

特征

CPU平台

处理内核：两个e200z7 (266MHz)
功能安全内核2：锁步模式下的e200z4 (133MHz)

雷达处理平台

信号处理工具箱(SPT)：FFT加速器、DMA
ADC输出：8个SD – 10 MHz、4个12位 SAR -1 MHz
DAC：2Ms/s 8位DAC

车辆和ECU网络

以太网, FlexRay™, LFAST

存储器

NVM：4 MB，带ECC
SRAM：1.5 MB，带ECC
支持的外部存储器：16位PDI

数据连接

CTU、IIC、SENT、FlexPWM、LinFlex、dSPI、eTimers、CAN-FD、SWT、STM
