低复用率通用LCD驱动器

PCF8576D 正常供应

PCF8576D是一款外围器件，能驱动几乎任何低复用率液晶显示器(LCD)。可为任何包含最多4背板和40分段的静态或多路复用LCD生成驱动信号。方便级联进行大型LCD应用。PCF8576D兼容大多数微控制器并通过两线双向I²C总线进行通信。通过带有自动递增寻址的显示RAM、硬件从地址寻址以及显示存储器切换（静态和多路复用驱动模式）使通信开销最小化。

  • PCF8576DT/2不得用于新设计。替代件PCF85176T/1适合工业应用
  • PCF8576DT/S400/2不得用于新设计。替代件PCA85176T/Q900/1适合汽车应用

产品详情

框图

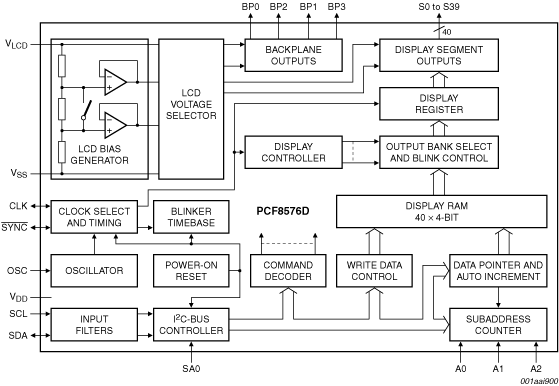

Block diagram: PCF8576DH, PCF8576DT, PCF8576DU

获取框图PDF

特征

  • 适合汽车应用的AEC-Q100 (PCF8576DT/S400/2)
  • 单芯片LCD控制器和驱动器
  • 可选背板驱动配置：静态或者2、3、4背板多路复用
  • 可选显示偏置配置：静态、1/2或1/3
  • 带有电压跟随缓冲器的内部LCD偏置生成
  • 40个段码驱动：
    • 最多20个7段码数字字符
    • 最多10个14段码字母数字字符
    • 最多160元素的任何图形
  • 用于存储显示数据的40 × 4位RAM
  • 跨越器件子地址边界进行自动递增显示数据加载
  • 静态和1/2驱动模式的显示存储器组切换
  • 通用闪烁模式
  • 可为LCD和逻辑电压独立供电
  • 宽范围的电源：从1.8 V至5.5 V
  • 宽范围的逻辑LCD电源：
    • 从适用于低阈值LCD的2.5 V
    • 最大至适用于高阈值扭曲向列LCD的6.5 V
  • 低功耗
  • 400 kHz I²C总线接口
  • 可级联进行大型LCD应用（最多可有2560个元素）
  • 无需外部组件
  • 兼容玻璃覆晶(COG)技术
  • 用硅栅CMOS工艺制造
