PCA8537和PCF8537评估板

OM13500A
使用寿命终止

滚动图片以放大

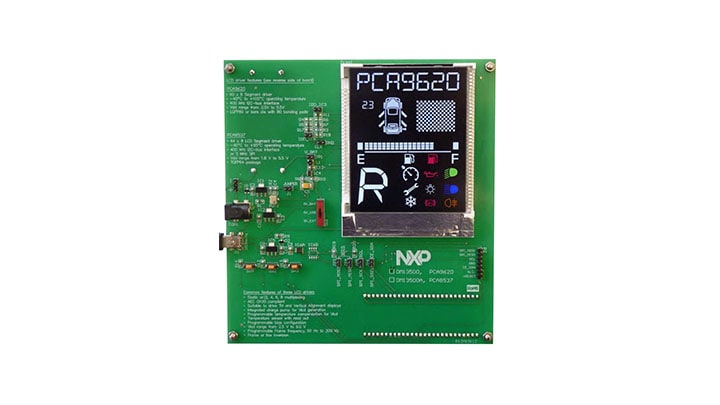

OM13500A是一个LCD演示板，可用来演示和评估PCA8537和PCF8537段式驱动器。该电路板由LPCXpresso微控制器板来控制，此板包含Cortex M0控制器LPC1115。可以下载免费IDE来修改软件。此电路板可通过两节AA电池、AC适配器或USB来提供电源。

产品详情

支持的器件

接口

LCD驱动器

  • PCA8537: 复用率最高为1:8的汽车级LCD驱动器
  • PCF8537: 复用率最高为1:8的工业级LCD驱动器

特征

微控制器

  • 插入带LPC1115微控制器的OM13035 LPCXpresso电路板

电源管理

  • 电源可以通过2节AA电池、USB或AC适配器/外接电源来提供。这还可用于外置VLCD

显示器

  • 演示PCA8537和PCF8537 (TQFP64) LCD驱动器
  • 具有集成背光的垂直对准(VA)显示模块

用户组件

  • 3个按钮

工具和操作系统支持

  • 用户可修改固件，通过USB在系统/在应用程序编程(ISP/IAP)

购买选项

OM13500A-Image

点击展开

  • OM13500A
    使用寿命终止

  • PCA8537 and PCF8537 evaluation board.

  • 数量为 1
