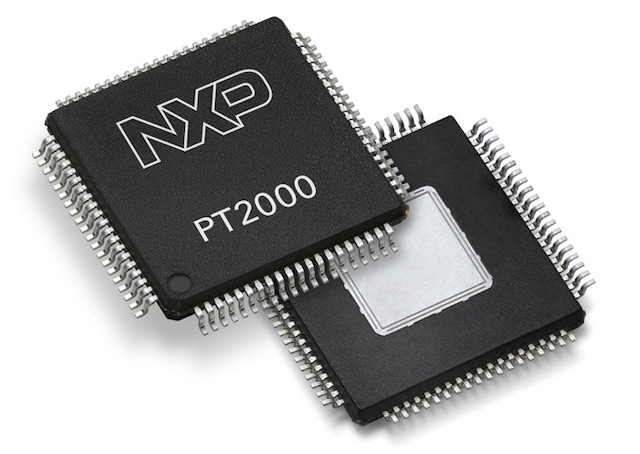

面向电磁控制的可编程栅极驱动器

PT2000 正常供应

滚动图片以放大

面向电磁阀控制的可编程PT2000栅极驱动器集成了6个微核、7个外部MOSFET高侧预驱动器，和8个外部MOSFET低边预驱动器。两个低边驱动器可以用作直流/直流转换器。微核允许6个任务独立于主系统微控制器(MCU)并行运行。PT2000还包括诊断、自动DC/DC控制、电流计量和喷射结束感测。

框图

PT2000: 8-Channel Programmable Solenoid Controller Gate Driver

PT2000 Simplified Block Diagram
获取框图PDF

功能

主要特性

  • 电池电压范围为：5.0 V < VBATT < 72 V
  • 预驱动器的工作电压高达72 V，可选择压摆率
  • 7个高边预驱动PWM，可高达100 KHz (30 n库伦)
  • 6个低边预驱动PWM，可高达100 KHz (30 n库伦)
  • 两个低边预驱动PWM，高达400 KHz (30 n库伦)，可用于DC/DC
  • 12个可选择的预定义VDS监控阈值
  • 用于保护微代码的加密功能
  • 集成的喷射结束检测功能

产品长期供货计划

  • 该产品包含在恩智浦产品长期供货计划中，为您的嵌入式设计确保产品的供货稳定性。MC33PT2000包含在15年产品长期供货计划中
