Get started

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the SEN-GEN6-SKT board.

1.1 Kit contents/packing list

The SEN-GEN6-SKT contents include:

One automotive Sensor Socket board (SEN-GEN6-SKT)
Four red jumpers
Two white jumpers
Three green jumpers
Seven purple jumpers

标记为完成:1.1 Kit contents/packing list

1.2 Additional hardware

The SEN-GEN6-SKT kit can be coupled with SEN-SPI-BOX.

标记为完成:1.2 Additional hardware

1.3 User manual

Refer to UM11559, SEN-GEN6-SKT board for additional details on the featured components and board configuration.

标记为完成:1.3 User manual

下一页Get to know the hardware

Get to know the hardware

2.1 Board description

The SEN-GEN6-SKT board is a socket kit designed to evaluate the FXLS9xxxx and FXPS7xxxx sensors. The board supports different communication configurations such as SPI, I²C, DSI3 or PSI5. Before inserting a device into the socket, make sure you have properly configured the board to support the desired protocol.

标记为完成:2.1 Board description

2.2 Board features

Supports both FXLS9xxxx and FXPS7xxxx sensors
Supports SPI, I²C, DSI3 and PSI5
Dedicated Beagle and NXP MDI interfaces
Colored test points for scope probing

标记为完成:2.2 Board features

2.3 Board components

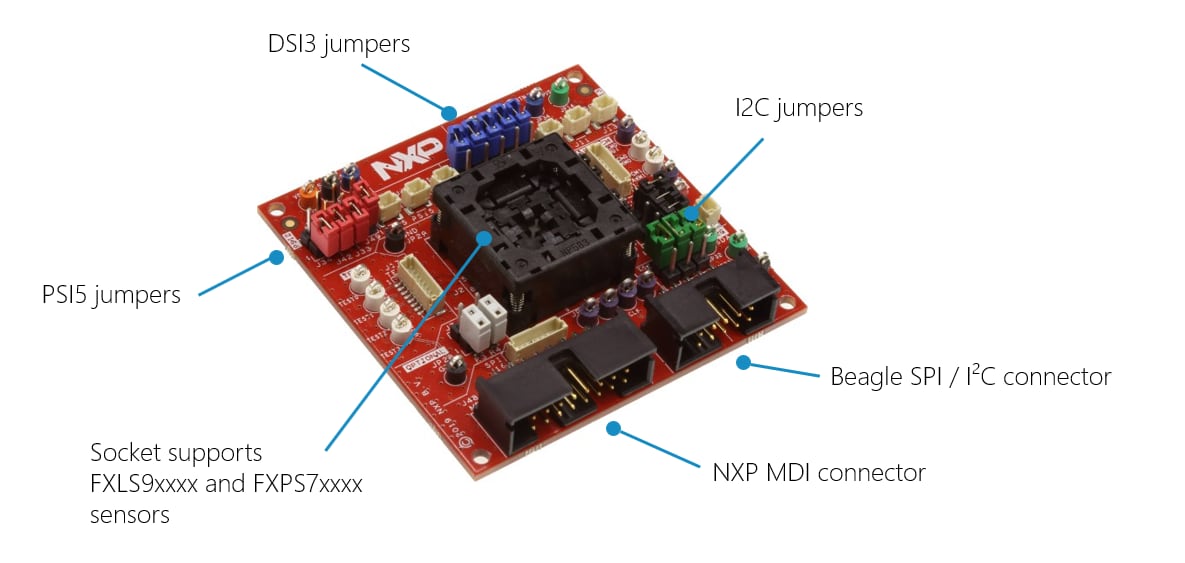

Overview of the SEN-GEN6-SKT board

标记为完成:2.3 Board components

2.4 Additional board support

Refer to UM11559, SEN-GEN6-SKT board for additional details on the featured components.

标记为完成:2.4 Additional board support

前页Get started

下一页Configure the hardware

Configure the hardware

The board supports the FXLS9xxxx and FXPS7xxxx sensor families.

For easier board configuration, the jumpers have been colored per category/protocol. They are listed below:

Sensor compatibility or power supply related: black
I²C: green
DSI3: blue
PSI5: red
SPI: N/A

By default, the board is configured for FXLS9xxxx devices in SPI mode. However, the configuration can easily be modified using the jumpers.

By default, most jumpers are floating. Floating means they are attached to their proper connector but remain unconnected. The reference to "DNP" means “Do not populate”, meaning it can be removed or unshorted.

3.1 Insert the sensor into the socket

The following figure illustrates the proper way to insert the sensor into the socket. For proper connection, align the circle on the IC to the arrowhead (identified in yellow) on the mounting socket.

标记为完成:3.1 Insert the sensor into the socket

3.2 Connect the board to a compatible ECU

The SEN-SPI-BOX has two dedicated interfaces suitable for SPI and I²C communications, an MDI connector and a Beagle connector. The NXP MDI connector supports the SEN-SPI-BOX kit. The Beagle connector is an industrial standard and may be coupled to any Beagle compatible analyzer.
