Getting Started with FRDM-MCXA156

上次修改时间: Jul 24, 2024支持 FRDM-MCXA156 | MCUXpresso Developer Experience

本文档内容

  • 1

    Plug It In
  • 2

    Get Software
  • 3

    Build, Run
  • 4

    Create
  • 5

    MCUXpresso Developer Experience

1. Plug It In

Let's take your FRDM board for a test drive! You have the choice of watching the sequence in a short video or following the detailed actions listed below.

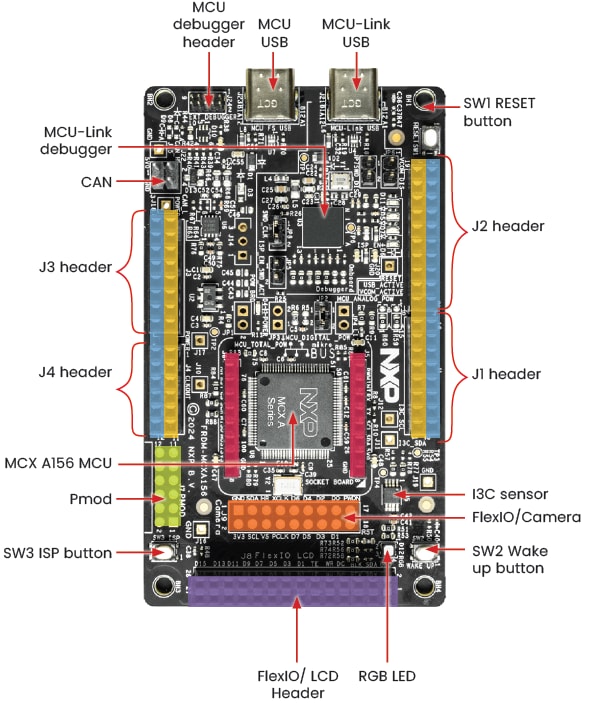

1.1 Get Familiar with the Board

The FRDM-MCXA156 board is pre-programmed with a LED blinky demo. This serves as a sanity check to verify that the device is working as expected out of the box.

FRDM-MCXA153 Get Familiar with the Board

FRDM-MCXA153 Get Familiar with the Board

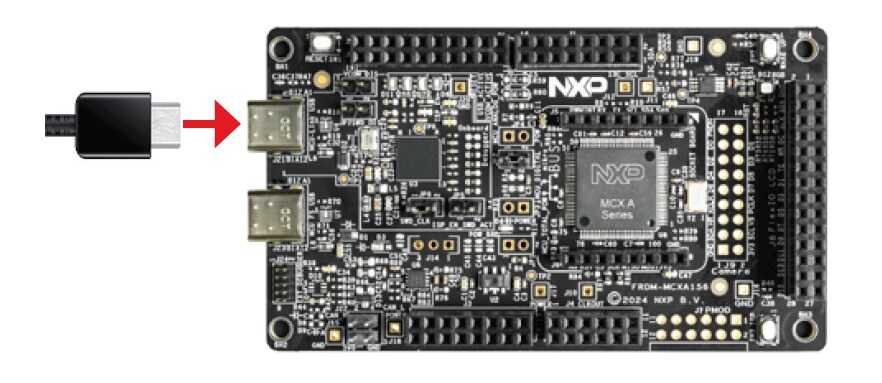

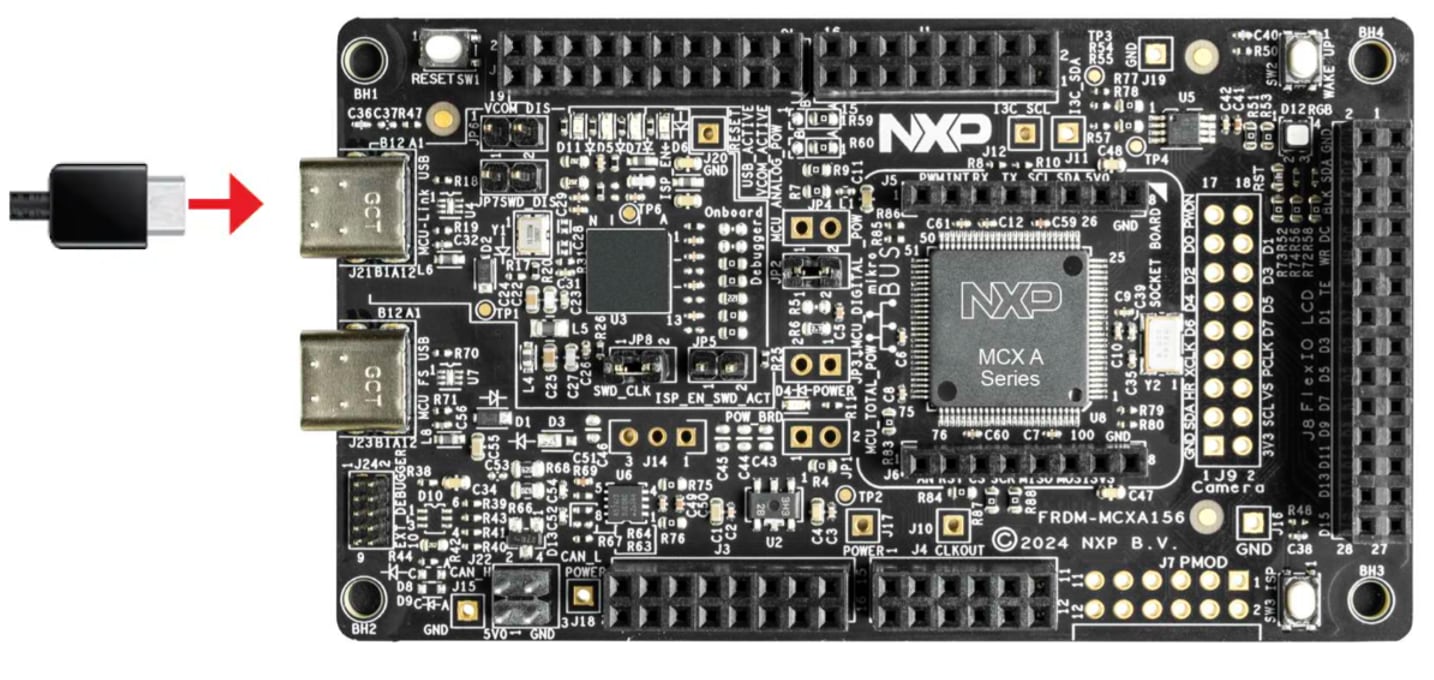

1.2 Plug In the Board

Connect a type-C USB cable from connector J21 to a host computer or power supply to power up the board and run the demo program. At this point, you should see the RGB LED blinking at a steady rhythm.

2. Get Software

2.1 Install Your Toolchain

NXP offers a complimentary toolchain called MCUXpresso IDE. Please download MCUXpresso v11.8.1 or above.

Need help choosing?

Get MCUXpresso IDE

Get MCUXpresso for VS Code

Learn how to install VS Code for your host PC with the following tutorial.

Want to use a different toolchain?

No problem! The MCUXpresso SDK includes support for other tools such as IAR , Keil  and command-line GCC .

2.2 Jump Start Your Design with the MCUXpresso SDK

The MCUXpresso SDK is complimentary and includes full source code under a permissive open source license for all hardware abstraction and peripheral driver software. You may install the MCUXpresso SDK directly from the MCUXpresso SDK website at MCUXpresso SDK Builder . Click on the button below to open this board's SDK builder.

Get MCUXpresso SDK

2.3 MCUXpresso Config Tools

The MCUXpresso Config Tools is an integrated suite of configuration tools that guides users in creating new MCUXpresso SDK projects, and also provides pin and clock tools to generate initialization C code for custom board support, it is fully integrated as a part of MCUXpresso IDE and also as a separate tool if using a different IDE.

Click the Get MCUXpresso Config Tools below to get the Config Tools installer.

Get MCUXpresso Config Tools

2.4 Programming and Provisioning Tools

The MCUXpresso Secure Provisioning (SEC) Tool is a GUI-based application provided to simplify the generation and provisioning of bootable executables on NXP MCU devices. We recommend all users to begin with the MCUXpresso Secure Provisioning (SEC) tool for trial run and mass production use. It supports secure programming and device provisioning on NXP's microcontrollers at the production stage.

After downloading the tool, you can find the user guide under the ‘Help’ tab. Follow the instructions for your board in the ‘Processor-specific workflow’ chapter.

SEC Installation

3. Build, Run

If one or more of the demo applications or driver examples sounds interesting, you're probably wanting to know how you can build and debug yourself. The Getting Started with MCUXpresso SDK guide provides easy, step-by-step instructions on how to configure, build and debug demos for all toolchains supported by the SDK.

3.1 Build and Flash an Application Using MCUXpresso IDE

The following steps will guide you through the hello_world demo application using MCUXpresso IDE for the Cortex-M33 application. The MCUXpresso IDE installation and the SDK for the MCXA-Series can be found at the Get Software section of this Getting Started guide.

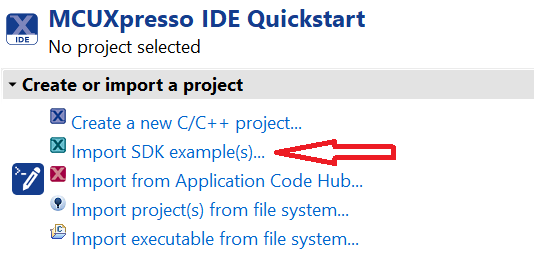

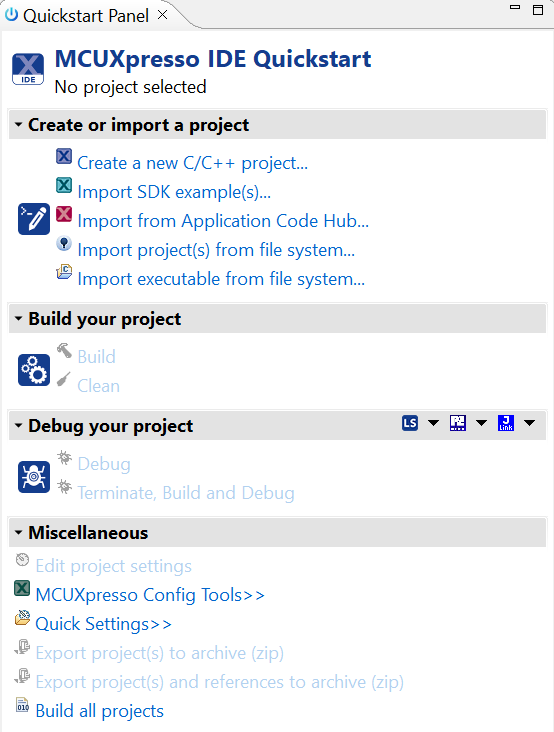

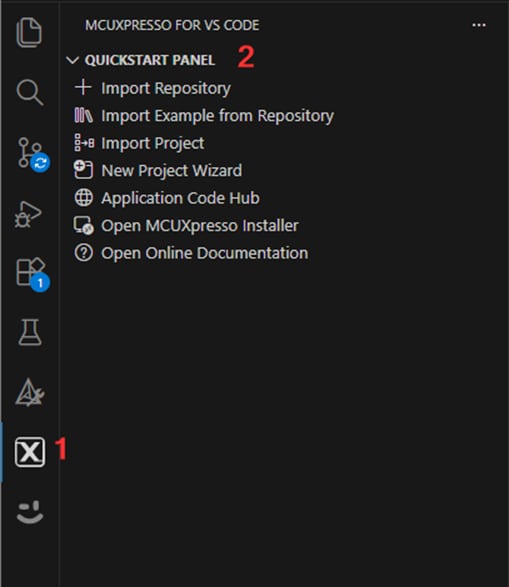

  1. Find the Quickstart Panel in the lower left-hand corner
  2. FRDM MCXA156 SW Quickstart Panel

    FRDM MCXA156 SW Quickstart Panel

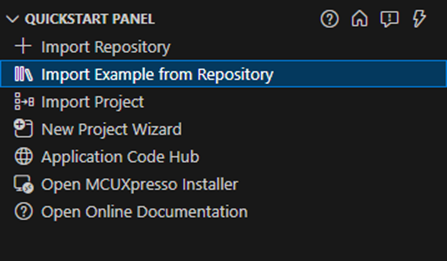

  3. Then, click on Import SDK example(s)

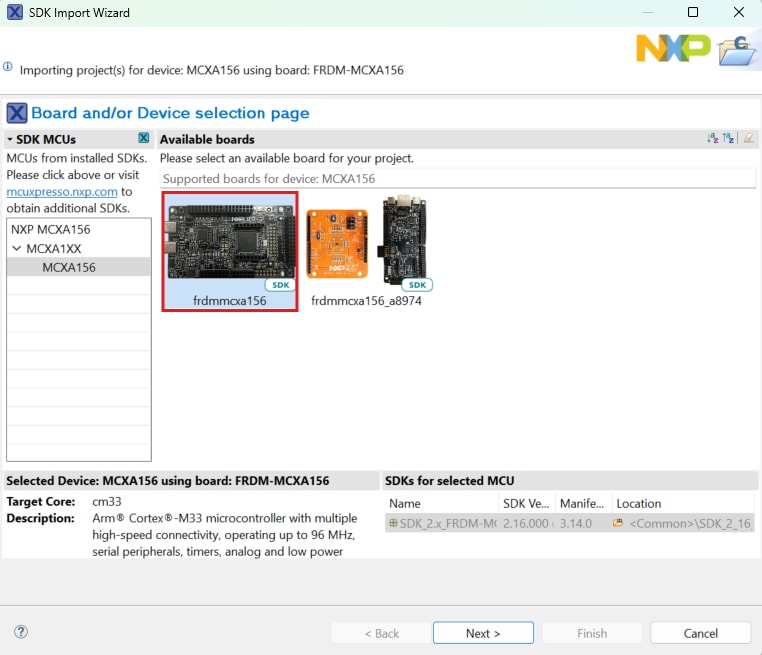

  4. Click on the FRDM MCX-A156 board to select an example that can run on that board, and then click Next
  5. FRDM MCXA156 SW Select Board

    FRDM MCXA156 SW Select Board

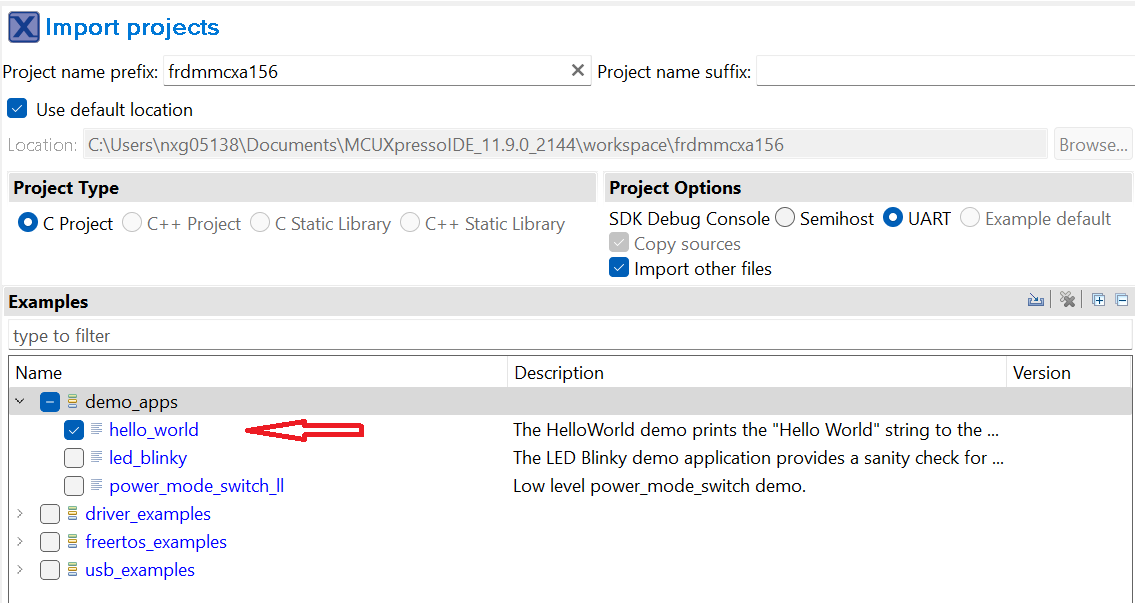

  6. Use the arrow button to expand the demo_apps category, and then click the checkbox next to hello_world to select that project. To use the UART for printing (instead of the default semihosting), select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish

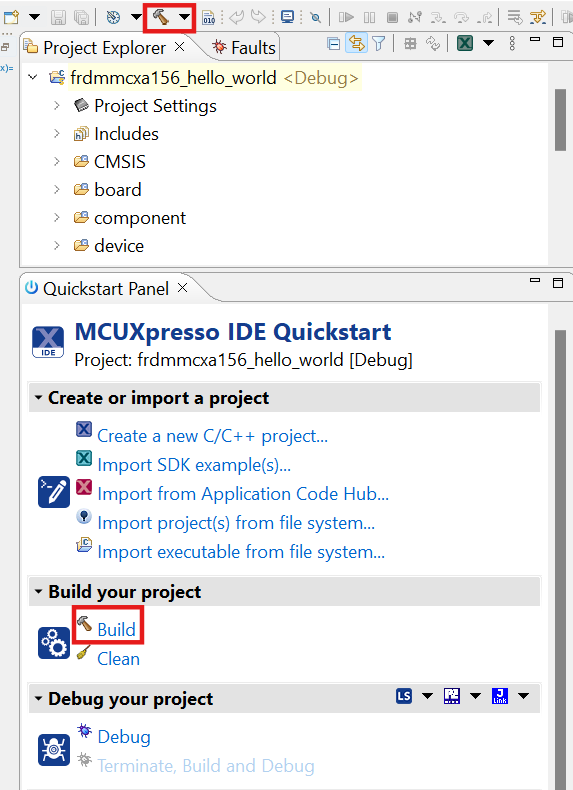

  7. Select the project and build it by either clicking on the "Build" icon in the shortcuts provided above or by clicking "Build" in the Quickstart Panel
  8. FRDM MCXA156 SW Build

    FRDM MCXA156 SW Build

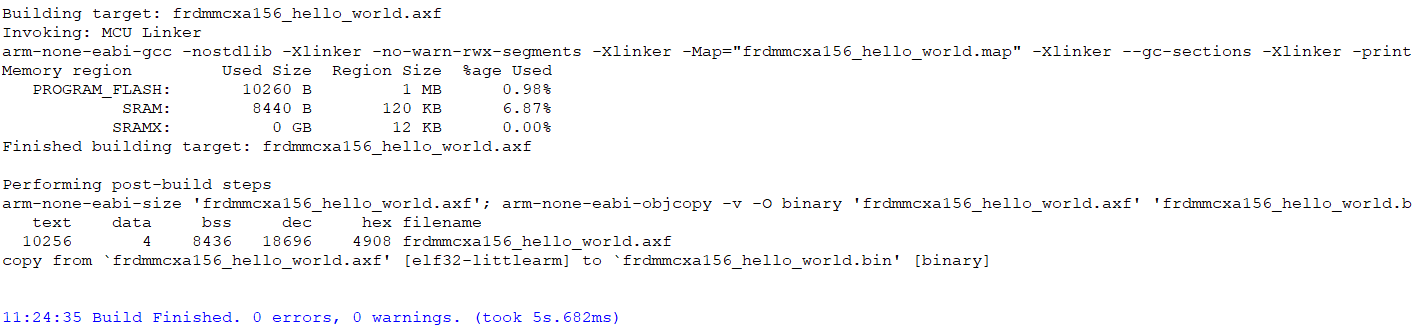

  9. The project should build without presenting any errors or warnings in the console
  10. Connect the board to your computer with the micro-USB to J21 'MCU-LINK' port
  11. Download the application to your board by either clicking on the "Debug" icon above or clicking "Debug" in the Quickstart Panel
  12. FRDM MCXA156 SW Debug

    FRDM MCXA156 SW Debug

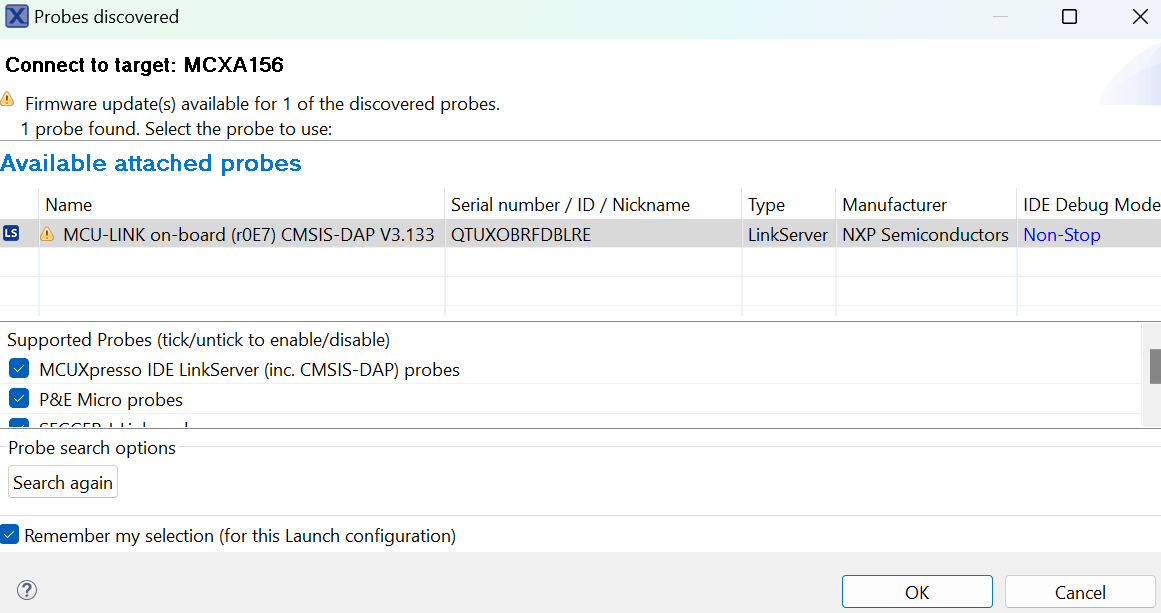

  13. Select the MCU-Link CMSIS-DAP debug probe

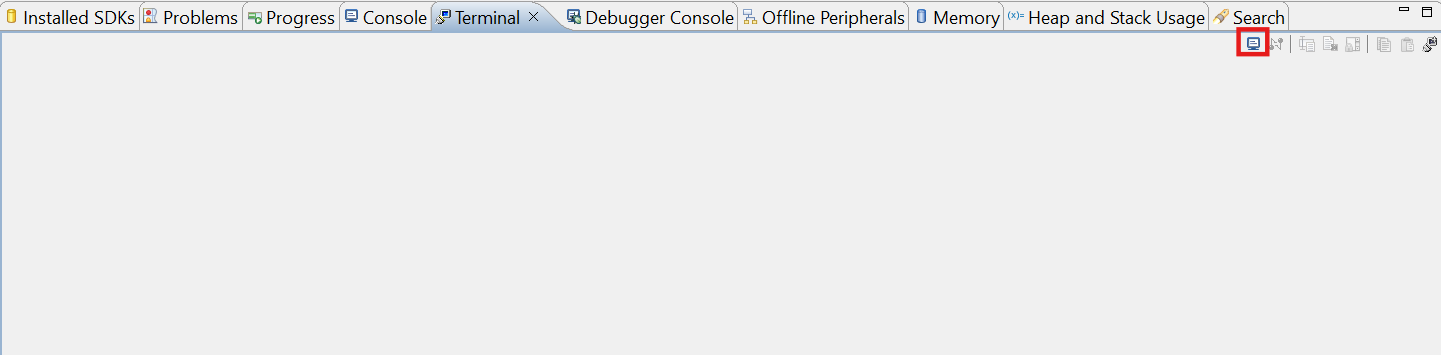

  14. Open up a serial terminal to be able to see the application's output. Select the “Terminal” window and press the “New Terminal” icon
  15. FRDM MCXA156 SW Terminal

    FRDM MCXA156 SW Terminal

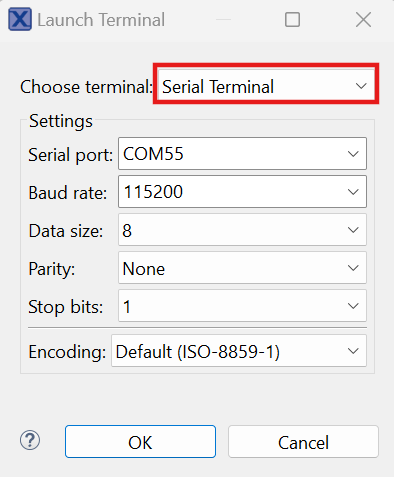

  16. Choose "Serial Terminal" and then set the UART settings to 115,200 baud rate, 8-bit data size, no parity and 1 stop bit. Press OK

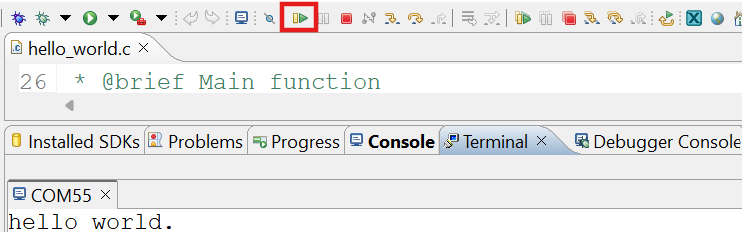

  17. Run the application by pressing the "Run" icon. See the output printed on the terminal

3.2 Build and Flash an Application with Alternative Toolchains

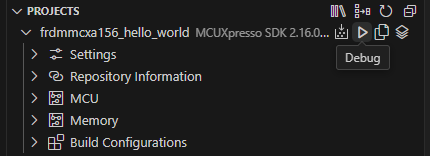

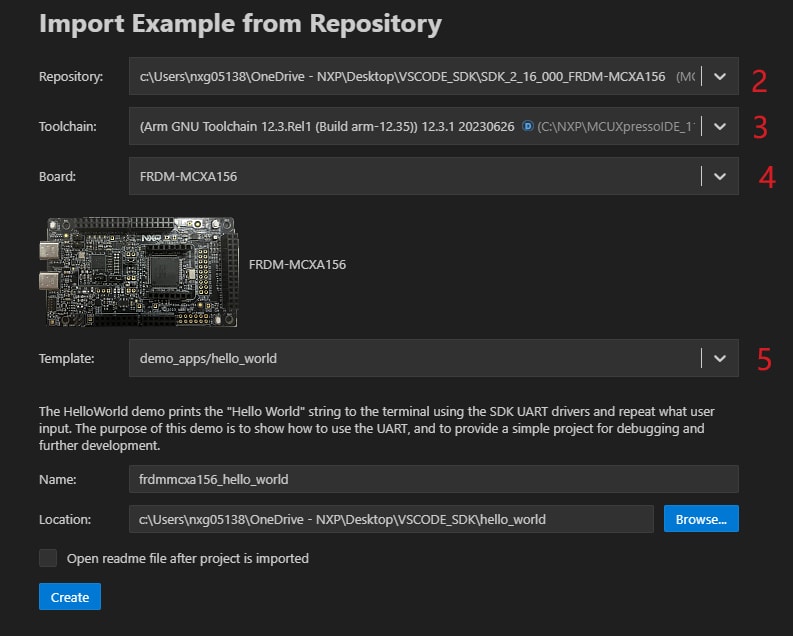

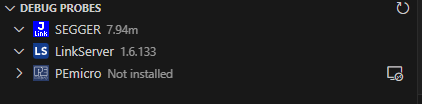

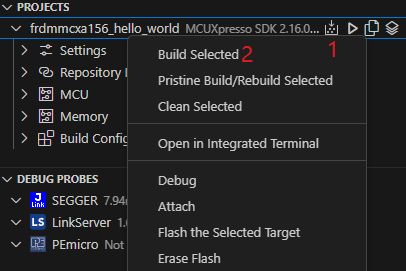

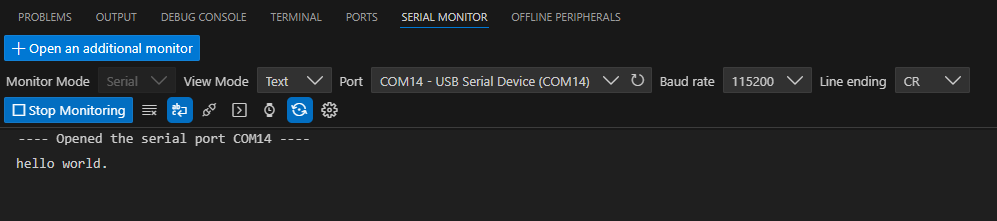

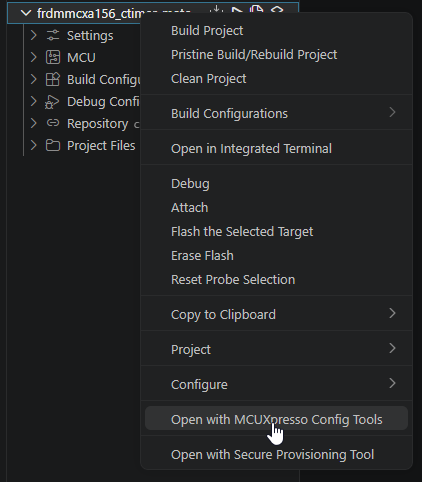

MCUXpresso for Visual Studio Code (VS Code) provides an optimized embedded developer experience for code editing and development. Learn how to build and flash an application with VS Code.

Using a different toolchain?

This demo is also available for IAR and Keil.

4. Create

4.1 Clone an Example Project from MCUXpresso IDE

The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a CTimer to generate a PWM signal and change between two LEDs.

  1. Find the Quickstart Panel in the lower left-hand corner and click on Import SDK example(s)
  2. Click on the FRDM-MCXA156 board to select that you want to import an example that can run on that board, and then click Next
  3. FRDM MCXA156 SW Select Board

    FRDM MCXA156 SW Select Board

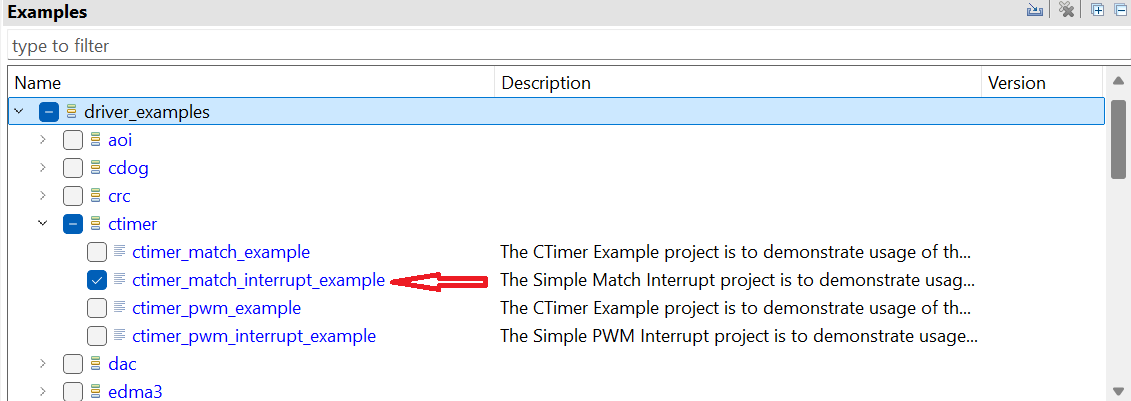

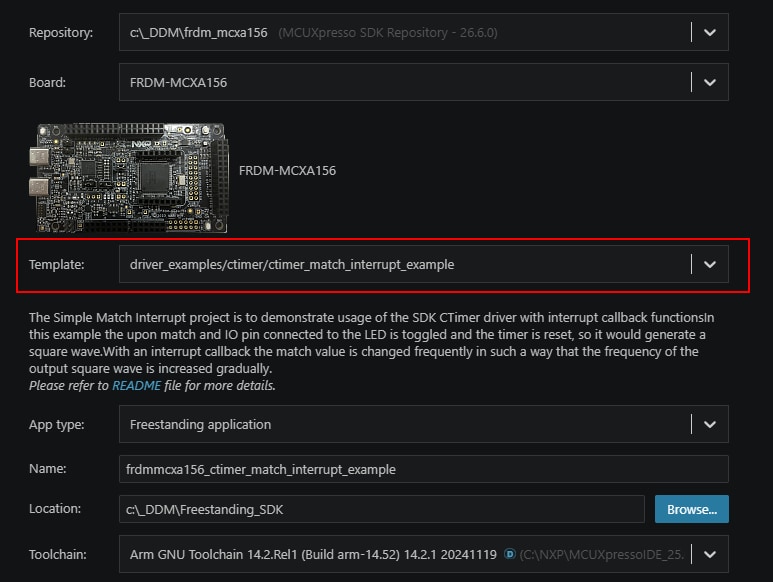

  4. Use the arrow button to expand the driver_examples category, then expand the CTimer examples, click on the checkbox next to ctimer_match_interrupt_example to select it. To use the UART for printing (instead of the default semihosting), select UART as the SDK Debug Console checkbox under the project options. Then, click on Finish

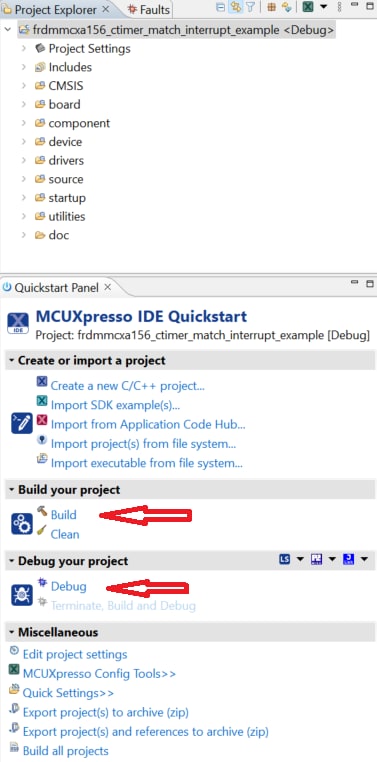

  5. Click on the frdmmcxa156_ctimer_match_interrupt_example project in the Project Explorer View and build, compile and run the demo as described in the previous section
  6. FRDM MCXA156 SW Build Debug

    FRDM MCXA156 SW Build Debug
  7. You should see the GREEN and RED LED changing back and forth
  8. Terminate the debug session

4.2 Clone an Example Project Using MCUXpresso Config Tool for 3rd Party IDE

The following steps will guide you through the manipulation of the general-purpose outputs. The example sets up a CTimer to make RED and GREEN LED changing back and forth.

  1. Open the MCUXpresso Config Tools

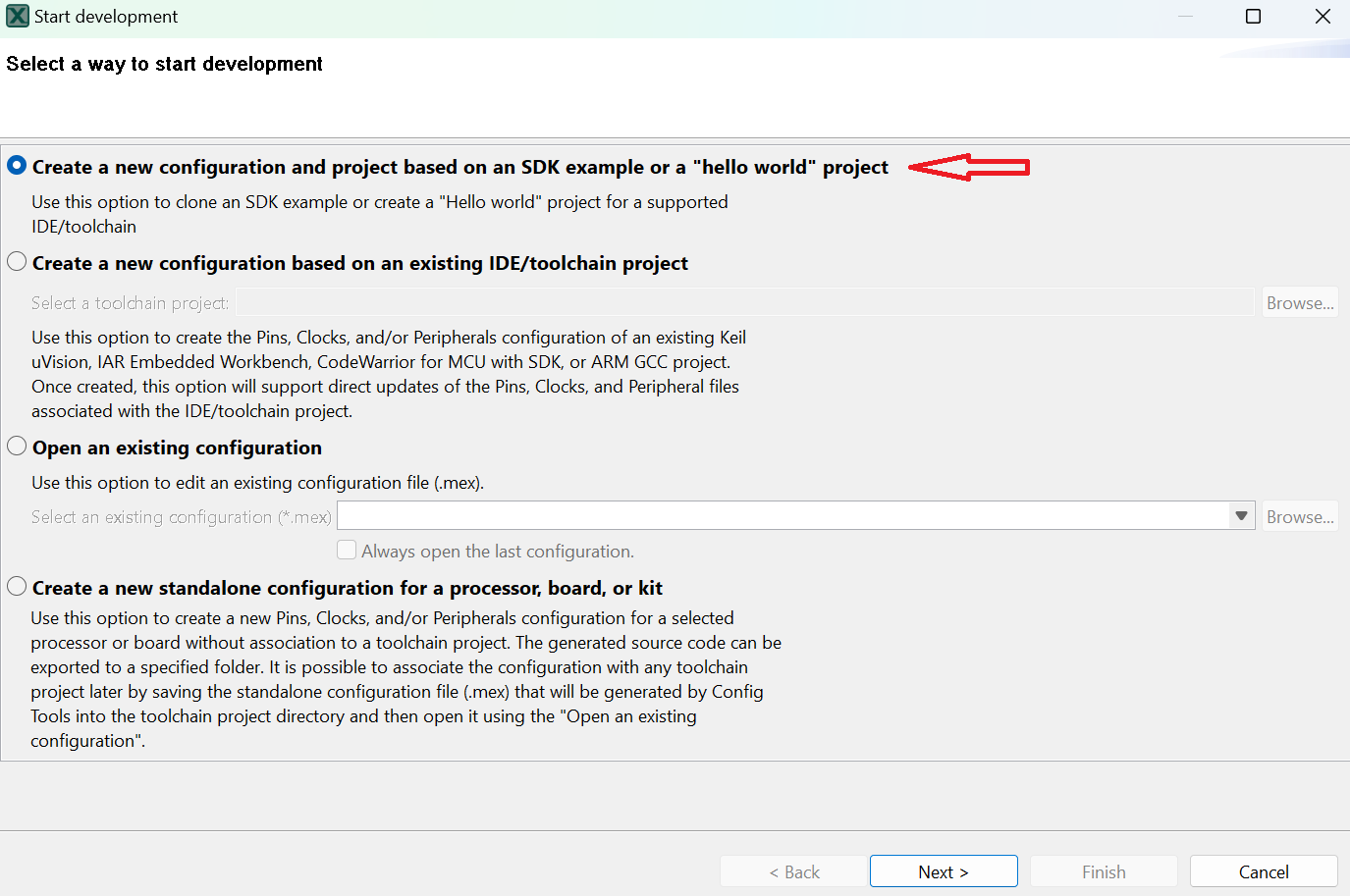

  2. In the wizard that comes up, select the "Create a new configuration based on an SDK example or "hello word" project" radio button and click Next
  3. FRDM MCXA156 SW Create

    FRDM MCXA156 SW Create

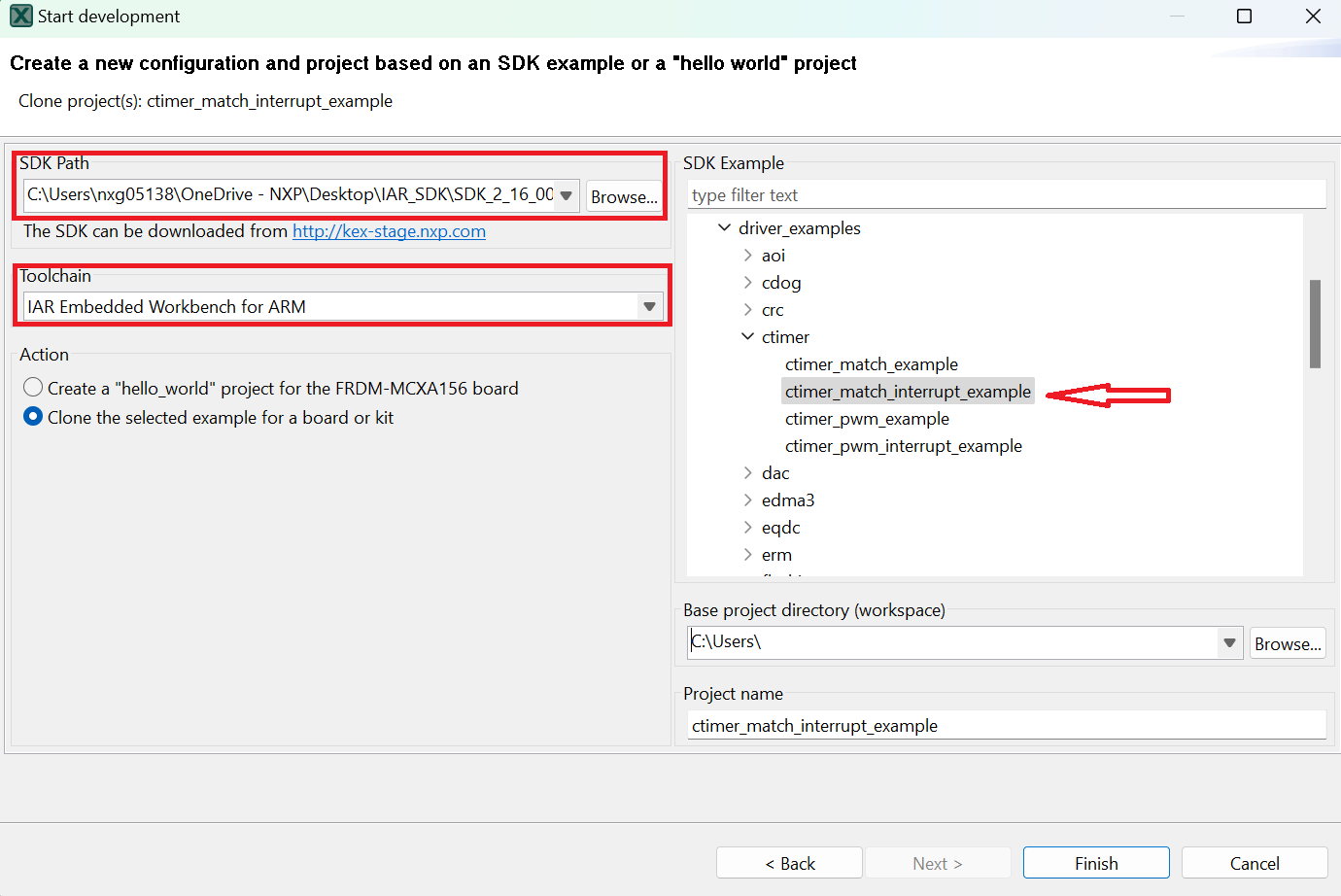

  4. On the next screen, select the location of the MCUXpresso SDK. The SDK package must be unzipped beforehand. Then, select the IDE that is being used. Note that only IDEs that were selected in the online SDK Builder when the SDK was built will be available. Click on "Clone the selected example for a board or kit". Then, select the project to clone. For this example, we want to use the CTimer match interrupt project. You can filter for this by typing "ctimer" in the filter box and then selecting the ctimer_match_interrupt_example example project. You can then also specify where to clone the project and the name. Then, click on Finish
  5. FRDM MCXA156 SW SDK Path

    FRDM MCXA156 SW SDK Path
  6. After cloning, go to the directory you selected and open the project for your IDE. Import, compile and run the project as done in previous sections
  7. You should see the RED and GREEN LED changing back and forth
  8. Terminate the debug session

4.3 Use MCUXpresso IDE Pins Tools

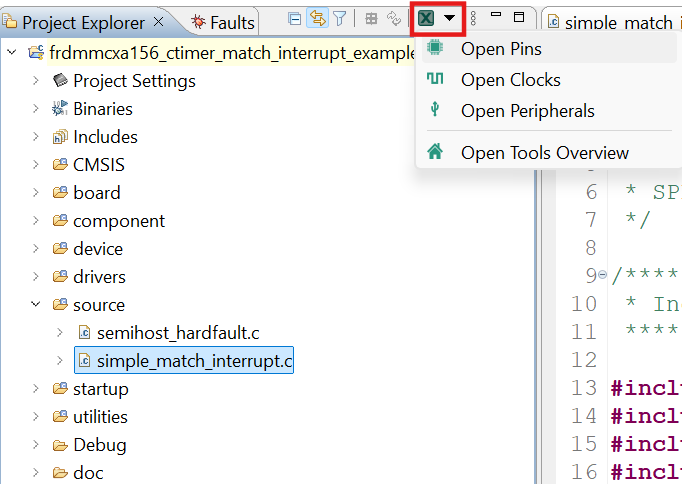

  1. Open the Pins Tool by selecting "Config Tools" on the top-right hand of the file explorer window and then select "Open Pins"

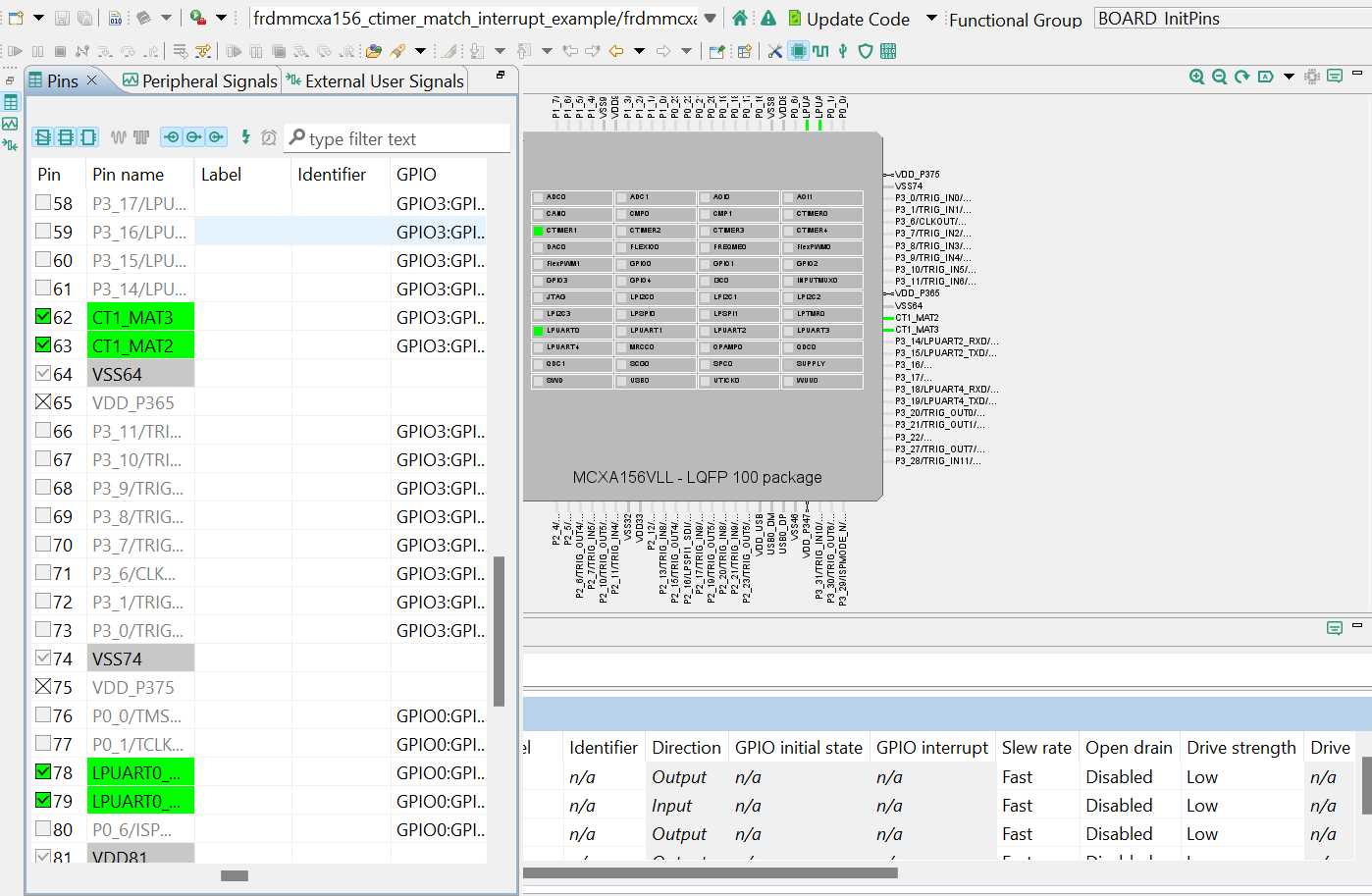

  2. The Pins Tool should now display the pin configuration for the CTimer project
  3. FRDM MCXA156 SW Pin Configuration

    FRDM MCXA156 SW Pin Configuration

4.4 Use the Pins Tools to Modify the LED Routed Pin

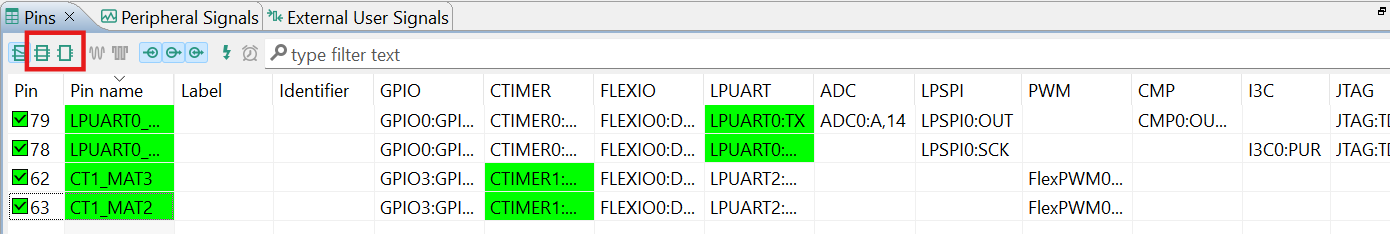

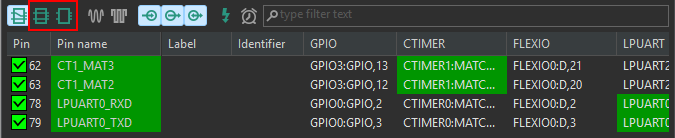

  1. We'll use MCUXpresso IDE for the rest of the instructions, but the same steps can be done in MCUXpresso Config Tools for third party IDEs. In the Pins view, deselect "Show dedicated pins" and "Show no routed pins" checkboxes to see only the routed pins. Routed pins have a check in a green box next to the pin name. The functions selected for each routed pin are highlighted in green

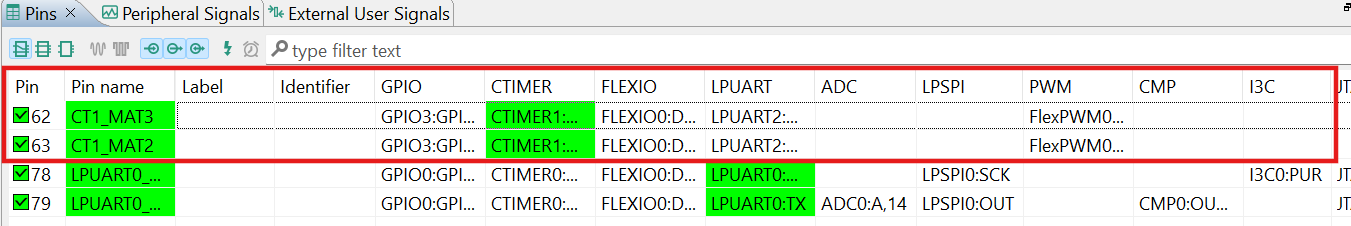

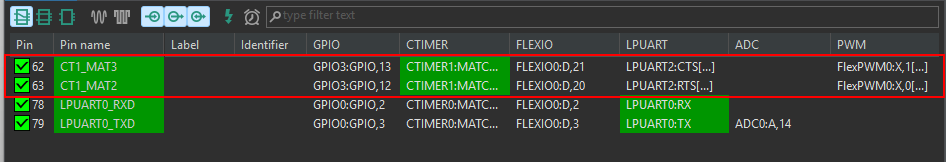

  2. In the current configuration, PIO3_12 and PIO3_13 are routed as the outputs of the CTimer. Let's change the pin configuration and add the BLUE LED

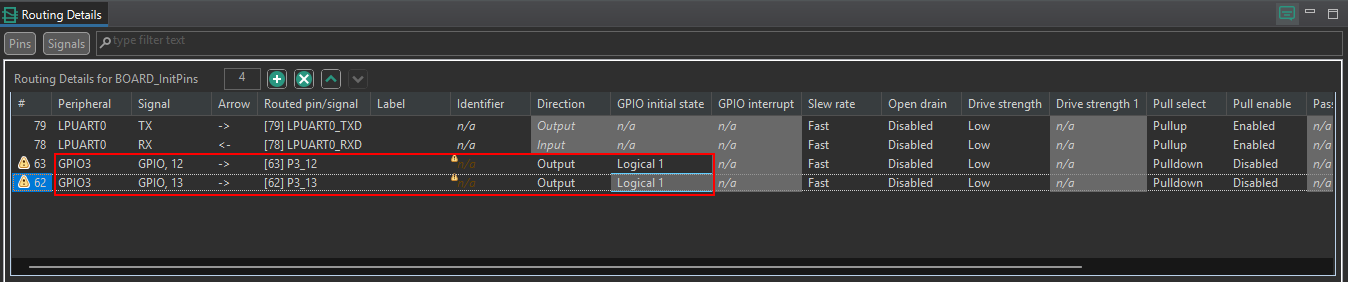

  3. Modify the CTimer output pin PIO3_12 as GPIO and output Logical 1 to disable RED LED

    Modify the CTimer output pin PIO3_13 as GPIO to drive GREEN LED

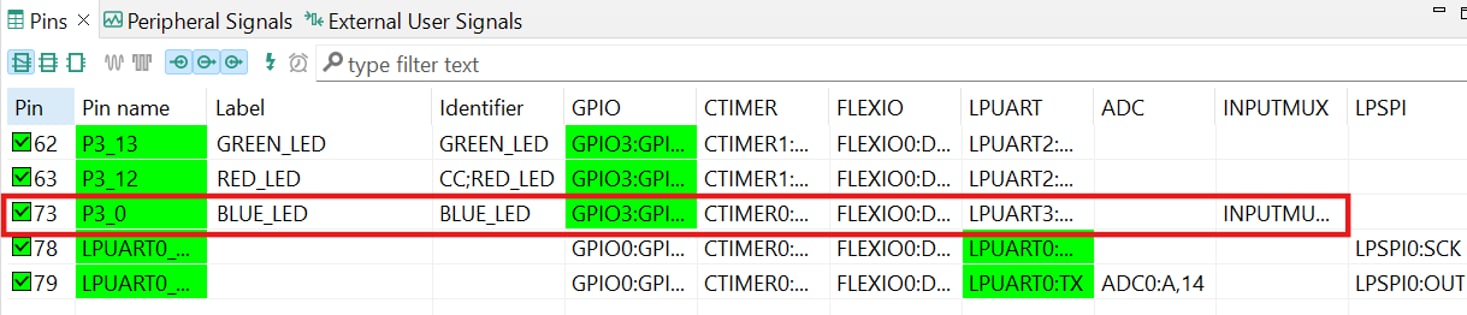

  4. Select "Show no routed pins" to see the other options. To enable the BLUE LED, search for P3_0 and select GPIO3,0 under the GPIO column

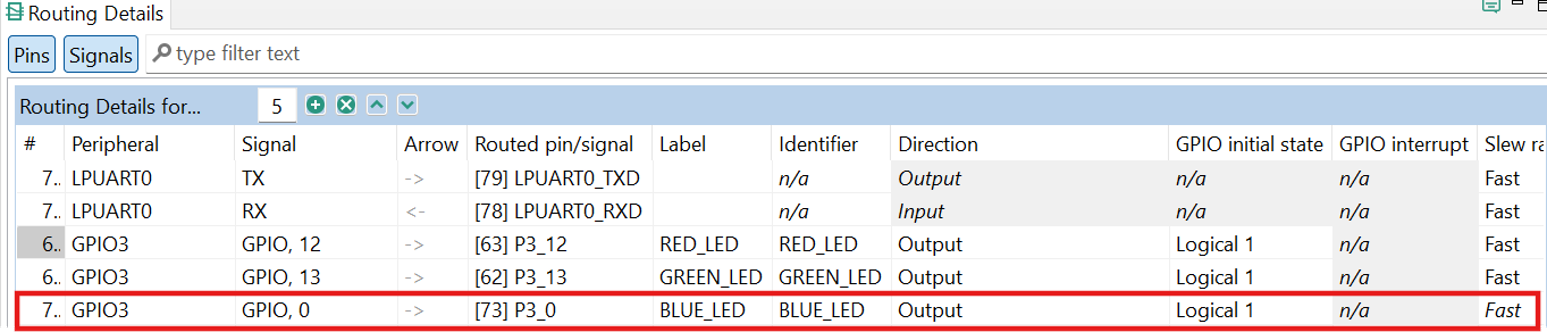

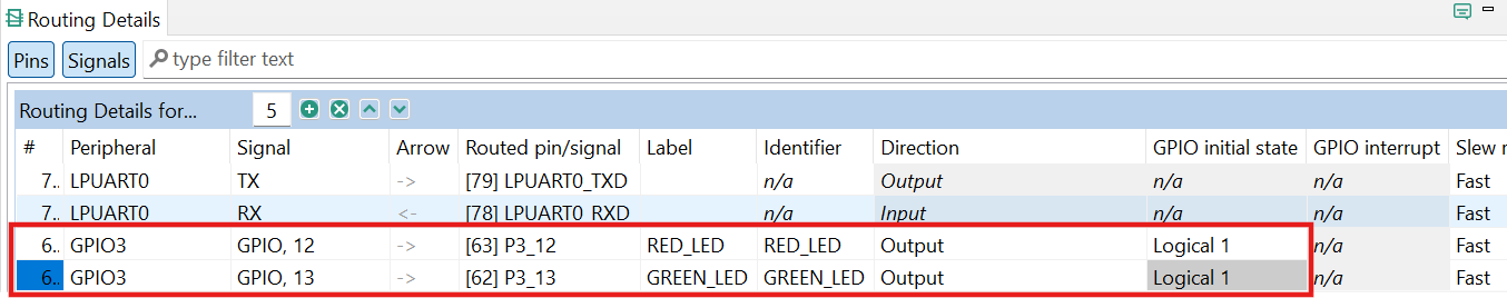

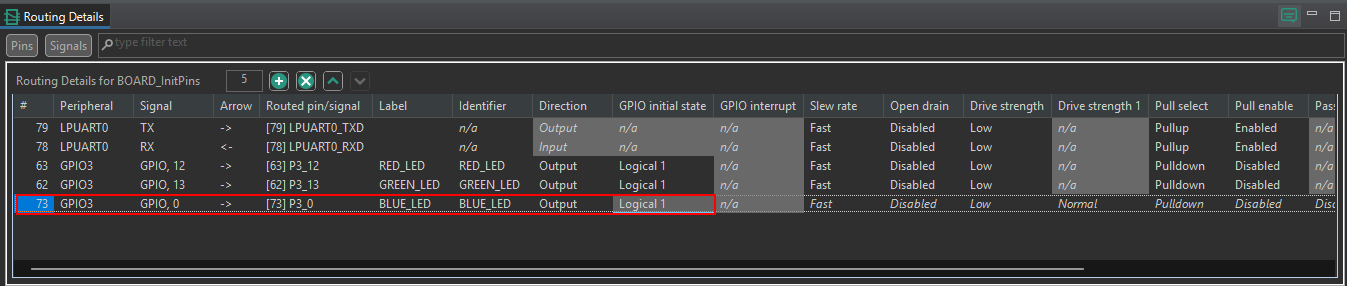

  5. Next, configure the GPIO pin as an output in the "Routing Details" window

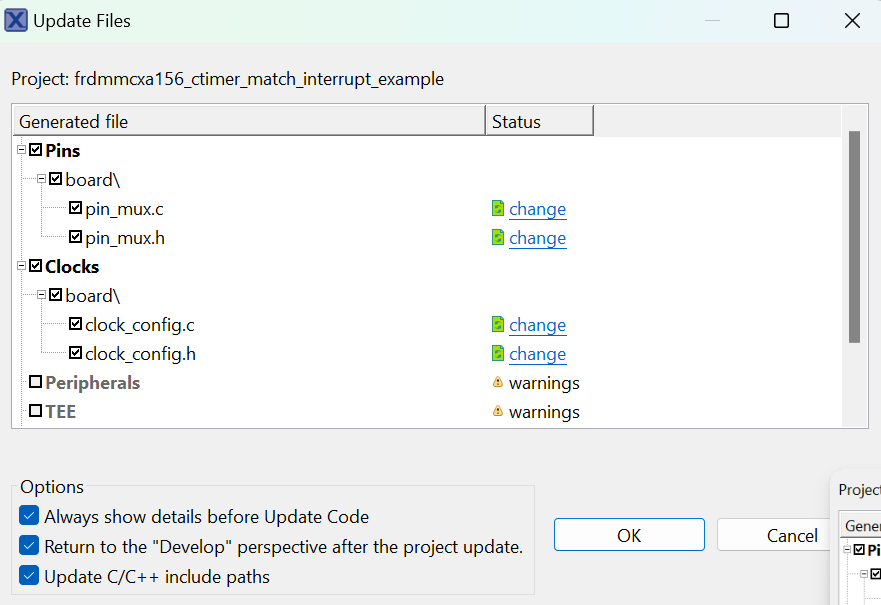

  6. Now, it's time to implement these changes into the project by exporting the new updated pin_mux.c and pin_mux.h files that are generated by the Pins Tool. Click on "Update Project" in the menu bar

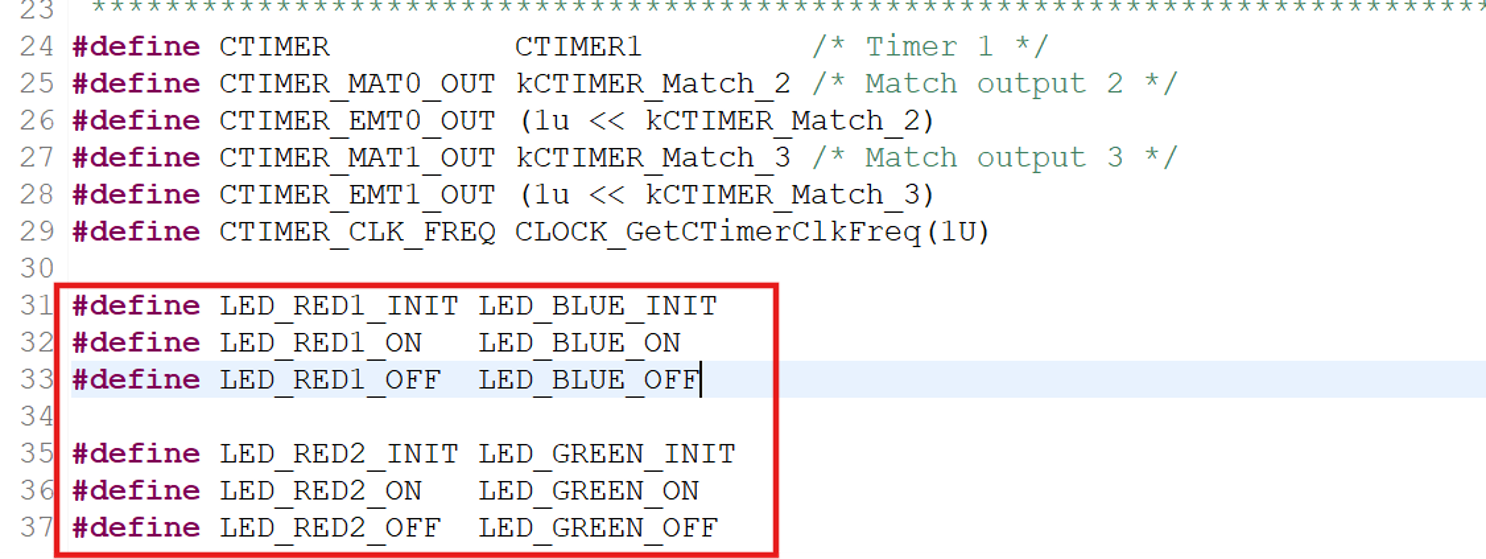

  7. Let's add some additional code to the example. Open the simple_match_interrupt.c file and add the following macros to initialize the BLUE LED and GREEN LED

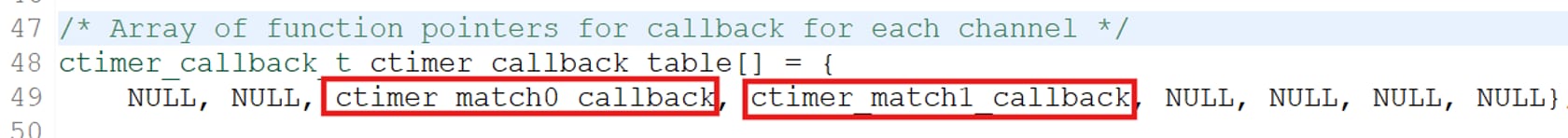

  8. Modify the CTimer callback array as below

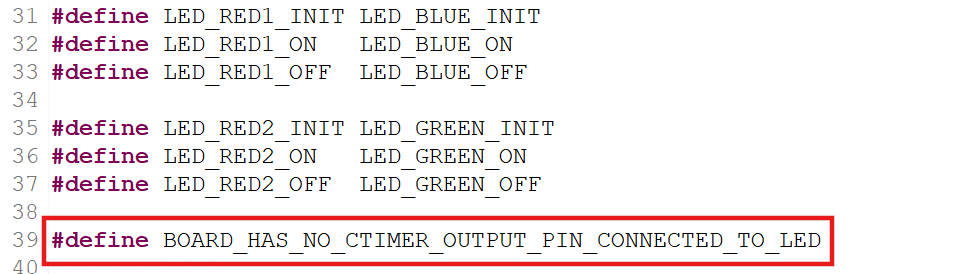

  9. Add the macro to enable the use of the LEDs, instead of the CTIMER output, so that we can visualize the behavior on the board easily

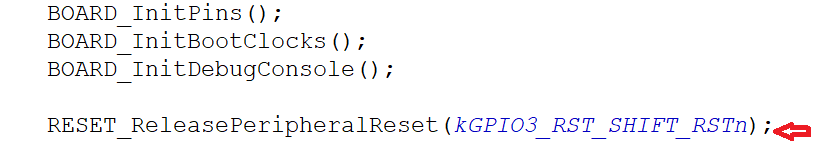

  10. In the main function, let's reset the GPIO3 peripheral, to ensure it is ready to use
  11. Build and download the project as done in the previous section
  12. Run the application. You should now see the GREEN and BLUE LED blinking back and forth
  13. Terminate the debug session

5. MCUXpresso Developer Experience

Check out each of the following sections to learn about the ecosystem provided for flexible prototyping and development. In the video below, we will introduce you to the FRDM platform, the full-featured EVK and the compatible shields for extended capabilities. In addition, we will walk you through our Application Code Hub portal where we provide numerous application examples through NXP's GitHub.

5.1 FRDM Platform, Full Feature EVK and Shields

For quick prototyping platforms, we offer both the low-cost FRDM platform and the full-featured EVK.

FRDM Development Boards come with standard form factor and headers, easy access to MCU I/Os, onboard MCU-Link debugger and a USB-C cable. Our full features evaluation kits include extended I/Os and interface access, extendable with Wi-Fi and additional MCU-Link features. There are also many compatible Click Boards and/or Arduino Shields. For those that are supported with an Open CMSIS Pack example may be available on ACH, but if not many of them are easy to use via serial interface like I²C, SPI and UART, for which we provide drivers with examples in the MCUXpresso SDK.

5.2 Application Code Hub

The Application Code Hub further enhances our MCUXpresso Developer Experience by giving developers an interactive dashboard to quickly locate software. Visit the ACH  today to start exploring or discover additional details and benefits of the new interactive Application Code Hub.

Software accessible from Application Code Hub is located in NXP’s GitHub repository  so it can be easily accessed and cloned from that location directly.

5.3 Demo Walkthrough

The following demo walks us through importing a project from ACH using a system based on the FRDM platform with a motor control shield and a low-cost LCD. Although your evaluation board may differ from this system, the following steps can be replicated and used for all supported platforms.
