PF5023多通道(3) PMIC评估板

KITPF5023FRDMEVM 正常供应

滚动图片以放大

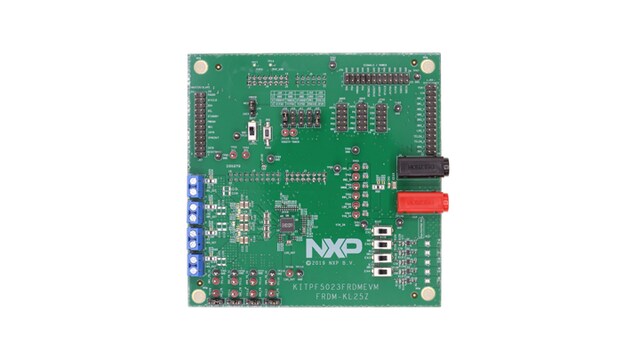

KITPF5023FRDMEVM是采用PF5023能源管理IC的客户评估板/套件。

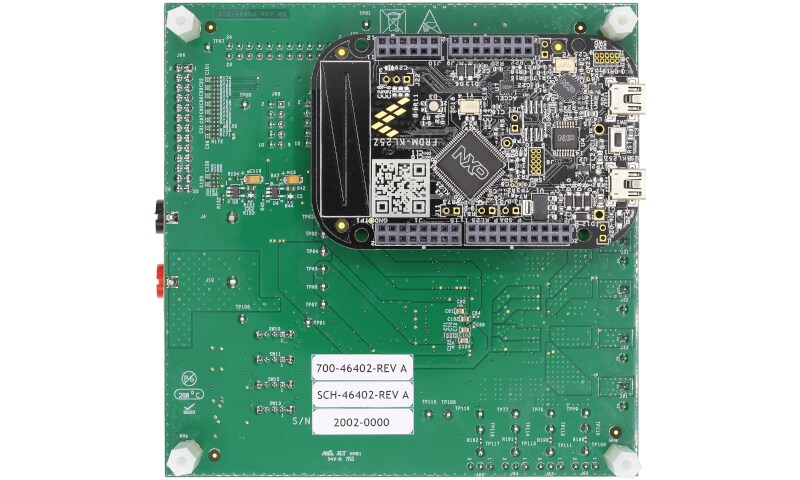

该套件集成了完全评估推荐能源管理集成电路所需的所有硬件。它集成了基于FRDM-KL25Z Freedom板的通信接口，可与FlexGUI软件连接，完全配置和控制PF5023 PMIC。

支持的器件

电源管理

PMIC

  • PF5023: 面向汽车应用的多通道（3）PMIC – 3通道，大功率，符合ASIL B安全等级

特征

PMIC

  • 多输出
  • OTP可编程
  • 符合ASIL B安全等级

软件接口

  • FRDM-KL25Z板

连接

  • KL25Z提供高速I²C

跳线和开关

  • PMIC启用和IO控制

LED

  • PGOOD指示

购买选项

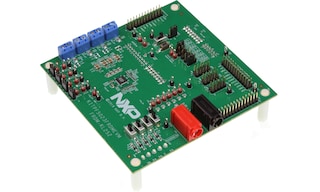

KITPF5023FRDMEVM-Image

点击展开

  • KITPF5023FRDMEVM
    正常供应

  • PF5023 Multi-Channel (3) PMIC Evaluation Board .

    • 组装和经过测试的KITPF5023FRDMEVM
    • 预编程的FRDM-KL25Z
    • 3.0英尺USB-STD A转USB-B-mini线缆
  • $147.77 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 10
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
