面向MC56F826xx和MC56F827xx的塔式系统模块

TWR-56F8200 试生产

滚动图片以放大

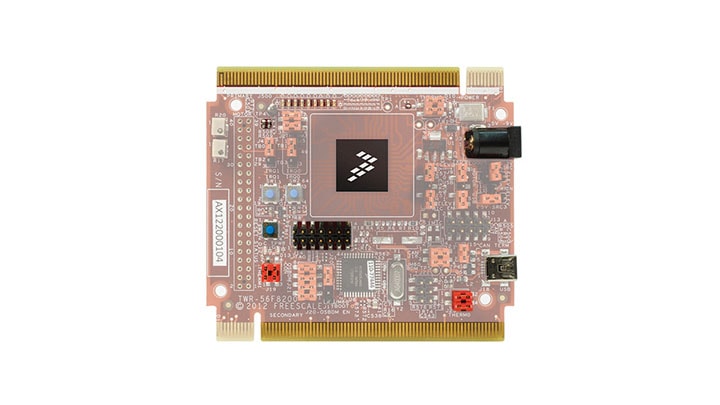

恩智浦TWR-56F8200是一个独立开发板，适用于电机和数字电源控制应用。

  • 可以与塔式®系统外围板一起使用，其中包括LV3PH电机控制套件(TWR-MC-LV3PH模块)
  • 包括恩智浦MC56F82748 DSC，它预装的应用程序可演示ADC和FIR滤波器应用，它可以感知模块四角的热量。
  • 另外还有其他演示应用程序、详细的说明和软件可以向您展示如何用LV3PH电机控制套件驱动3相BLDC电机

产品详情

支持的器件

处理器和微控制器

32位56F8xxxx系列

  • MC56F82xxx: MC56F82xxx: MC56F826xx和MC56F827xx数字信号控制器

特征

微控制器

  • MC56F82748 DSC采用64引脚LQFP封装。
  • 与塔式外设电路板相集成，包括TWR-MC-LV3PH模块。

连接

  • 面向APMOTOR56F8000E电机控制板的电机控制板连接器。
  • CAN收发器，接头和终端
  • 9个由MC56F825748 DSC控制的LED灯。
  • MC56F82748周围有易于接入的示波器探头，针对该器件的每个引脚。
  • 所有信号也都可以通过接头提供。

传感器

  • 4个热敏电阻，提供到MC56F84789 DSC的单端或差分模拟输入。
  • 预装了一个应用，演示ADC和FIR滤波器应用。
