适用于摩托车仪表板应用的S12 MagniV

TRK-S12ZVHY64 试生产

滚动图片以放大

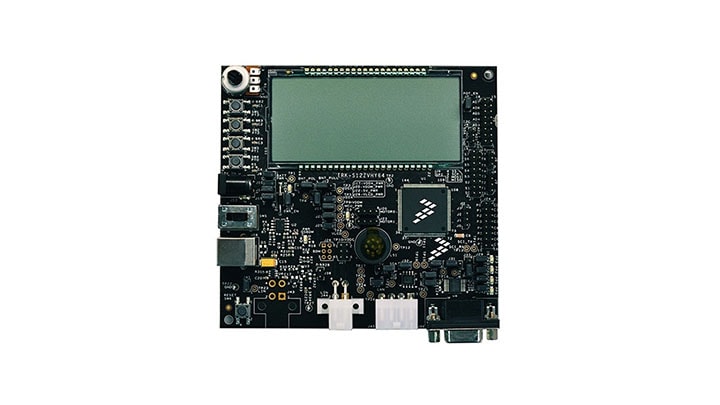

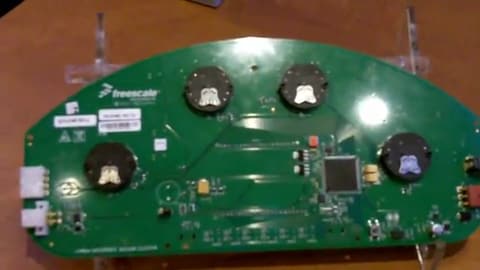

TRK-S12ZVHY64是面向S12 MagniV® S12ZVHY系列16位MCU的开发板，适用于摩托车和小型车辆仪表板应用。它适用于需要段式LCD和模拟仪表的应用，支持快速原型设计和开发。它充分利用MagniV高压技术的优势，最高支持18V的工作电压。该电路板采用定制LCD，两个步进电机接头，以及一个用于发出警报音的低功耗扬声器。

TRK-S12ZVHY64可作为独立调试工具工作，采用兼容BDM协议的开源调试工具OSBDM。

产品详情

支持的器件

处理器和微控制器

S12 MagniV混合信号MCU

  • S12ZVH: S12ZVH MagniV混合信号MCU

特征

微控制器

  • S12ZVFP64 S12 MagniV® MCU in a 144LQFP package

数据连接

  • 连接片上LIN物理层收发器的LIN接头
  • CAN物理收发器和接头(未组装)
  • SCI串行通信接口(未组装，可通过OSDM访问)
  • 通用IO接头提供闲置引脚

调试

  • 使用MPC9S08JM MCU，通过开源OSBDM电路进行板载BDM连接

音频

  • Low-power piezoelectric speaker

显示器

  • 定制160段LCD

组件

  • CAN物理收发器和接头(未组装)
  • 4 user LEDs, 4 user buttons, and 1 potentiometer
