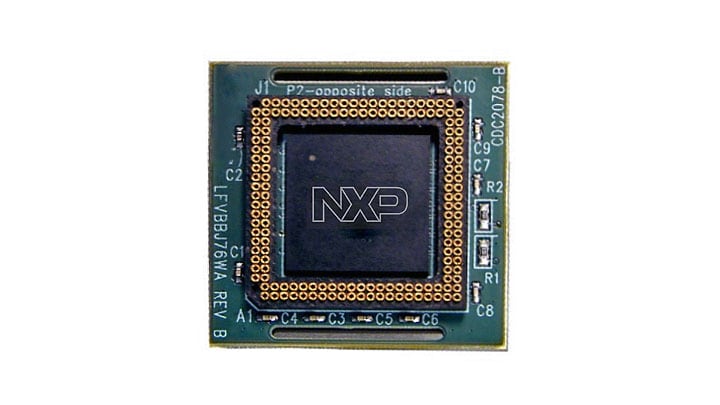

MPC5674F器件和目标适配器

MPC5674FVBBOARDS 正常供应

滚动图片以放大

VertiCal系统在工业和汽车应用中使用增强型校准和调试工具，支持各种不同封装类型的MPC5674F MCU。

VertiCal基于Power Architecture®，提供生产规格和标准化的工具连接器，可连接和重复使用各种校准和调试硬件。

产品详情

支持的器件

处理器和微控制器

超高可靠性的MPC56xx MCU

  • MPC5674F: 超可靠的MPC5674F MCU，适用于汽车和工业发动机管理

功能

  • 与VertiCal系统兼容
  • 整个MPC5674F系列MCU采用标准化硬件(使用生产硅芯片)
  • 高达522个引脚
  • 1.00 mm
  • 支持系统校准，不影响标准MCU I/O资源
  • 多个校准工具开发商支持的互连标准
  • 支持简化的覆盖存储器实施
  • 灵活地支持原型时使用的各种新微控制器功能
  • 采用经过试验和测试的技术

购买选项

LFVBSJ74ZZA-Image

点击展开

  • LFVBSJ74ZZA
    正常供应

  • Qorivva 522 PIN 1.0MM Pre-Vertical Calibration Base Board for MPC5674F, MPC5676R , MPC5777C.

  • 套件包含：

    • 提取工具
    • 物料清单
    • 装箱单
  • $420.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
LFVBSJ74ZZ1A-Image

点击展开

  • LFVBSJ74ZZ1A
    正常供应

  • Qorivva MPC5674 522 PIN 1.0MM Vertical Calibration Base Board.

  • 套件包含：

    • 提取工具
    • 物料清单
    • 装箱单
  • $420.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
LFVBSJ74ZWA-Image

点击展开

  • LFVBSJ74ZWA
    正常供应

  • Qorivva MPC5674 416 PIN 1.0MM Vertical Calibration Base Board.

  • 套件包含：

    • 提取工具
    • 物料清单
    • 装箱单
  • $420.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
LFVBSJ74ZW1A-Image

点击展开

  • LFVBSJ74ZW1A
    正常供应

  • Qorivva MPC5674 422 PIN 1.0MM Vertical Calibration Base Board.

  • 套件包含：

    • 提取工具
    • 物料清单
    • 装箱单
  • $420.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
LFVBBOJ74W1A-Image

点击展开

  • LFVBBOJ74W1A
    正常供应

  • Qorivva MPC5674F 422 PIN 1.0MM PGA Vertical Calibration Base Board.

  • 套件包含：

    • 提取工具
    • 物料清单
    • 装箱单
  • $420.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
LFVBBJ74ZA-Image

点击展开

  • LFVBBJ74ZA
    正常供应

  • Qorivva MPC5674A 516 Pin 1.0MM PGA Vertical Calibration Base board.

  • 套件包含：

    • 提取工具
    • 物料清单
    • 装箱单
  • $420.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
LFVBBJ74WA-Image

点击展开

  • LFVBBJ74WA
    正常供应

  • Qorivva MPC5674A 416 Pin 1.0MM PGA VertiCal Calibration Base Board.

  • 套件包含：

    • 提取工具
    • 物料清单
    • 装箱单
  • $420.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
