Name: Freedom HW for MC12XSF and MC12XS6 families
Price: 41.54 USD
Availability: BackOrder

产品详情

支持的器件

处理器和微控制器

KL系列Cortex-M0+

KL2x: Kinetis^® KL2x-72/96 MHz, USB超低功耗微控制器(MCU)，基于Arm^® Cortex^®-M0+内核

KV系列Cortex-M4/M0+/M7

KV1x: Kinetis® KV1x-75 MHz，入门级3相FOC / 无传感器电机控制微控制器(MCU)，基于Arm® Cortex®-M0+内核

通用负载开关

高边开关

MC12XS6: 外部汽车照明多通道eXtreme开关

特征

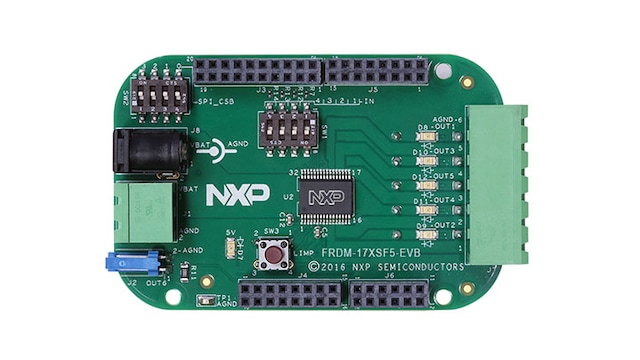

Evaluation module

4 different boards to cover 4 different devices in SOIC32 package

FRDM-17XSF5-EVB: covers MC17XSF500 and MC17XS6500 (5 outputs 17 mOhm)
FRDM-17XSF4-EVB: covers MC17XSF400 and MC17XS6400 (4 outputs 17 mOhm)
FRDM-08XSF4-EVB: covers MC08XSF421 and MC08XS6421 (2x08 mOhm and 2x21 mOhms)
FRDM-40XSF5-EVB: covers MC40XSF500 and MC40XS6500 (5 outputs 40 mOhm)

Can be driven by the 16-bit SPI using

带有SPIGen软件的KL25Z
采用Processor Expert组件的KL25Z、KV10Z和K64F 采用CodeWarrior 10.6 或Kinetis Design Studio v3.0或更高版本的Gen4eXtremeSwitch
With direct input signals in Failsafe mode operation (switch on board).

This board can control various types of loads such as solenoids, PLC, DC motors, bulbs, or LED.

These devices are 16-bit 5.0 MHz SPI, control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting.

电源管理

Output current monitoring with programmable synchronization signal and battery voltage feedback.

组件

外部智能电源开关控制。

购买选项

点击展开

FRDM-40XSF5-EVB
正常供应

Freedom Expansion Board, MC40XSF500 - High-Side Switch, 12V, Penta 40mOhms.

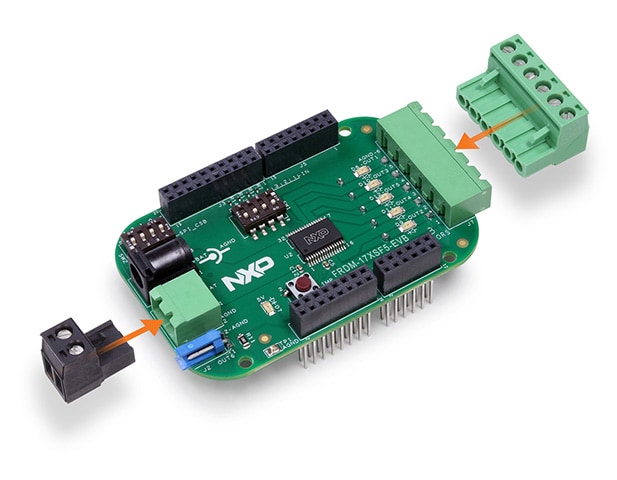

套件包含

Freedom电路板
功率输入/输出接头
快速入门指南

$41.54 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

FRDM-17XSF5-EVB
正常供应

Freedom Expansion Board, MC17XSF500 - High-Side Switch, 12V, Penta 17mOhm.

$41.54 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

FRDM-17XSF4-EVB
正常供应

Freedom Expansion Board, MC17XSF400 - High-Side Switch, 18V, Quad 17mOhms.

$41.54 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

点击展开

FRDM-08XSF4-EVB
正常供应

Freedom Expansion Board, MC08XSF421 - High-Side Switch, 12V, Dual 8mOhms + Dual 21mOhms.

$41.54 USD

待定库存

加入购物车

从分销商处购买

代理商	地区	库存	库存日期	订购

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

文档

快速参考恩智浦文档类别

8 文件

紧凑列表

MC12XSFD3, Penta 40 mOhm High-side Switch - Data Sheet[MC12XSFD3]

PDFMar 11, 2015版本更新 1.0
MC12XSFD4, Dual 8.0 mOhm and Dual 21 mOhm High-side Switch - Data Sheet[MC12XSFD4]

PDFFeb 18, 2015版本更新 1.0
MC12XSFD1, 17 mOhm and 7.0 mOhm High-side Switches - Data Sheet[MC12XSFD1]

PDFJan 21, 2015版本更新 1.0
MC07XSF517, Triple 7.0 mOhm and Dual 17 mOhm High Side Switch - Data sheet[MC07XSF517]

PDFSep 30, 2013版本更新 2.0
MC17XSF500, Penta 17 mOhm High Side Switch - Data Sheet[MC17XSF500]

PDFSep 30, 2013版本更新 2.0

PEXMC12XSF-MC12XS6UG, Gen4eXtremeSwitch Processor Expert component - User’s guide[PEXMC12XSF-MC12XS6UG]快速入门

PDFMay 9, 2016版本更新 1.0
KTFRDM-MC12XSFUG, FRDM-17XSF5-EVB, FRDM-17XSF4-EVB, FRDM-08XSF4-EVB and FRDM-40XSF5-EVB evaluation boards - User's guide[KTFRDM-MC12XSFUG]快速入门

PDFJul 18, 2018版本更新 2.0

Smart High-Side Switches Fact Sheet[ESWITCHFS]

PDFJul 29, 2022版本更新 2
