Remote I/O Platform

REMOTE-IO-PLATFORM 全新
正常供应

滚动图片以放大

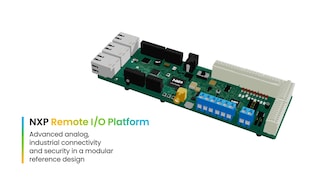

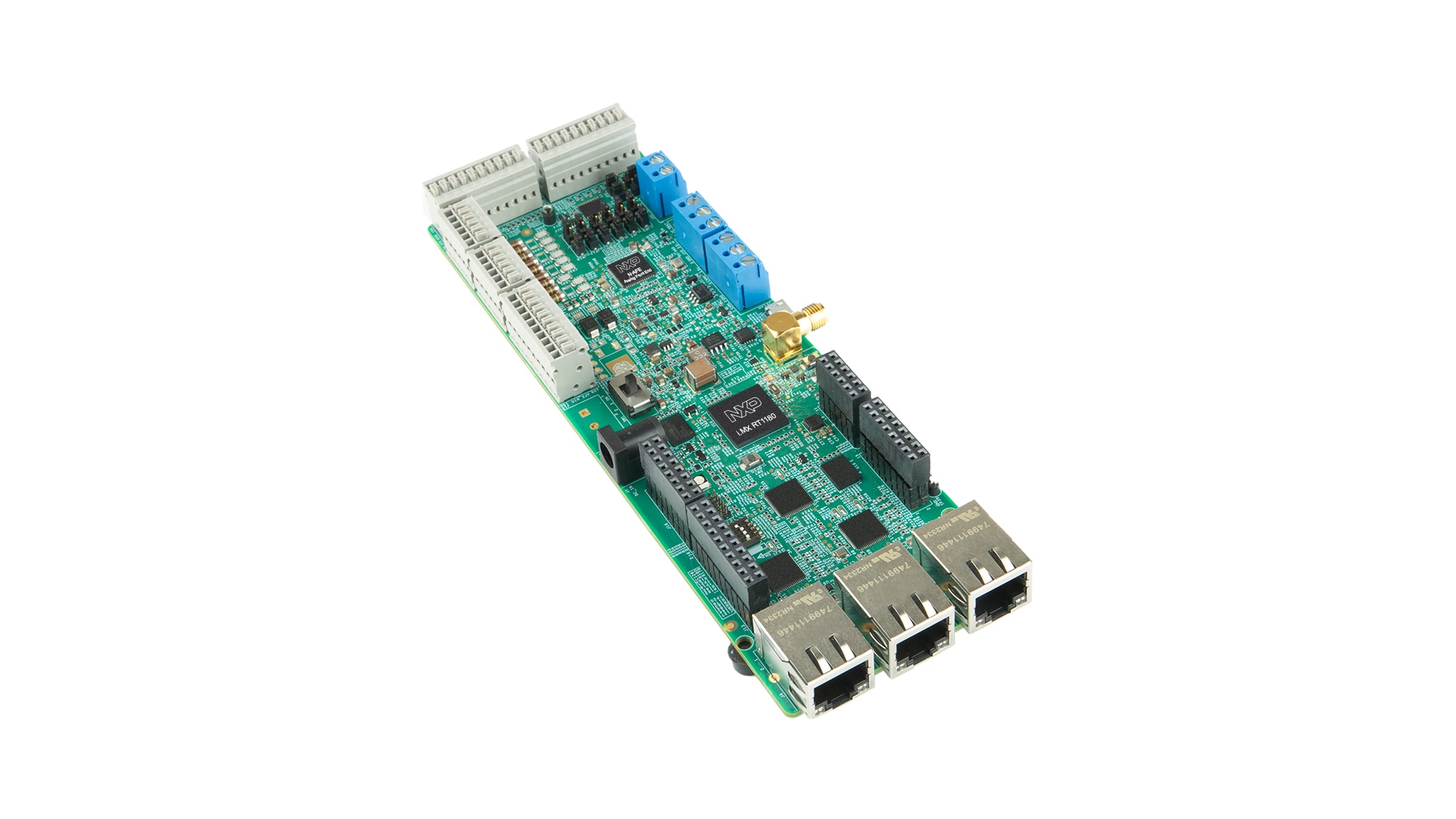

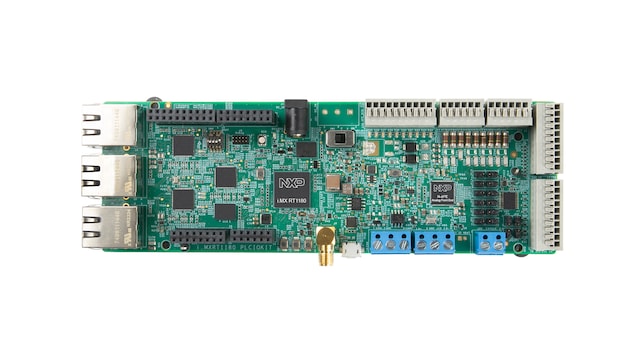

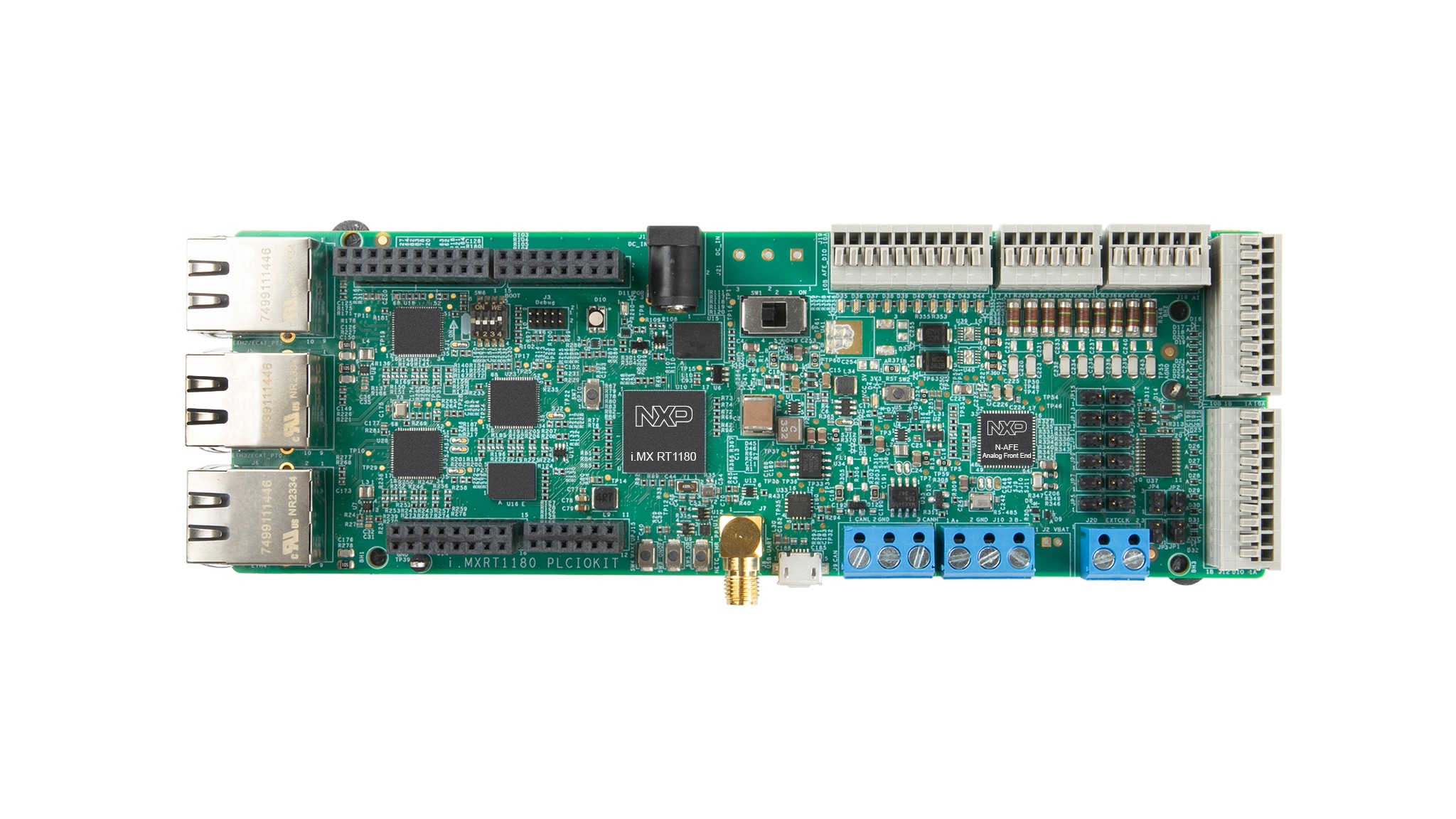

NXP's Remote I/O Platform (RIOP) accelerates industrial automation by delivering flexible, high-precision data acquisition and secure, multi-protocol connectivity for factory and process control systems. Designed to simplify integration into Industry 4.0 environments, RIOP supports predictive maintenance and helps optimize reliability and operational efficiency.

As a reference platform, it enables Ethernet-connected remote I/O for both analog and digital signals, while supporting leading industrial protocols such as EtherCAT and CAN alongside robust sensor front-ends. This solution is ideal for quick prototyping, lab setups, factory automation and applications requiring functional safety and instrumentation.

框图

选择框图:

Remote I/O Platform Hardware

Remote I/O Platform Hardware Block Diagram

Remote I/O Platform Software

Remote I/O Platform Software Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1180: i.MX RT1180跨界MCU，带TSN交换机和EdgeLock®

模拟及混合信号

模拟前端

  • NAFEx3388: 高度可配置的8通道±25V通用输入模拟前端，带励磁源

Features

High-Precision Analog Input

  • 8x Universal, software-configurable HV analog inputs
  • ±12.5 V Single-ended / ±25 V differential range
  • Overvoltage protection to ±36 V

Industrial Connectivity

  • Multi-protocol support: EtherCAT®, Time Sensitive Networking (TSN), CAN FD, RS485
  • 1 Gbit/s Ethernet endpoint
  • 2x 100 Mb Ethernet switch

Modular and Expandable

  • Arduino and FRDM board compatibility
  • Modular hardware for easy expansion
  • Ready to use libraries

Diagnostics and Safety

  • Built-in self-test and calibration
  • Diagnostics for enhanced anomaly detection, reliability and safety

Environmental Resilience

  • Operating temperature: -40 °C to +125 °C
  • 7.5 kV HBM ESD, IEC61000-4-5 2 kV surge protection
  • Integrated +/-3 °C accurate temperature sensor
  • On-board RTD

Integrated Security

  • EdgeLock Secure Enclave to support IEC 62443, the European Cyber Resilience Act (CRA) and the NIST Cybersecurity Framework (CSF)

购买选项

PLCIOKIT-Image

点击展开

PLCIOKIT
正常供应

Remote I/O Platform.
