FS26安全SBC评估板

KITFS26AEEVM
正常供应

滚动图片以放大

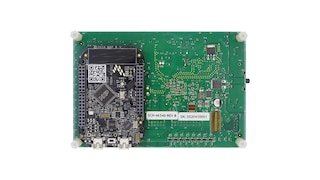

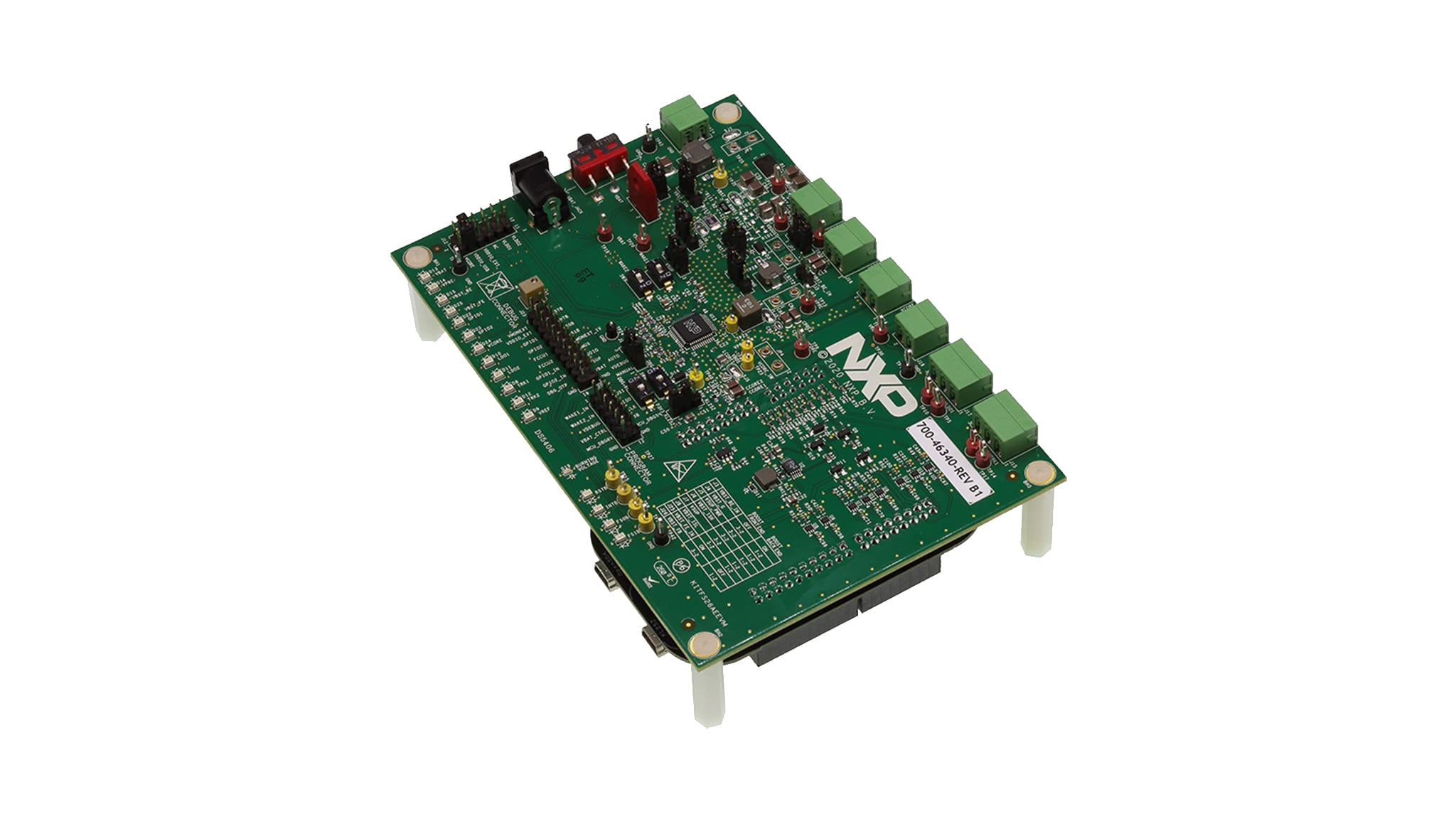

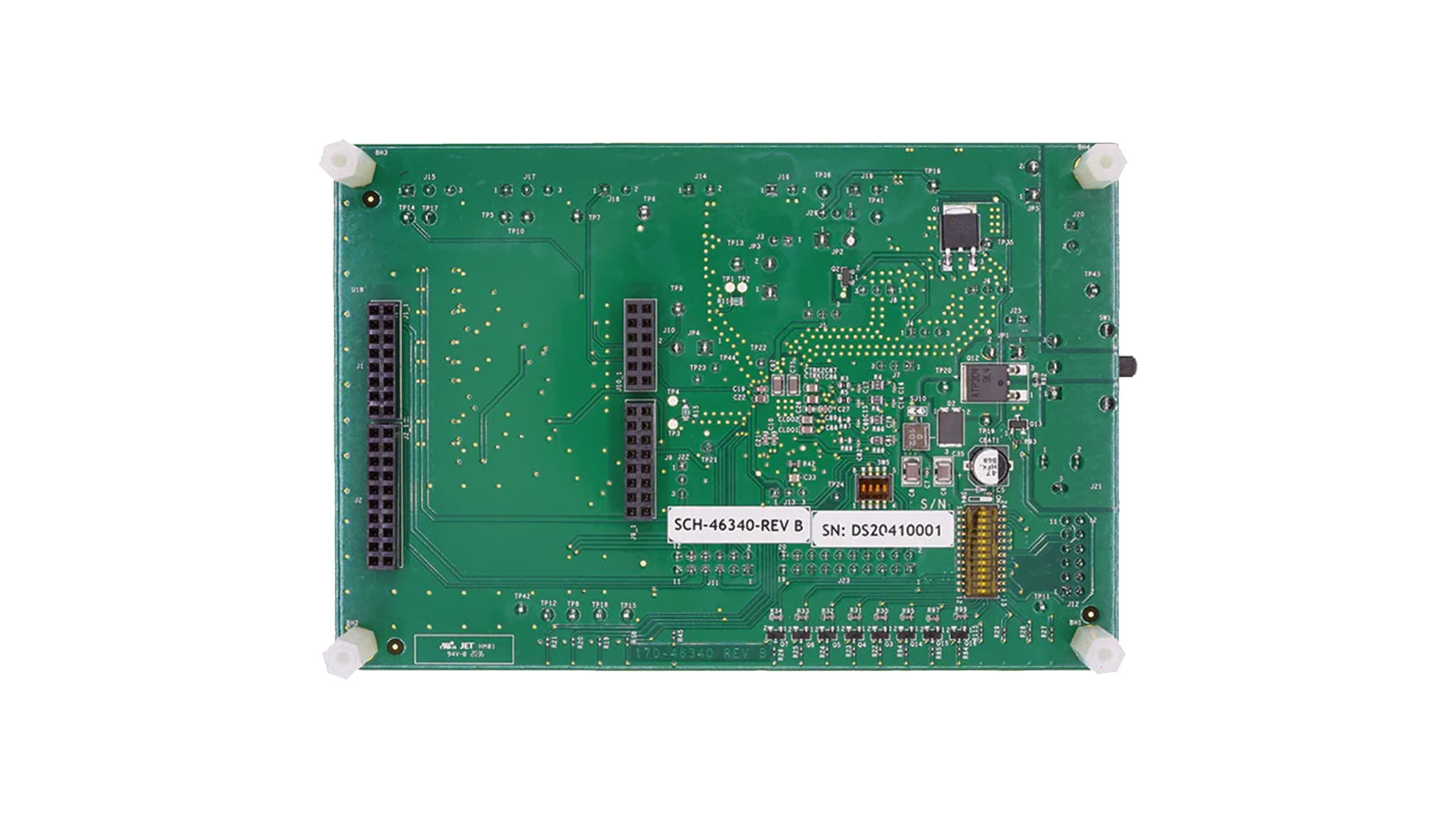

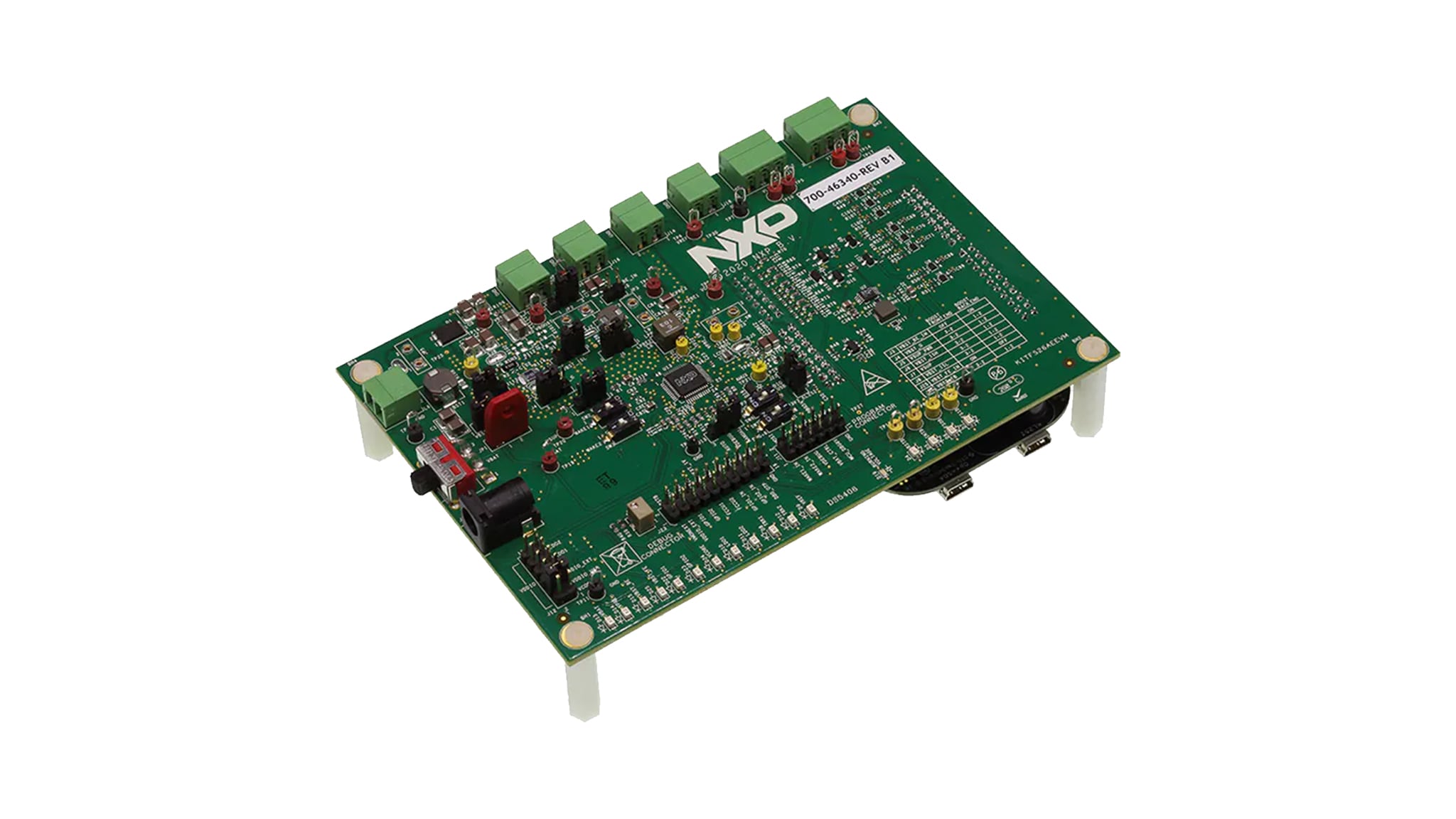

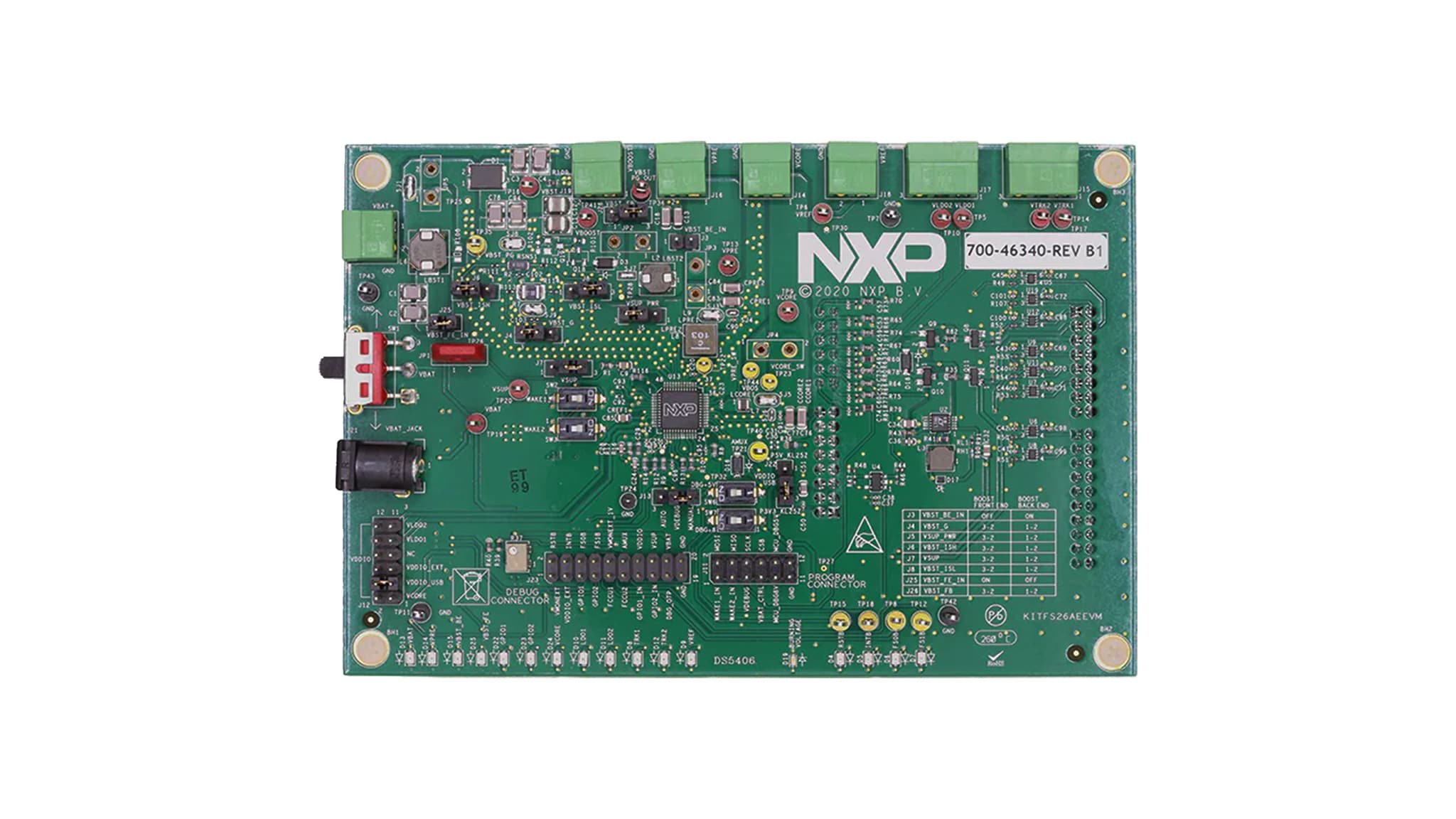

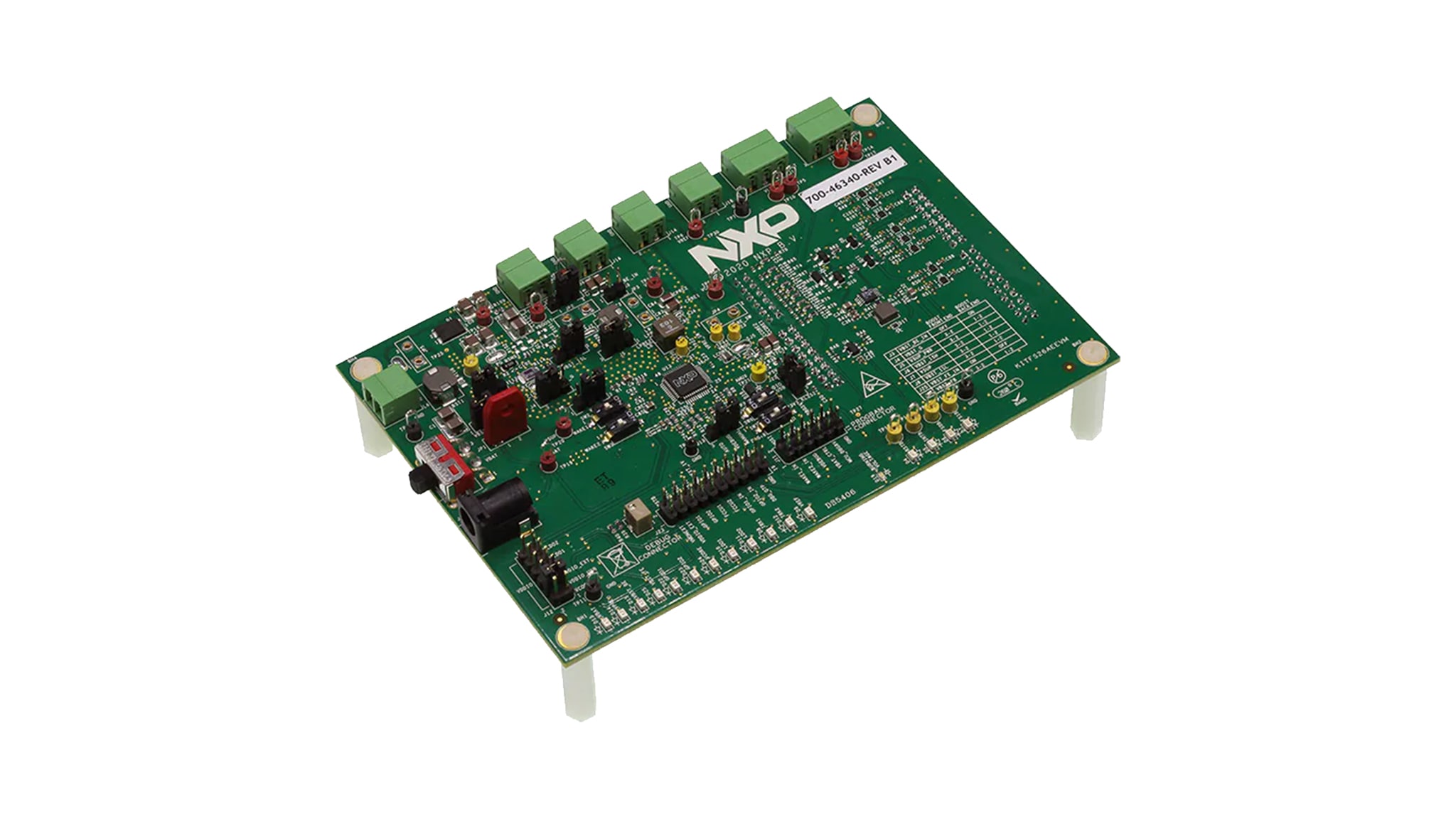

KITFS26AEEVM让客户能够轻松开发FS26系列设备。它面向12V汽车应用。该工具可独立使用，也可通过USB接口控制。SPI命令可通过NXP GUI软件轻松控制。

FS26系列可通过此板进行评估，因为它装有超集零件。焊接在板上的FS26xx部件可以熔合一次，也可以在仿真模式下按需测试多个配置。

支持的器件

电源管理

安全SBC

  • FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统

处理器和微控制器

S32K汽车通用MCU

  • S32K3: S32K3汽车通用微控制器

功能

连接

  • FRDM-KL25Z MCU插拔允许USB连接，以便轻松连接到软件图形用户界面(访问SPI总线、IOS、安全输出、调试、AMUX、调节器)USB连接，用于寄存器访问、OTP仿真和熔丝

电源管理

  • VBAT电源连接器(插孔和Phoenix)
  • VPRE输出电压：3.3V至6.5V，电流为1.5A
  • VBOOST以独立模式或前端拓扑支持电池启动配置文件
  • VCORE输出电压：0.8V至3.3V，电流为1.6A
  • LDO1和LDO2，3.3V或5.0V，高达400mA
  • VTRK1和VTRK2，3.3V或5.0V，高达150mA
  • VREF精度调节器，用于外部ADC参考

通用规格

  • FS0B, FS1b外部安全引脚

支持

  • 调试模式访问
  • 手动或自动OTP熔丝编程。
  • 接头支持轻松接入数字信号

组件

  • 指示信号或稳压器状态的LED
  • 测试外部VMON的模拟可变电阻器

购买选项

KITFS26AEEVM-Image

点击展开

  • KITFS26AEEVM
    正常供应

  • FS26 Safety SBC Evaluation Board.

  • 套件包含：

    • KITFS26AEEVM板

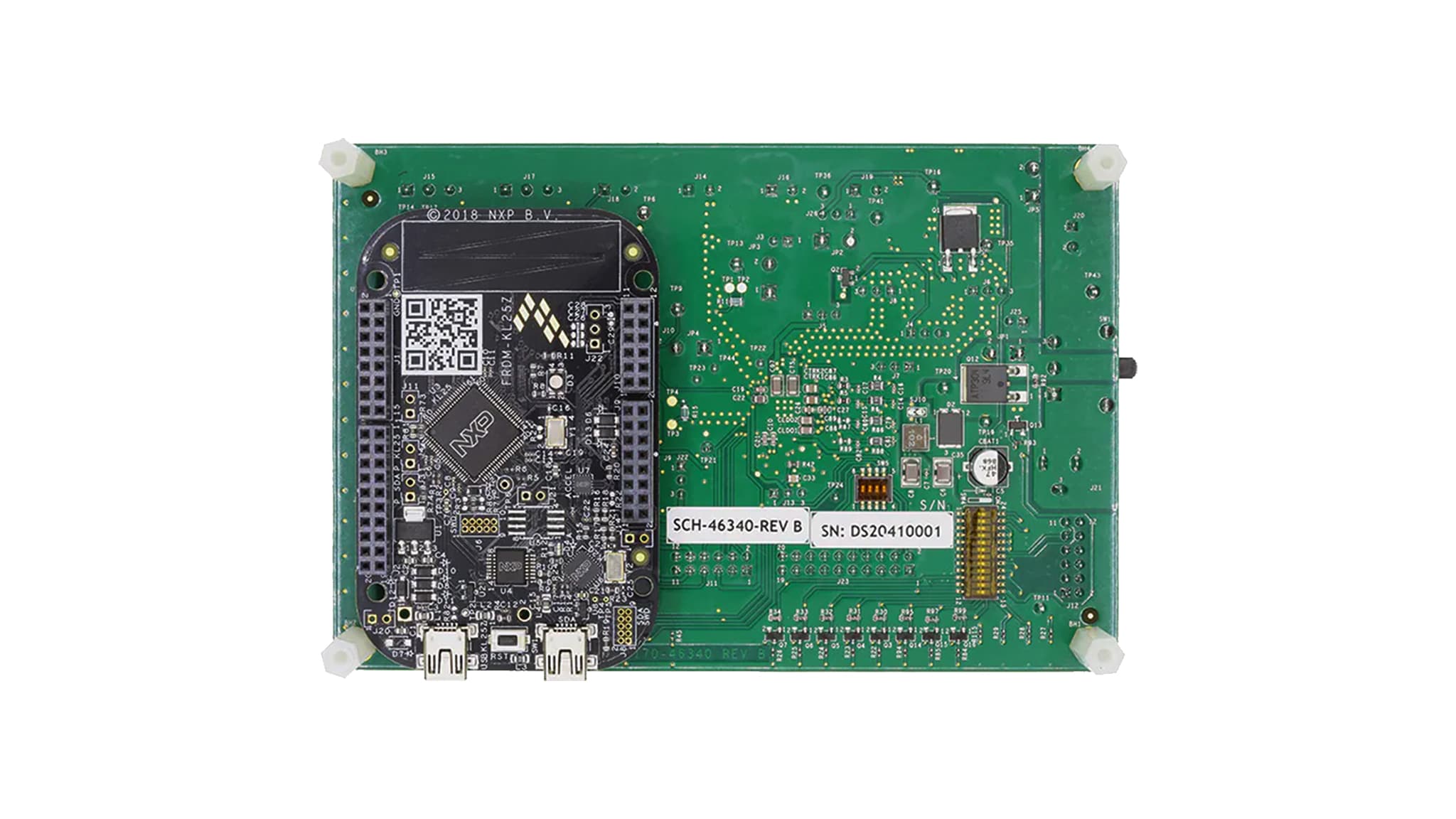

    • FRDM-KL25Z
    • 电源配套连接器
    • USB Mini线缆A型公头/B型公头
  • $324.88 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
