评估套件——33972，带抑制唤醒功能的MSDI

KIT33972AEWEVBE 正常供应

滚动图片以放大

该评估套件采用MC33972A多开关检测接口，该接口具有抑制唤醒功能，旨在检测多达22个开关触点的关闭和开启。开关状态（开启或关闭）会通过一个串行外设接口（SPI）传输至微处理器（MCU）。该器件还具备一个22对1模拟复用器，可将输入读取为模拟值。模拟输入信号经过缓冲，并且在AMUX输出引脚上提供以供MCU读取。33972器件具有两种运行模式：正常和睡眠。正常模式允许对器件进行编程，在监测开关状态变化时，为开关触点提供上拉或下拉电流。睡眠模式提供低静态电流，使33972成为面向需要低睡眠状态电流的汽车和工业控制产品的理想之选。

该评估套件可与KITUSBSPIDGLEVME配合使用。

支持的器件

接口

多开关检测接口

  • MC33972: 带抑制唤醒功能的MSDI

特性

连接

  • 8个可编程输入（电池开关或接地开关）
  • 14个接地开关输入
  • 使用3.3V/5.0V SPI协议可直接与MPU连接

电源管理

  • 设计工作电压范围：5.5V≤VPWR≤26V
  • 开关输入电压范围： -14V至VPWR, 最高40V
  • 可选择湿电流（16mA或2.0mA）
  • 典型待机电流：VPWR=100µA，VDD

购买选项

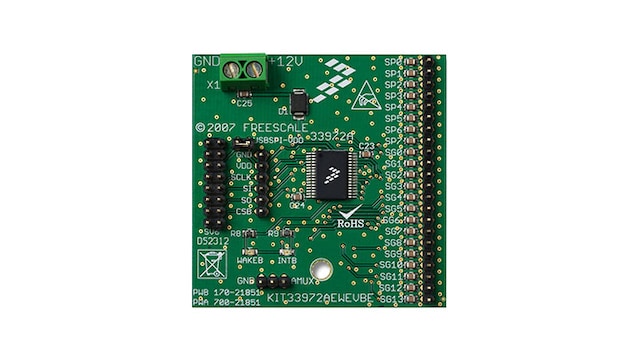

KIT33972AEWEVBE-Image

点击展开

  • KIT33972AEWEVBE
    正常供应

  • Evaluation Kit - MC33972, Multiple Switch Detection Interface with Suppressed Wake-Up.

    • KIT33972AEWEVBE硬件
    • 快速参考指南
  • 数量为 1
