GoldBox 3汽车网络开发平台

GOLDBOX-3

滚动图片以放大

恩智浦GoldBox 3是一款紧凑型、高度优化的参考设计，适用于车载计算器、服务型网关(SoG)、域控制应用、高性能处理、功能安全和信息安全应用。

恩智浦GoldBox 3提供高性能计算能力、实时网络性能、数千兆字节的数据包加速和信息安全以及面向中央网关、域控制器、固件无线升级(FOTA)、安全密钥管理、智能天线的丰富的输入/输出(I/O)和高性能中央计算节点。

GoldBox 3基于S32G-VNP-RDB3，规格不仅适用于客户或项目演示和评估，还适用于车载测试和快速原型制作。

框图

S32G3汽车网络参考设计

S32G3 Vehicle Networking Reference Design 3
获取框图PDF

支持的器件

接口

汽车以太网交换机

  • SJA1110: 集成了100BASE-T1 PHY的多千兆安全TSN以太网交换机

汽车LIN解决方案

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

3.3V/5V IO CAN收发器

  • TJA1043: 具备待机和睡眠模式的高速CAN收发器

CAN信号提升

  • TJA1463: 具有睡眠模式的CAN信号质量提升(SIC)收发器

安全的CAN收发器

  • TJA1153: 具有睡眠模式的安全HS-CAN收发器

电源管理

安全SBC

  • VR5510: 面向S32G处理器的多通道（9通道）PMIC——8个高功率通道、1个低功率通道，满足ASIL D安全等级要求

PMIC

  • PF53: 带AVP和看门狗的12A/8A/15A内核电源稳压器

处理器和微控制器

S32G汽车网络处理器

  • S32G3: S32G3汽车网络处理器

特性

硬件特性

  • 支持服务型网关和域控制器应用
  • 多个网络接口，带有18个CAN/CAN FD和12个以太网端口。
  • 支持低功耗模式和多个唤醒源
  • 支持两个M.2模块（M键插槽、E键插槽）

电源

  • 12V AC-DC适配器

接口

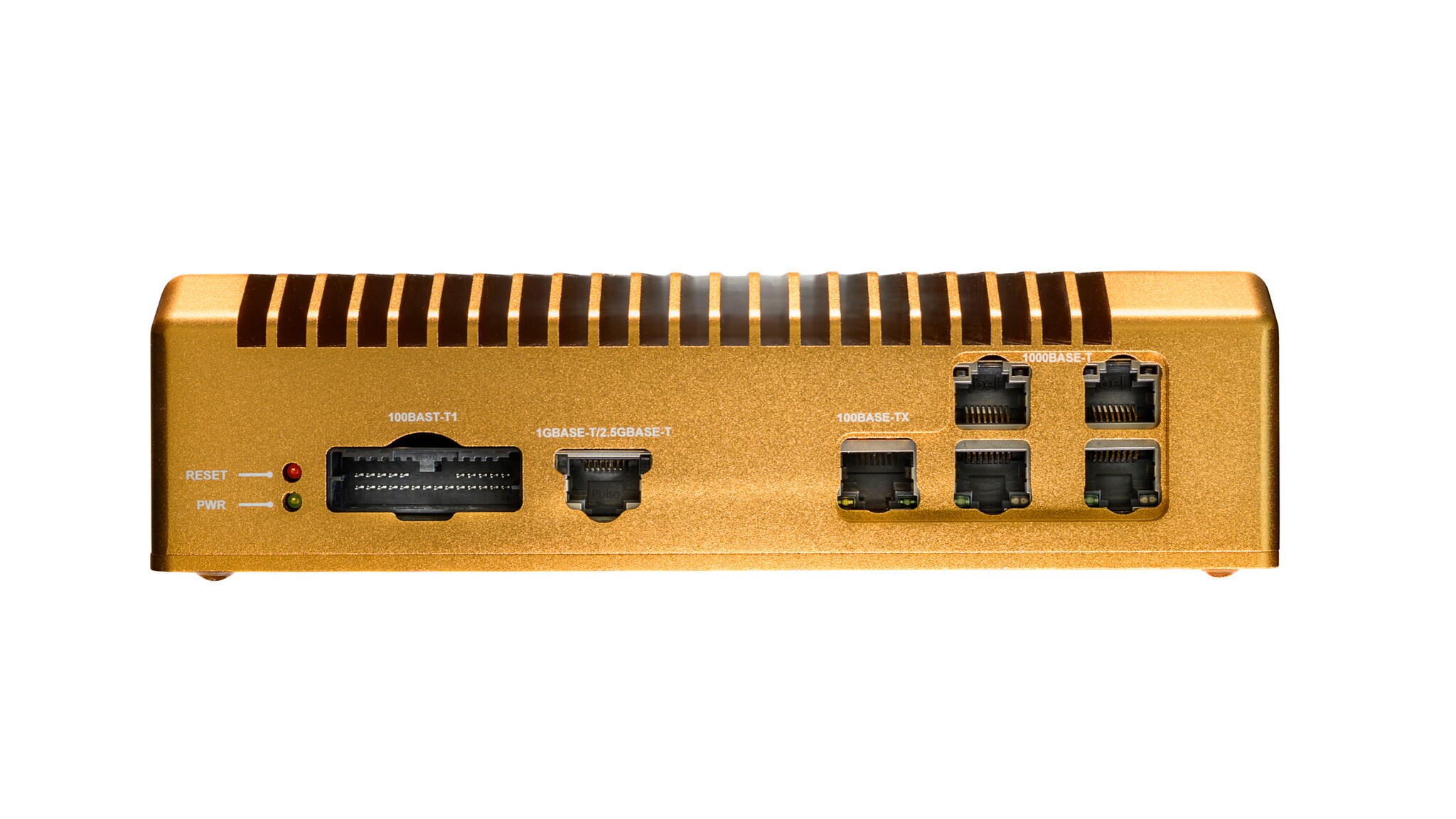

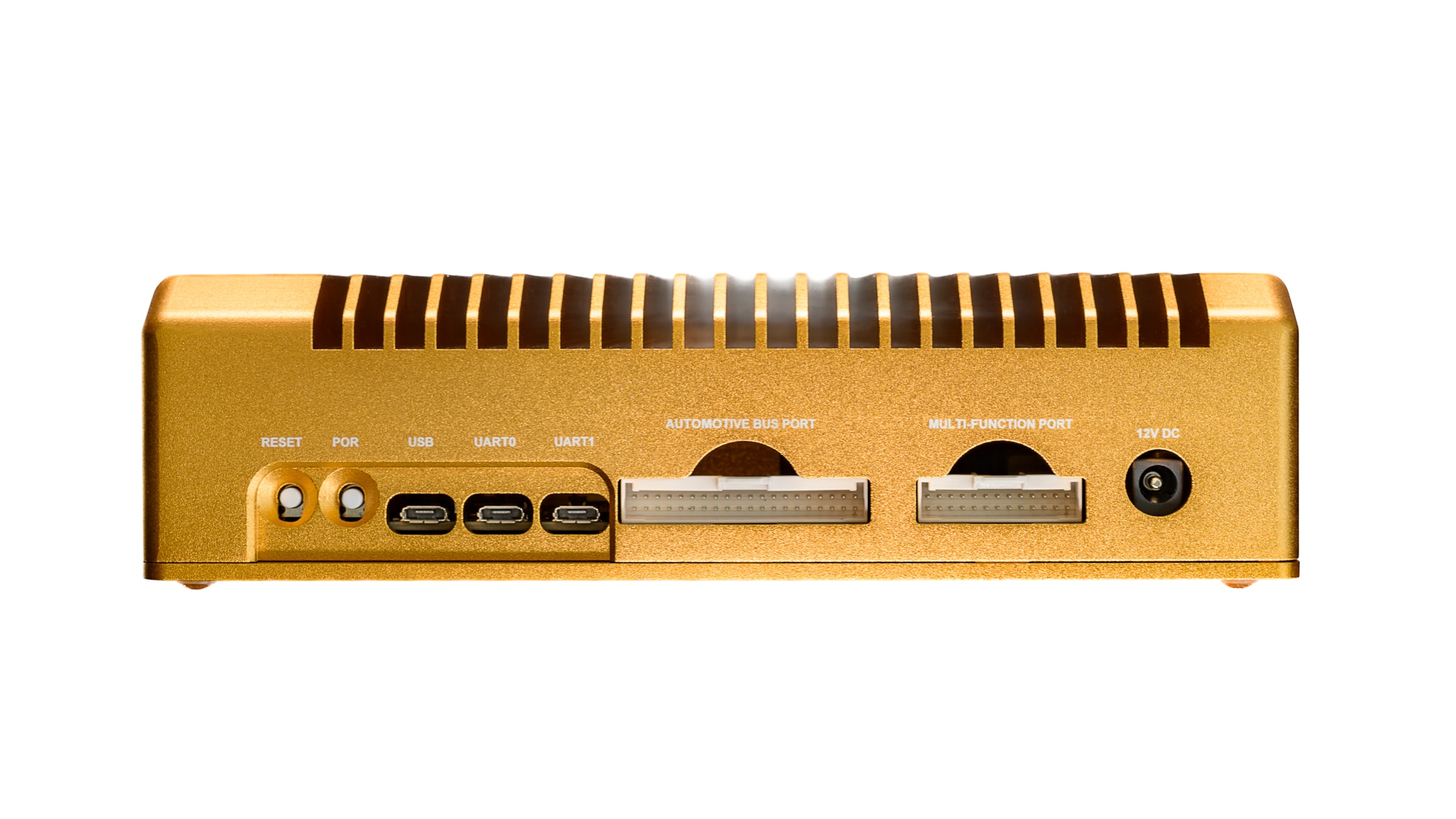

  • LIN, CAN/CAN FD, 100BASE-T1, 1000BASE-T/2.5GBASE-T, 100BASE-TX, 1000BASE-T, FlexRay, USB, PCIe, JTAG, UART, AURORA, M.2插槽

功能安全

  • 使用安全组件和架构，符合ISO26262标准

购买选项

S32G-VNP-GLDBOX3-Image

点击展开

  • S32G-VNP-GLDBOX3
    正常供应

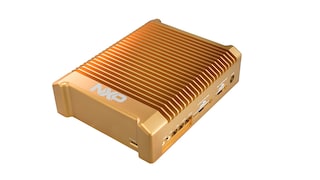

  • GoldBox 3 Vehicle Networking Development Platform.

  • 套件包含

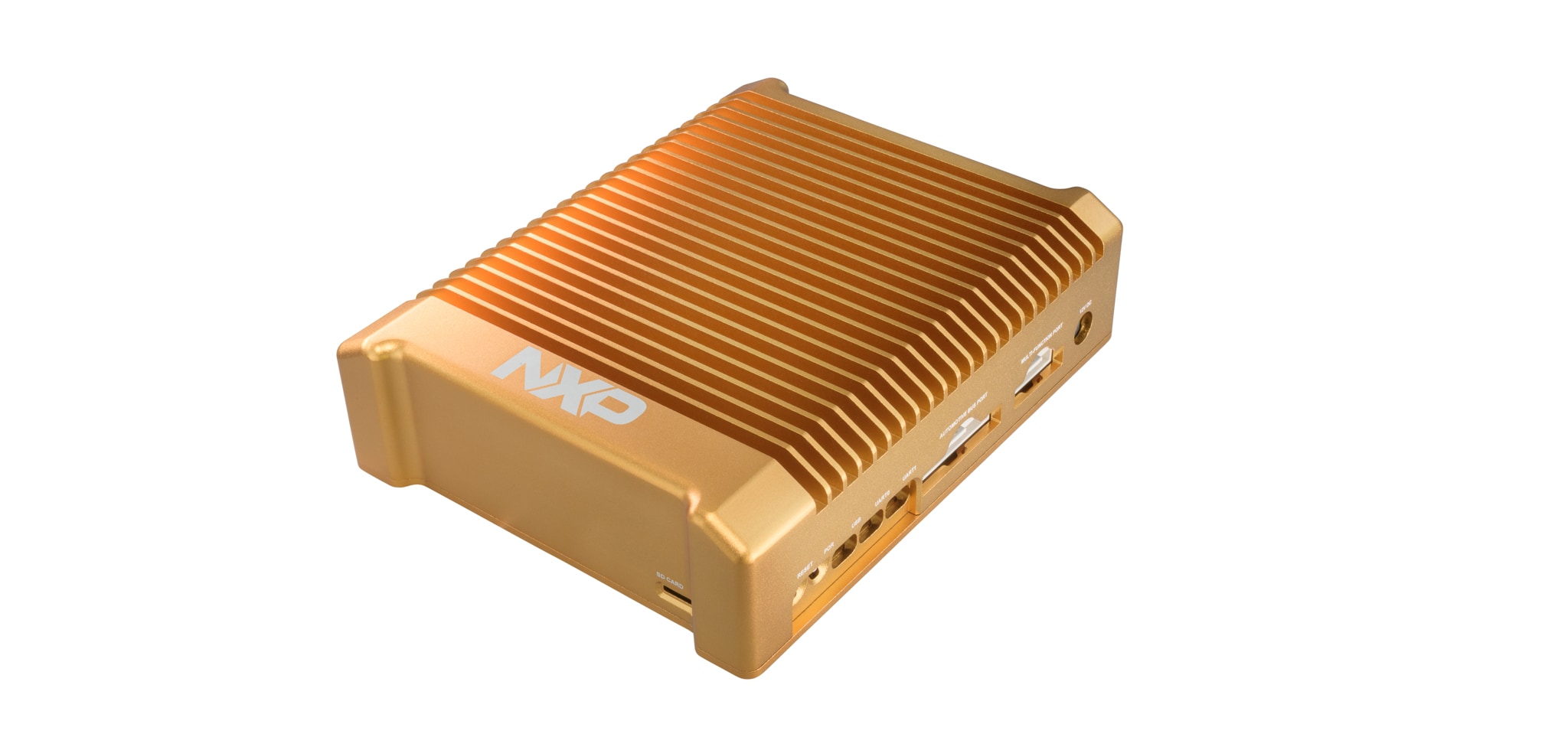

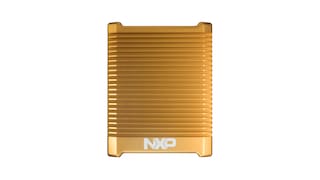

    • 坚固的外壳，内置散热管理功能
    • S32G参考设计板3
    • 通用AC适配器
    • AC/DC 12V 6.67A电源
    • 32GB SD卡
    • DuPont线路
    • (2)USB A转Micro B线缆(UART0/1)
    • CAT6A以太网线缆
    • 以太网环回线缆
    • (3)散热器
    • S32G风扇解决方案
    • 螺钉(M.2插槽)
    • 1.27mm迷你跳线与线缆
  • $3340.00 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
从分销商处购买
