面向HB2001的Freedom平台，搭载10 A H桥、可编程有刷直流电机驱动器

FRDM-HB2001-EVM 正常供应

滚动图片以放大

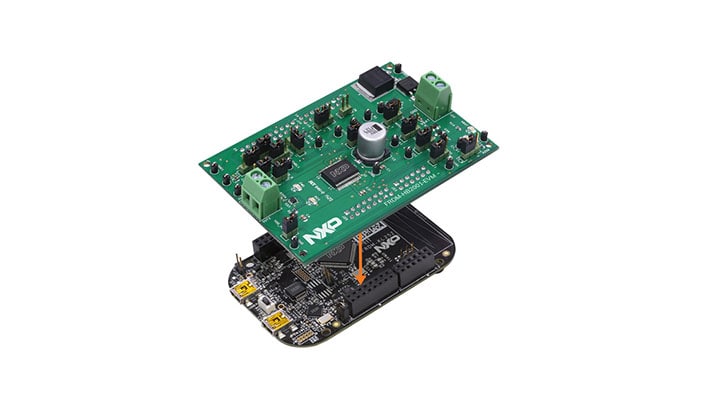

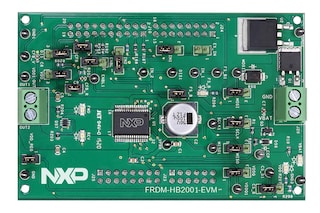

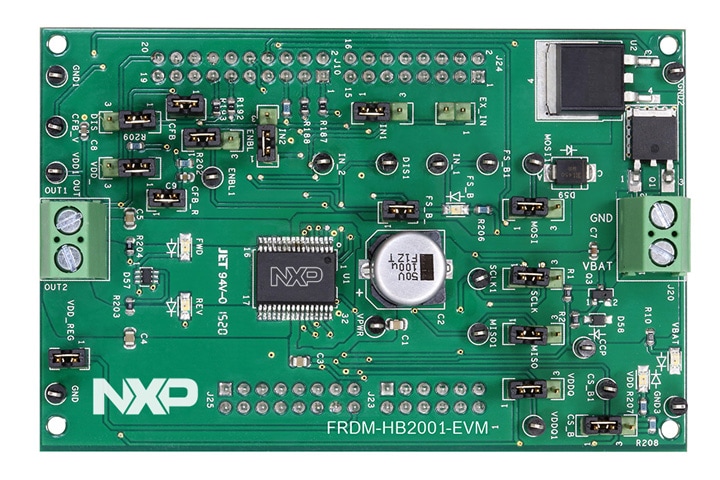

FRDM-HB2001-EVM评估套件(EVM)是一款易用的电路板，可让用户练习使用MC33HB2001 H桥器件的所有功能。可通过实验室设备、任何带有通用IO的MCU，以及连接至PC USB端口的FRDM-KL25Z电路板，轻松控制EVB并行输入。此电路板还支持SPI通信配置、控制以及监控MC33HB2001状态。

支持的器件

电源管理

BLDC，H桥，步进电机

  • HB2001: SPI可编程的10 A H桥有刷直流电机驱动器

特征

电源管理

  • 内置稳压器，提供逻辑电平电路
  • 内置反向电池保护

调试

  • 测试点，允许探测信号
  • 电机控制，提供方向和速度/扭矩控制
  • 瞬态电压抑制器，处理系统级瞬态电压
  • 实时电流监控，实现闭环控制
  • 兼容恩智浦的FRDM-KL25Z平台
  • LED指示电源状态和电机方向
  • 低ESR电容，可降低电源纹波
  • 瞬态电压抑制器，处理系统级瞬态电压

购买选项

FRDM-HB2001-EVM-Image

点击展开

  • FRDM-HB2001-EVM
    正常供应

  • Freedom Expansion Board - HB2001, 10 A H-bridge, Programmable Brushed DC Motor Driver.

    • FRDM-HB2001-EVM
    • FRDM-KL25Z
    • 快速参考卡片
  • $166.75 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
