基于PN7642的Pegoda智能卡读卡器

CLRD730

滚动图片以放大

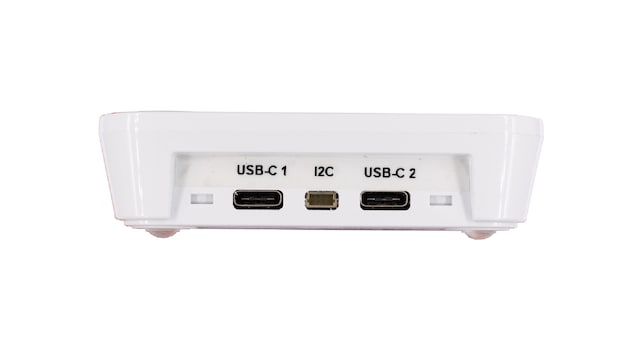

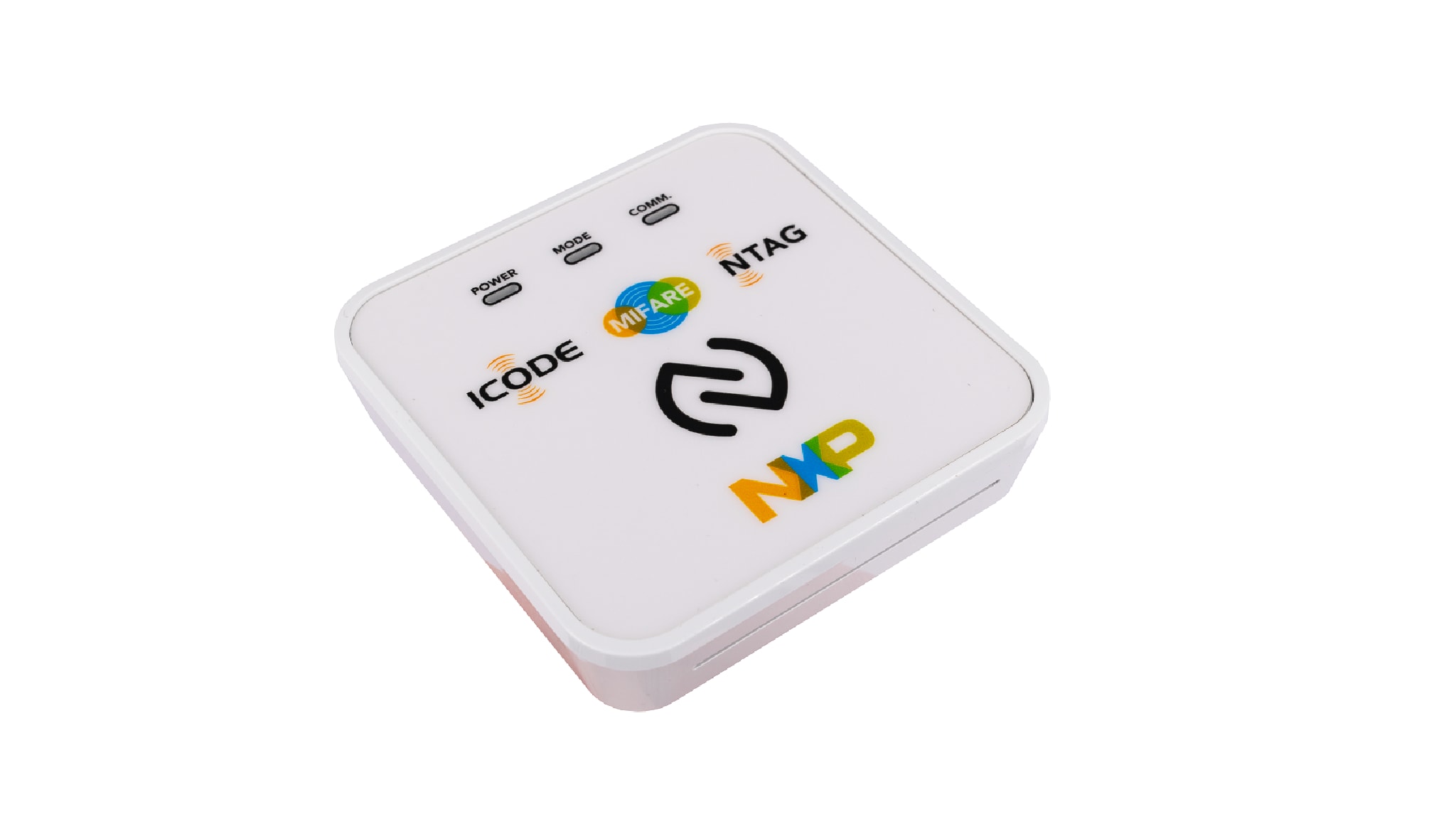

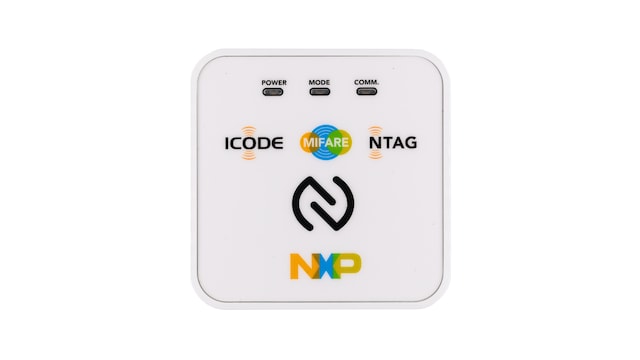

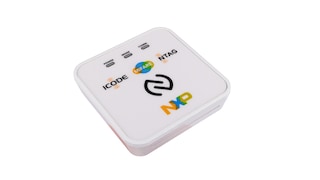

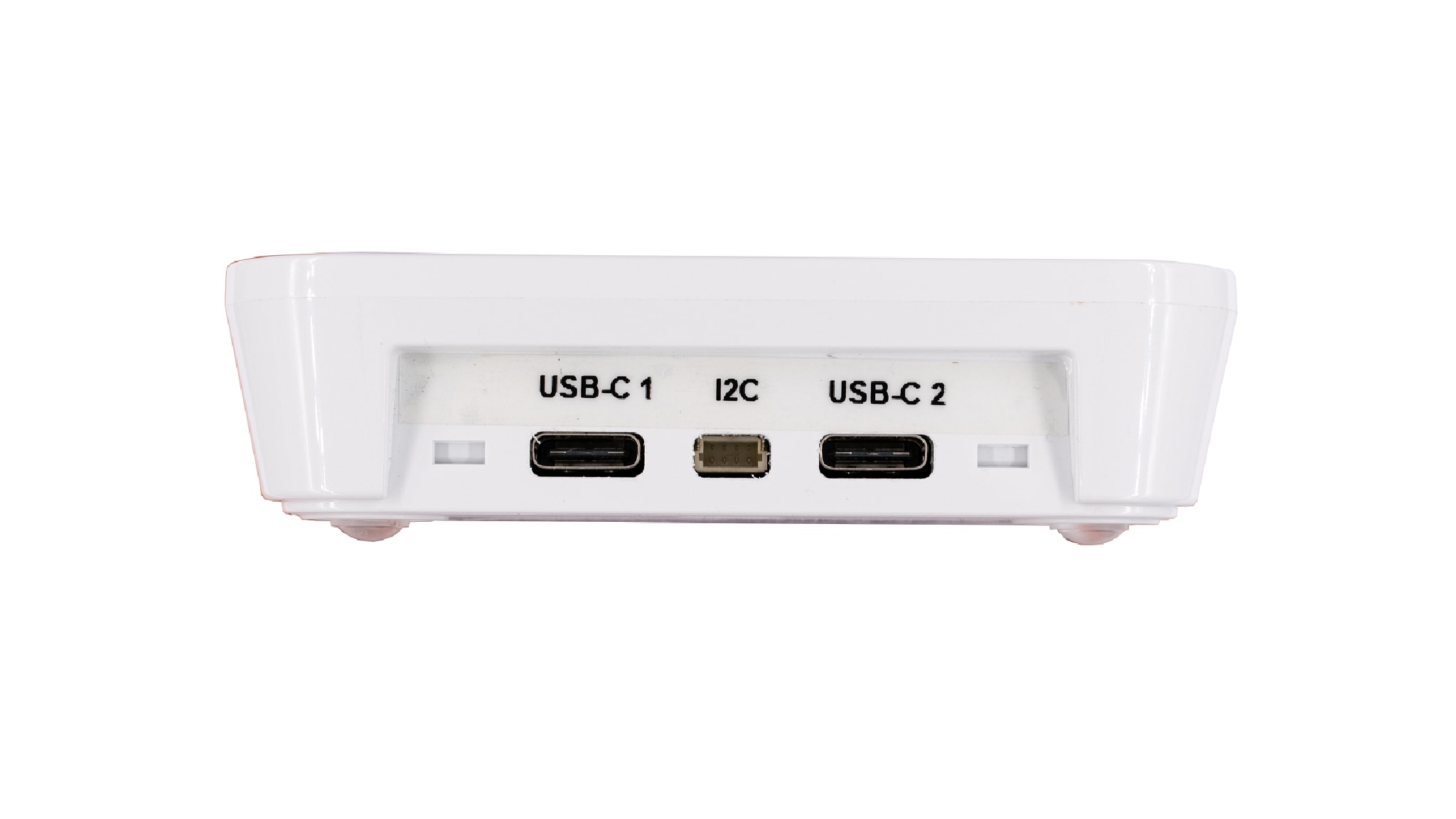

Pegoda CLRD730读卡器是一款基于PN7642 NFC控制器的参考设计和评估读卡器，具有强大的Arm®Cortex®-M33微控制器（MCU）。默认情况下，此读卡器以PC/SC模式(个人电脑/智能卡)交付，可通过USB-C 1端口上的模式按钮切换为VCOM（虚拟COM）模式。安装的驱动程序可将读卡器识别为支持Windows、macOS和Linux的免接触式读卡器和接触式读卡器。USB-C 2电源端口可用于新增外部电源。

该读卡器采用成熟可靠的MIFARE®、NTAG®和ICODE®产品，与RFIDDiscover、Card Test Framework和NFC Cockpit等恩智浦工具兼容。

框图

Pegoda CLRD730

CLRD730 - Pegoda 3 BD
获取框图PDF

支持的器件

RFID

MIFARE Ultralight

  • MF0AESx20: MIFARE Ultralight AES：增强了限定使用的免接触式应用的安全性

特性

一般特性

  • PN7642：一体化全ISO/IEC14443、ISO/IEC15693和NFC（ISO/IEC18000-2）控制器解决方案，支持高数据传输速率
  • MIFARE SAM AV3：支持MIFARE®、NTAG®和ICODE®的最新安全功能
  • USB-C 1：数据端口A，用于通过PC/SC或VCOM模式为Windows、MacOS和Linux供电和通信。
  • 与RFIDDiscover、Card Test Framework和NFC Cockpit等恩智浦工具完全兼容
  • Pegoda RD730固件二进制文件，可随时闪存
  • 基于PN7642和MIFARE SAM AV3的参考设计和评估读卡器，可快速、灵活地开发安全读卡器系统
  • 使用可移植代码快速进行嵌入式开发，通过MIFARE®、NTAG®和ICODE®实现免接触式连接和安全体验
  • 通过支持互联标签的I2C控制器获得接触式体验
  • 在NFC控制器上使用基于闪存的微控制器轻松定制
    注：CLRD730需要PN7642固件v01.00，以避免读取器无法工作

认证

  • CE（LVD、RED）、FCC（第15部分）和EMC合规性声明
  • NFC Form认证
  • 经Arsenal Testhouse认证的MIFARE®免接触式桌面读卡器

购买选项

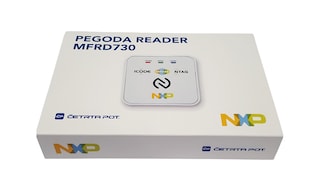

MFEV730-Image

点击展开

  • MFEV730
    正常供应

  • Pegoda Smart Card Reader Based on PN7642.

  • 套件包含：

    • 1个CLR730读卡器
    • 1根USB-C数据线
    • MIFARE®/NTAG®/ICODE®凭证

    白色盒子封装，附标签和说明。

  • $166.11 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 45
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
