800W Bidirectional DC-DC Conversion Solution Based on Programable Digital Signal Controller

BIDIRECTIONAL-RESONANT-DC-DC
正常供应

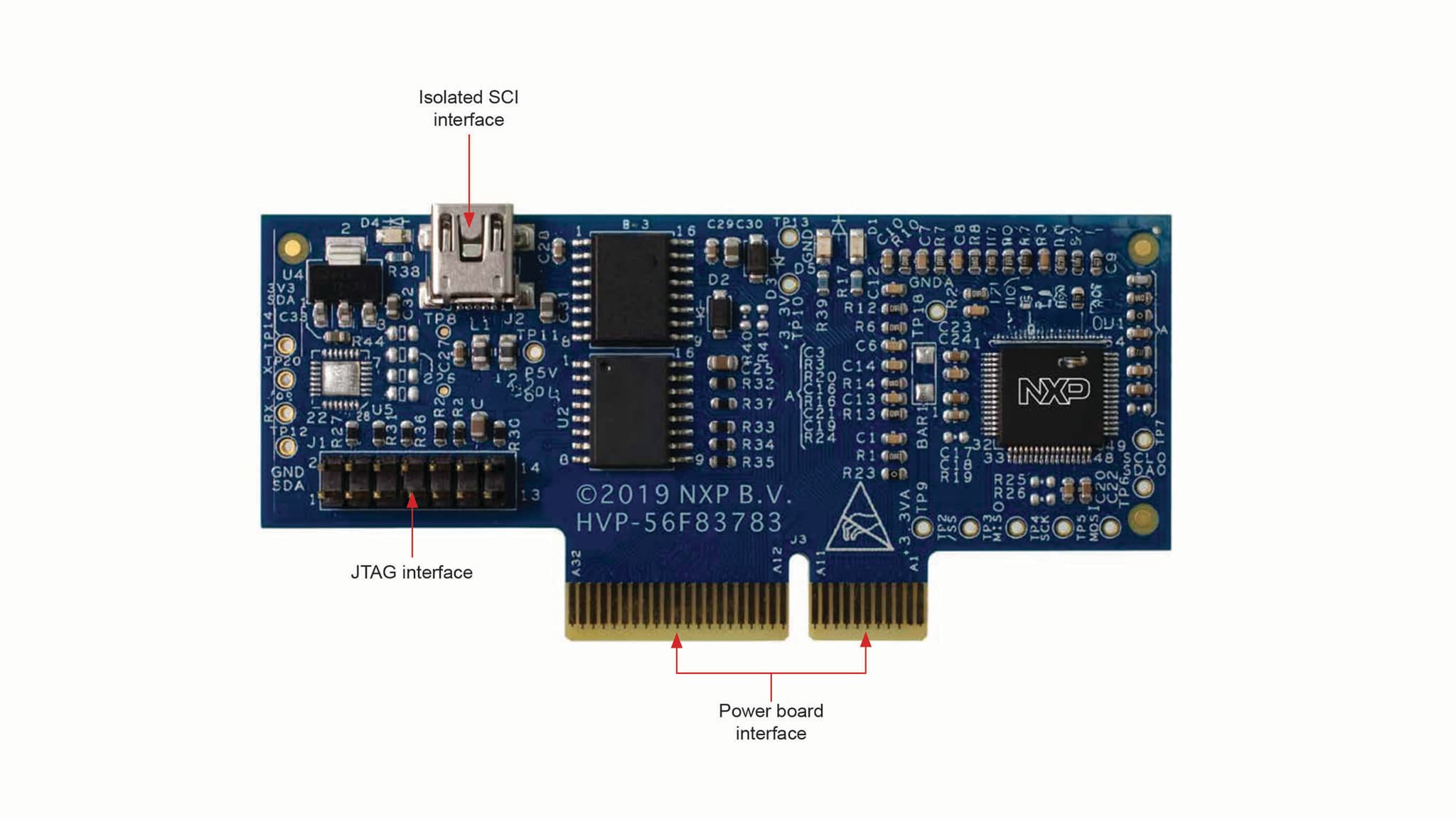

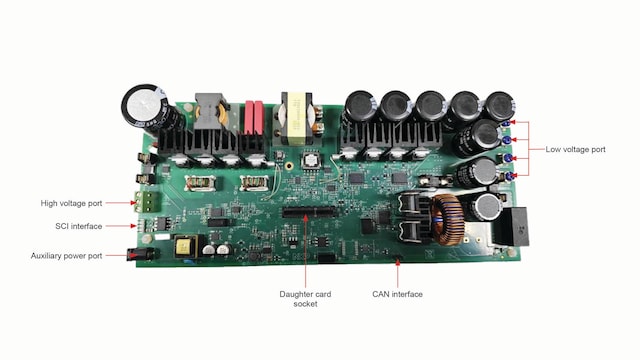

扩展板

滚动图片以放大

This Design is a proof of concept that will help customer designing their own bidirectional DC-DC convertion systems , it has been fully developped , validated and tested. NXP provides all the necessary material to customize this design with schematics, bill of material, firmware, application note, technical training video, user's guide, getting started guide.

框图

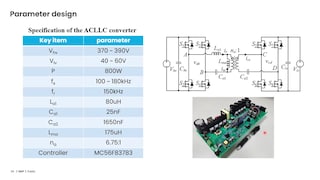

Bidirectional 800w DC-DC Conversion Based on Programable Digital Signal Controller

Bidirectional DC-DC Block Diagram
获取框图PDF

支持的器件

处理器和微控制器

32位56F8xxxx系列

  • MC56F83xxx: 性能级数字信号控制器, USB FS OTG, CAN-FD

通用负载开关

动力和发动机控制

  • GD3100: 面向IGBT和SiC MOSFET的高级高压隔离栅极驱动器

接口

具有灵活数据传输速率的CAN

  • TJA1052IT: 电气隔离的高速CAN收发器

电源管理

带集成电源开关的AC-DC控制器

  • TEA1721AT: 集成功率MOSFET通过高压启动的反激控制器，适用于最高11 W的低功率应用

Features

Key Features

  • Fully programmable Digital Signal Controller based solution
    • Highly optimized libraries, RTCESL, help speed development and improve code execution efficiency
  • CLLC topology to enable bi-directional power conversion
  • Active synchronous rectifier with optimized controller peripherals
  • Hybrid modulation mode of the PFM + PSM + burst mode for wide voltage gain range and high efficiency
  • 2P2Z digital controller enabled by NXP library for fast dynamic response
  • Constant voltage (CV) and constant current (CC) working mode for battery application
  • Modular software and hardware design for convenient internal reuse and customer evaluation
  • Isolated USB interface for the FreeMASTER connection
  • Isolated SCI communication between primary side and secondary side
  • Over-current, over/under-voltage, and over-temperature protection functions
